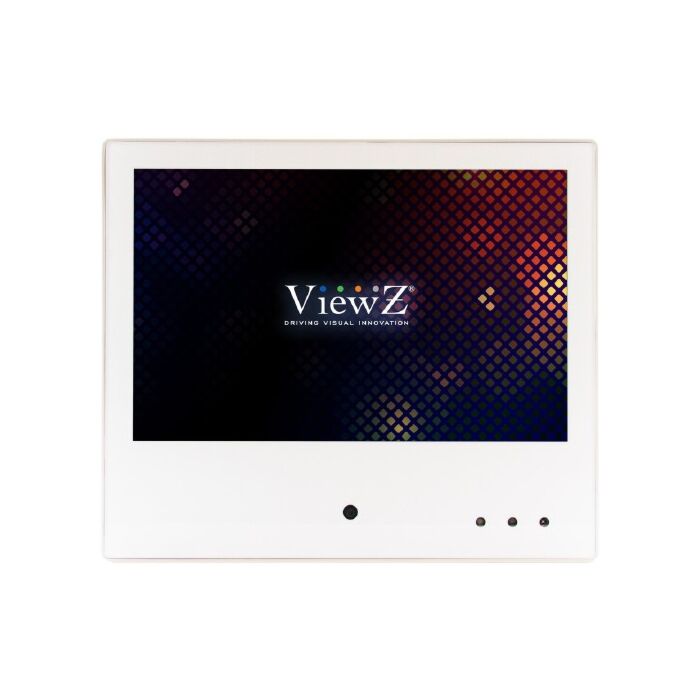

ViewZ VZ-PVM-I1W4 (VZPVMI1W4) 10.1" IP PVM - White

The 10" IP public view monitor from ViewZ boasts and impressive array of features such as PoE power operation, built-in pinhole 2.1MP camera, built-in media player for advertising and industry proven grade "A" commercial panel for 24/7 operation.
SKU
ViewZ VZ-PVM-I1W4

Features:

  • 10" Flat Panel Widescreen LED "A" Commercial-Grade Monitor
  • Enhanced Public View Monitor over IP
  • Powered by PoE
  • HD 1280x800 / 16:9
  • 1080p Pinhole 2.1 Mega Pixel HD D-WDR Camera
  • Motion Sensor and Timed Source Switching between IP Camera and Media Player
  • Flexible Alert Text / Multi-Color Blinking LED
  • Camera and Monitor OSD / Remote Control
  • PIP / PBP
  • Auto Source Switching
  • Auto Power/Source Recovery
  • VESA Wall Mount 75x75
  • PoE 30W
  • MTBF: 50,000 hrs
  • 3-Year Warranty
  • Screen Size 10"
    Max Resolution 1280 x 800 @60Hz
    Pixel Pitch 0.1695mm x 0.1695mm
    Brightness 300cd/m² (Typical)
    Contrast Ratio 1300:1
    Aspect Ratio 16 : 9
    Viewing Angle (H/V) 170°/170°
    Display Color 262K (RGB-6bit)
    Response Time < 25ms
    Frequency (H) 31 ~ 48Khz
    Frequency (V) 56 ~ 60Hz
    RJ-45 for iP Camera & Power 1
    USB / SD Card In (Media Player) 1 / 1
    Multi Display Function PIP / PBP
    Blinking Message "Recording" Yes
    Timed Switching Capabilities between IP Cam & Media Player Yes
    PoE Support Yes
    Keylock Yes
    Multi-Lingual Language English, Spanish, French, German, Italian, Portuguese, Dutch
    Ethernet Interface 10/100Base-T
    Web Client Protocol TCP / IP
    Supported Protocol IHTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP, uPNP, etc, ONVIF, PSIA support
    Outline Dimension 9.88” x 8.42” x 1.37”
    (W x H x D) 261 x 214 x 34.8 mm
    Net Weight / Gross Weight 4.35 lbs ( 1.97 kg ) /6.7 lbs ( 3.03 kg )
    VESA 75mm x 75mm / M4 x 12 Screws
    Sensor Type 1/3" Panasonic 2.1M Progressive C-MOS
    Lens Megapixel Pinhole Lens
    Active Pixels 1920(H) x 1080p(V) 30fps
    Min. Illumination 0.5 Lux@50IRE, F1.2
    Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, AWB, IR SMART
    Video Compression H.264 CBR, VBR support
    Video Out 1ch RJ-45 output
    Motion Detection Support
    Support Protocol IHTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP, uPNP, ONVIF, PSIA
    Ehternet Port 10 / 100 Base-T
    Webclient Connection TCP / IP Protocol
    Dynamic IP Dedicated dynamic IP service using www.ipcctvdns.com
    Support Type Photo, Music, Video
    External Storage Support SD/SDHC CARD | USB 2.0 HOST
    Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
    Video Resolution 1080P @60Hz
    Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
    Image File Format JPEG, TIF, PNG, BMP
    VIDEO Play Control AUTO, REPEAT, ZOOM, RESUME, TIME
    Transmitter - IR Remote Control Yes
    Power - Electrical Ratings P.o.E.
    Power - Consumption 30W
    Warranty - Parts / Labor 3 Year / 3 Year
    Warranty - MTBF (Approx.) 50,000 Hours
    Operating Temperature 32 - 104°F / 0 - 40°C
    Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01
    Compatible Mounts - Ceiling VZ-CM06, VZ-CM18, VZ-CMKiT-01, VZ-CMKiT-02
