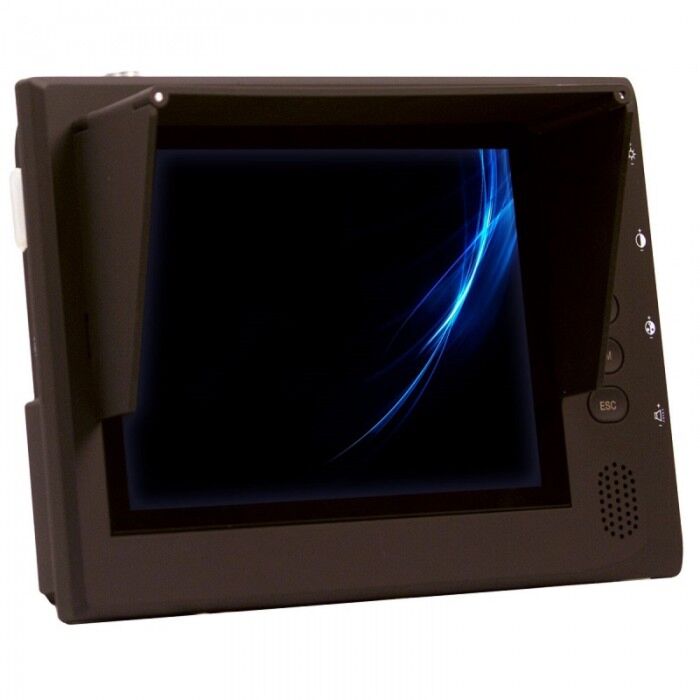

ViewZ VZ-56SM 5.6" ANALOG TEST Monitor

Quick Overview

Save time and money with this handy CCTV camera test monitor.
Overview

Features:

  • 5.6" Black Sunlight Readable LCD Test Monitor
  • 640x480 / 4:3
  • 1 TVI, 1 AHD, 1 BNC, 1 HDMI, 1 VGA and 1 audio Input, Rechargeable Battery
  • NTSC/PAL auto recognition
  • Sun Visor
  • OSD
  • DV 12V Camera Power Out, Audio Support
  • Viewable while inside Protective Case
  • Ni-Mh Rechargeable Batteries
  • 2-Year Warranty
  • Specifications
    Screen Size 5.6"
    Resolution 640 x 480 / 4:3
    Pixel Pitch 0.0588 mm x 0.176 mm
    Brightness 250cd/m²(Typical)
    Contrast ratio 500:1
    Aspect Ratio 4 : 3
    Viewing Angle (H/V) 140°/120°
    Display Color 16.7 Million
    Response Time < 10ms
    Video System NTSC / PAL
    AV (Composite) In 1
    AHD In 1
    TVI In 1
    VGA In 1
    HDMI In 1
    Audio (BNC) In 1
    Power Saving  Low Power Consumption - NI-MH Battery
    Knob Control Yes
    Camera Power Out 12 V DC / 1500mA
    (W x H x D) inch 6.61 x 4.96 x 3.19
    (W x H x D) mm 168 x 126 x 81.2
    Net Weight 2.2 lbs / 1 kg
    Built in speaker 1W x 1
    Power - Electrical Ratings DC 12V (AC100 ~ 240V[50/60Hz])
    Power - Max Consumption 6W (SDI function enabled, no speaker output)
    Warranty - Parts / Labor 2 Year / 2 Year
    Warranty - MTBF (Approx.) 30,000 Hours
    Operating Temperature 32 - 104°F / 0 - 40°C
    Operating Humidity 5 ~ 80% RH
    Working voltage of battery DC 3.4V ~ 4.2V
    Regulation CE
