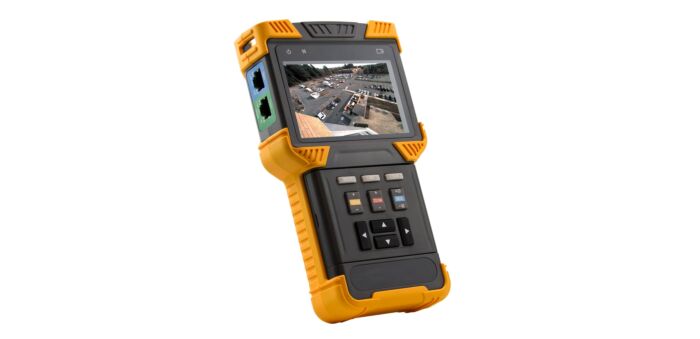

  • ViewZ VZ-40ISM Image 1

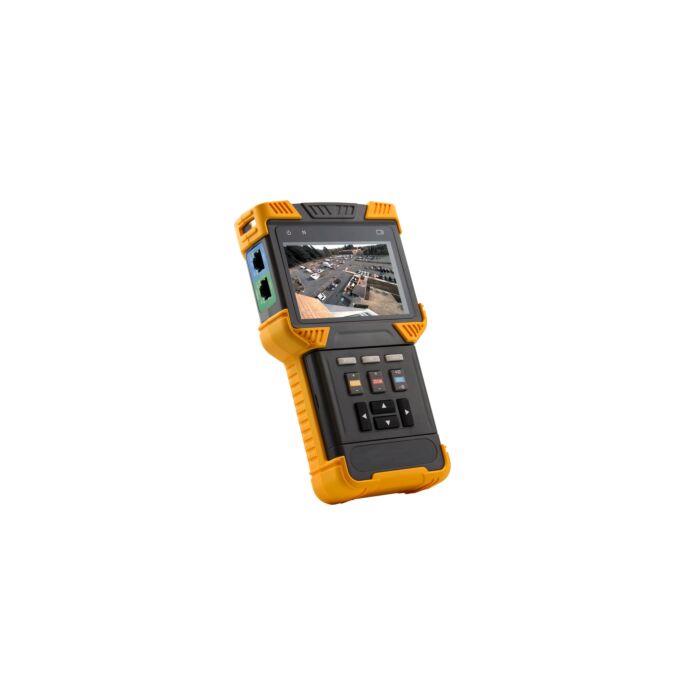

  • ViewZ VZ-40ISM Image 2

ViewZ VZ-40ISM 4" IP TEST Monitor

Quick Overview

Developed for on-site installation and maintenance for both IP and Analog cameras.


  • 4” LED Screen with 800 x 480 Resolution
  • Onvif, RTSP and RTP Support
  • Streamlines the Process of New IP Camera Installation
  • Supports IPC (Internet Protocol Communication) Test such as IP (DHCP, manual IP Setup), IPC, IPC Imaging and Ethernet Test
  • Supports Ethernet 10/100/1G Connection and Packet Loss Test
  • Screen Shot Save, Video Streaming Record and Playback Available
  • Provides Power for One PoE Camera
  • P.o.E. Test - PD & PSE
  • Supports Analog Video Test with NTSC/PAL (1 Vpp)
  • Provides the Ability to Troubleshoot Camera Viewing angle, Focus, Zoom, and Display Setting
  • Supports RS-485 PTZ Control Test
  • Supports more than 30 PTZ protocols such as PELCO-D/P, Panasonic and SAMSUNG
  • Pattern generator, Portability, PoE and DC Power Supply
  • High Capacity Power with Lithium Battery (Avg. 12 hours)
  • Specifications
    Screen Size 4"
    Resolution 800 x 480 @60Hz
    Aspect Ratio 5 : 3
    Display Color 16.7 Million
    BNC In / Out (Active Loop Through) 1 / 1
    Ethernet 10/100/1000 with P.o.E. 2
    Audio In 1
    Mini USB 1
    12V/ 2A Out 1
    RS485 (PTZ Control)
    Power / Reset Button 1 / 1
    POE test PD & PSE test
    Analog Video Test Pattern Generator Generate PAL/NTSC video signal
    Record Playback Support local playback
    Network Analyze Sniff, list, subnet, ping
    Camera Power Out 12V DC
    Multi Language English / Chinese
    Protocol ONVIF, RTSP, RTP
    Ethernet Test  10M/100M/1G Ethernet link test
    *Ethernet loop detection
    *DHCP client and server
    *Ethernet flow monitor
    *Data link quality monitor
    IPC Test  *Find devices, real-time video camera configuration, PTZ test
    *Find ONVIF devices over network
    IPC Imaging Test  *Full-screen preview screen shot and video recording zoom in preview (full screen, 1x, 2x, 4x)
    Connector  *Dual-port RJ45 Ethernet 1Gbps serial connection supported
    PD test *802.3at; power supply voltage measurement
    PSE Test *PSE.802.3at;25.5W max
    *PD actual power measurement
    Communication interface *RS485
    Communication protocol *Pelco-D/P, Samsung, Panasonic, Lilin and Over 30 Protocols
    Baud Rate *150,300,600,1200,2400,4800,9600,19200bps
    Protocol code capture *Receive and display RS485 data sent from controlling device
    Video format *NTSC/PAL Auto Detect
    Video signal *1Vpp
    Display adjustment *Video display brightness, contrast, color saturation is adjustable
    Video digital zoom *Supports full screen/1x/2x/4x, screen shot, recording (h.264)
    Video signal generator *Generates PAL/NTSC format graphic
    (W x H x D) inch 4.52 x 7.48 x 1.47
    (W x H x D) mm  115 x 190 × 37.5
    Net Weight 9.47 lbs / 4.3 Kg
    Built in speaker 1W x 1
    Internal Storage 8GB TF Card (1GB for System Reserved)
    Playback Video Format AVI (IP Source)
    H.264 (Analog Source)
    Screenshot Image Format JPEG
    Recording Time Video with D1 (0.7mbps) - Up to 22 hours
    Video with 720P (1.8mbps ) - Up to 8.6 hours
    Video with 1080P (4 mbps) - Up to 3.8 hours
    Battery - Capacity 7.4V 22.2Wh
    Battery - Type Replaceable Lithium Polymer Battery
    Battery - Operation Time 10 ~ 12 Hours
    Operating Temperature -4 ~ 158°F / -20 ~ 70°C
    LED Indicator 35lm LED x 2 - Auxiliary Lighting
    P.o.E. Injector PoE Power Injector - 48V/15W Output
    AC100~230v 50~60Hz Input
    Power Charging POE Charging, Max Power 10W
    Full Charging Time - 3 to 4 Hours
    Power Saving Mode Working, Standby & Shutdown
    Automatic Standby Adjustable Time Internval - 5 to 60 Minutes
    Operating Temperature -4 ~ 158°F / -20 ~ 70°C
    Operating Humidity 30% ~ 90%
    Warranty - Parts / Labor 2 Year / 2 Year
    Warranty - MTBF (Approx.) 30,000 Hours
    Regulation CE, FCC
    Operation Power Button, Surface Keyboard with 12 Keys, QWERTY Swing Keyboard with 45 Keys
    Package Include VZ-40ISM x 1, BNC Cable x 1, Battery x 1, RS485 Test Cable x 1, Audio Test Cable x 1, Audio Cable x 1, 110V Power Cable x 1, Ethernet Cable x 1, PoE Power Injector x 1, 12V Power Output Cable x1, Lanyard x 1, Tool Bag x 1, User Manual x 1
