ViewZ VZ-32IPM (VZ32IPM) Full HD LED IP Input Monitor

Upgrade your surveillance setup with the ViewZ VZ-32IPM Full HD LED IP Input Monitor. With Android OS and Ethernet connectivity, achieve seamless remote viewing and precise visual inspection. Enhance your industrial surveillance today!
SKU
VZ-32IPM

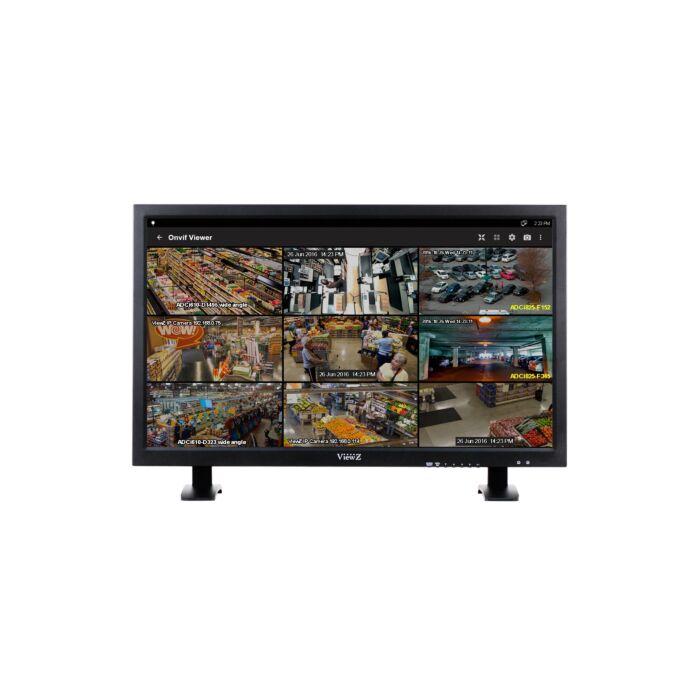

ViewZ VZ-32IPM Full HD LED IP Input Monitor

The ViewZ VZ-32IPM Full HD LED IP Input Monitor is a cutting-edge solution tailored for industrial and machine vision applications. With its 32-inch Full HD LED display, this monitor offers impeccable image quality and clarity, essential for precise visual inspection tasks. Equipped with an Android OS, users can easily install compatible apps, eliminating the need for a client PC. Its Ethernet connectivity ensures seamless integration into existing networks, providing remote viewing capabilities without compromising on performance.

Featuring a built-in ViewZ app, this monitor supports sequential and 9-channel viewing modes, accommodating various surveillance setups efficiently. It boasts compatibility with over 8,000 IP camera models, offering flexibility and scalability in surveillance solutions. Additionally, the monitor's 24/7 operability ensures continuous monitoring without interruption, enhancing security and productivity in industrial environments.

Features:

  • 32-inch Full HD LED display
  • Android OS for easy app installation
  • Ethernet connectivity for remote viewing
  • Built-in ViewZ app supporting sequential and 9-channel viewing modes
  • 24/7 operability for continuous monitoring

Applications:

  • Industrial inspection and quality control
  • Surveillance monitoring in industrial environments
  • Integration into machine vision systems
  • Monitoring manufacturing processes
  • Precision visual inspection tasks

Screen Size 32"
Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.36375mm x 0.36375mm
Brightness 350cd/m²(Typical)
Contrast ratio 3000:1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 12ms
Video System NTSC / PAL
Frequency (H) 31 ~ 80Khz
Frequency (V) 56 ~ 75Hz
Ethernet 10/100 1
USB 2.0 2
Micro USB 1
PGM (Manufacture Only) 1
Micro SD 1
Android OS Ver. 5.1.1.
CPU RK3368 64bit Octa core Cortex A53
RAM 2 GB DDR3
Storage 8GB (NAND-Flash)
External Storage Micro SD up to 32GB / USB 2.0 up to 2TB
Support Video File Format (up to 1080p) MKV, WMV/VC-1 SP/MP/AP, MPG, MPEF, dat, AVI, MOV, MP4, RM, H.264/H.265, RV 8/9/10
Support Video Codec H.264, MPEG4, RMVB, Xvid, Divx, H.263, H.264, VP8, WMV, HTML, Flash
Support Image File Format jpg, JPEG, MJPEG, PNG
Sequential Viewing Mode Basic ViewZ App support
9CH Vieing Mode Basic ViewZ App support
Outline Dimension (WxHxD) 29.66" x 19.12 " x 7.09" - 753.4mm x 485.7mm x 180mm
Net Weight / Gross Weight 33.07 lbs (15 kg) / 38.14 lbs (17.3 kg)
VESA 200mm x 200mm / 4 x (M6 x 8) Screws
Transmitter - IR Remote Control Yes
Power - Electrical Ratings Consumption AC100 - 240V(50/60Hz) 55W
Warranty - Parts / Labor 3 Year / 3 Year
Warranty - MTBF (Approx.) 50,000 Hours
Operating Temperature 32 - 104°F / 0 - 60°C
Multi-lingual Language English, German, French, Italian, Spanish, Portuguese, Netherlander, Russian
Compatible Mounts - Wall VZ-AM02-A, VZ-WM50
Compatible Mounts - Ceiling VZ-CM06, VZ-CM18, VZ-CMKiT-01, VZ-CMKit-02
