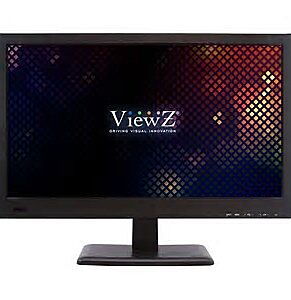

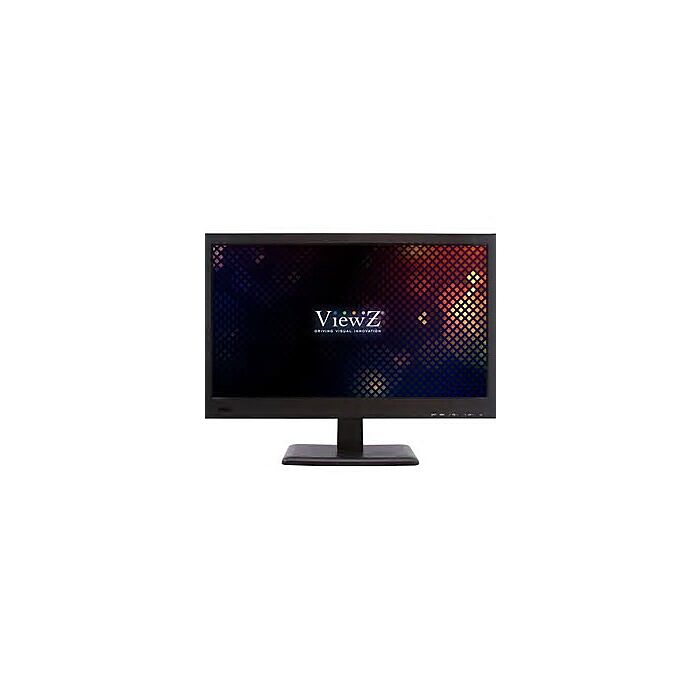

ViewZ VZ-22CMP (VZ22CMP) 21.5" LED CCTV Monitor
ViewZ VZ-22CMP 21.5" LED CCTV Monitor: Enhance Your Industrial Vision Systems
Enhance your industrial and machine vision applications with the ViewZ VZ-22CMP 21.5" LED CCTV Monitor. This commercial-grade monitor boasts a 21.5" widescreen LED display with a resolution of 1600 x 900, offering crisp and clear visuals for precise monitoring. Equipped with 2 BNC inputs, 1 BNC output, HDMI, and VGA connectivity, this monitor ensures seamless integration with various video sources commonly used in industrial settings. The inclusion of a 3D comb filter and de-interlace function enhances image quality, making it ideal for intricate machine vision tasks that demand accuracy.
With a wide viewing angle of 170°/160°, this monitor provides excellent visibility from multiple vantage points, crucial for collaborative work environments. Its robust design and auto source selection feature ensure reliability and ease of use in demanding industrial environments. Additionally, the multi-language OSD accommodates diverse user preferences. Whether you're inspecting manufacturing processes, monitoring production lines, or conducting quality control checks, the ViewZ VZ-22CMP is the perfect companion for your industrial vision systems.
Features:
- High-definition 21.5" LED display
- Multiple connectivity options including HDMI and BNC inputs
- Wide viewing angle for versatile viewing positions
- Robust design suitable for industrial environments
- Multi-language OSD for user convenience
Applications:
- Quality control
- Manufacturing inspection
- Production line monitoring
| Screen Size | 21.5" |
| Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.2482mm x 0.2482mm |
| Brightness | 250cd/m²(Typical) |
| Contrast ratio | 1000:1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/160° |
| Display Color | 16.7 Million |
| Response Time | < 5ms |
| Frequency (H) | 30 ~ 80Khz |
| Frequency (V) | 50 ~ 75Hz |
| AV (Composite) In / Out | 2 / 1 |
| RGB In (15pin D-Sub) | 1 |
| DVI in | 1 |
| HDMI In | 1 |
| Audio In/Out | 1 / 1 |
| Built-in Speakers | 2.5 W x 2 |
| Multi-lingual Language | English, Spanish, French, Korean, German, Italian |
| Outline Dimension | 20.23” x 15.1” x 1.61” |
| (W x H x D) | (513.96 mm x 383.69 mm x 41 mm) |
| Net Weight | 7.71 lbs ( 3.5kg ) |
| Gross Weight | 9.03 lbs ( 4.1kg ) |
| VESA | 75mm x 75mm, (M4 x 10 Screws) |
| Transmitter - IR Remote Control | Yes |
| Power - Electrical Ratings | DC12V, 3.0A (AC100 ~ 240V[50/60Hz]) |
| Power - Consumption | 18W |
| Warranty - Parts / Labor | 3 Year / 3 Year |
| Warranty - MTBF (Approx.) | 50,000 Hours |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Compatible Mounts - Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
