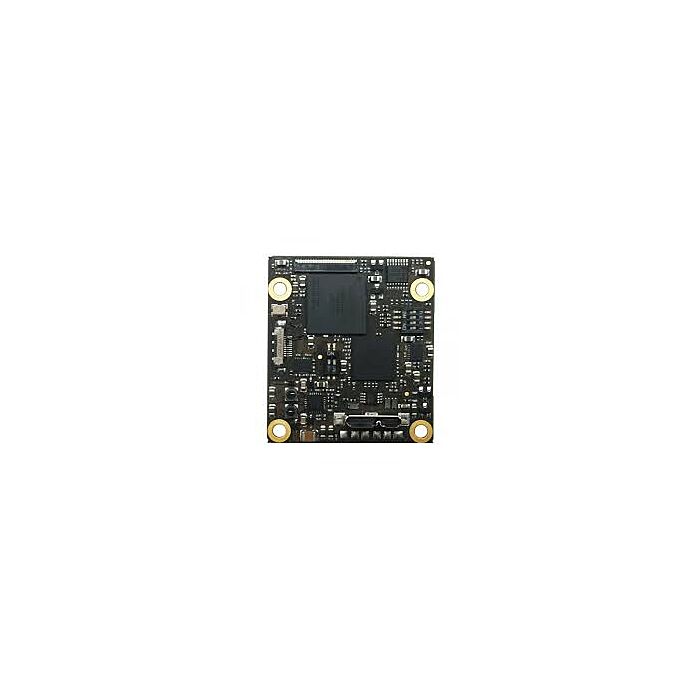

  • USB3.0-EH-EV-GM USB 3 Interface Board Omage 1

Aegis USB3.0-EH-EV-GM for Sony FCB-EH and FCB-EV Series of HD Block Cameras

Quick Overview

USB 3.0 Interface Board for Sony FCB-EV, FCB-EH, FCB-H and FCB-SE Series of HD block cameras.
Overview

The Aegis USB3.0-EH-EV-GM is a small form factor module for formatting and converting generic digital video streams to standard compliant formats. Different interface standards are supported from the transmitter side including DVI/HDMI, VGA, 3G-SDI, HD-SDI, SDI, CVBS and USB. Supported physical media are copper and fiber cables.

Connect to the digital video interface of Sony’s FCB-EV, FCB-EH, FCB-H and FCB-SE block cameras and support several progressive and interlace HDTV or SDTV formats. As no analog to digital conversion is done on these modules, excellent output image quality is guaranteed

Features:
    •    Provides a small size, easy to use HDTV USB 3.0 compliant video streaming capture solution
    •    Up to 1080p30 uncompressed HDTV video data, 4:2:2 YUV format
    •    The module receives digital video signals at the input and sends UVC (USB Video Class) compliant data packets containing digital video payload to a connected host computer
    •    Operates always as Super Speed USB3.0 device (Host or OTG operation modes are not supported)
    •    Host computer must run a UVC capable operating system (e.g. Microsoft Windows 7)
    •    Parallel up- and downstream of camera control and status data is possible (USB CDC)
    •    The input supports multiplexed LVDS based video data
    •    LVDS data format provided by FCB-EV, -EH, -SE and FCB-H11 camera blocks
    •    Full USB bus powered camera solution possible depending on camera
    •    Power supply voltage for camera is generated onboard

Specifications
No Video available
USB3.0-EH-EV-GM
