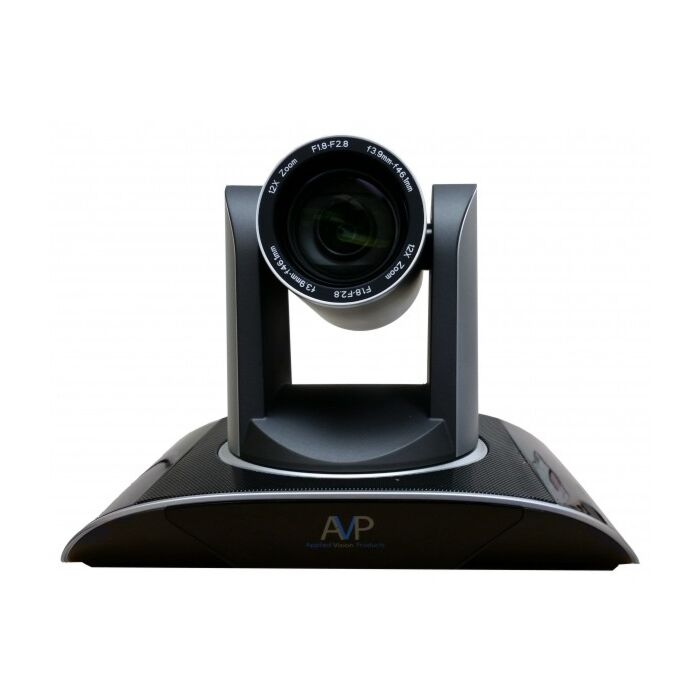

Aegis AVP-USB3-PTZ HD Color PTZ Video Camera
The AVP-USB3-PTZ camera is built with a 1/2.8 inch high quality HD CMOS sensor, 1080p - 60, 50, 30, 25 frames per second - 720p - 60, 50, 30, 25 frames per second, 12x optical zoom, and f＝3.9～46.8mm.
SKU
AVP-USB3-PTZ
AVP-USB3-PTZ Video Conferencing camera with a 70-degree field of view featuring 12X Optical Zoom and USB 3.0 with DVI streaming output. This camera is a great dual purpose cloud-based video conferencing and hardware video conferencing solution. Giving conference rooms the ability to offer multiple video conferencing options.
Features:
- 72.5-degree field of view
- 12X Optical Zoom
- USB 3.0
- DVI-I
- 1 Year Warranty
Applications:
- Houses of Worship
- Video Conferencing
- Remote Learning
- Office Environments
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Pixels | Dynamic Range: 16:9 - 2,070,000 effective pixels Static Image: 16:9 - 2,100,000 effective pixels |
| Video Signal | 1080p - 60, 50, 30, 25 frames per second 720p - 60, 50, 30, 25 frames per second |
| Zoom | 12x optical zoom f＝3.9～46.8mm |
| View Angle | 6.3 degrees (far) 70 degrees (near) |
| Minimum Lux | 1.0 Lux |
| White Balance | Auto/Manual |
| Focus | Auto/Manual |
| Iris | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| Back Light Control | Open/Close |
| Signal to Noise Ratio | >50 db |
| PTZ Mechanism | Tilt Rotation: -300 ~ +900 Pan Rotation: ±1750 Manual Control Speed: Pan: 0.5-120°/sec, Tilt: 0.5-40°/sec Preset Control Speed: Pan: 120°/sec, Tilt: 40°/sec |
| Power Supply Adapter | AC110V-AC220V to DC12V |
| Input Voltage | DC12V(DC10.5-DC12V) |
| Dimensions | Width: 10.15" (258mm) Height: 6.77" (172mm) Depth: 6.61" (168mm) |
