Tru-Vu VMTR-21.5R (VMTR21.5R) 21.5” Touch Screen Monitor

Tru-Vu ZBMT-21.5R Image # 1

Tru-Vu ZBMT-21.5R (ZBMT21.5R) 21.5” HD Multi-Touch Screen LCD Monitor

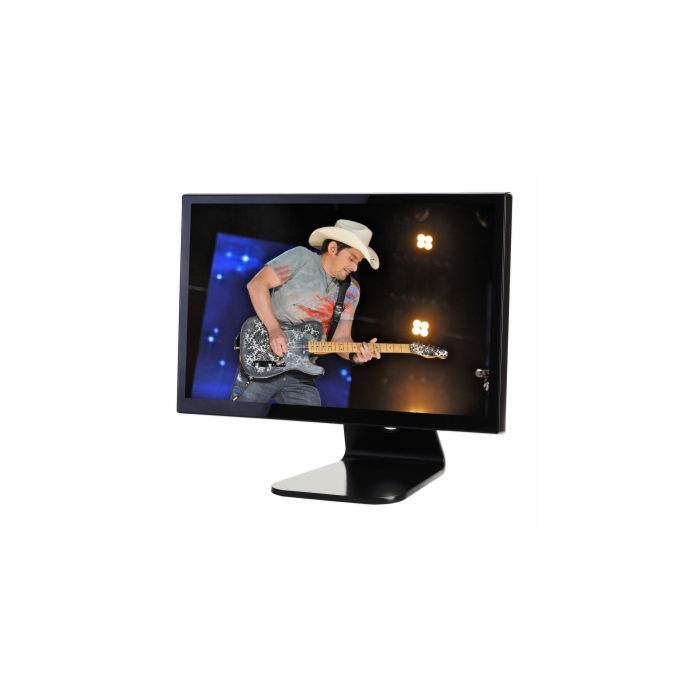

Tru-Vu ZBMT-21.5C (ZBMT21.5C) 21.5” HD Multi-Touch Touch Screen LCD Monitor

*Product is discontinued, Replacement Option: ZMBT-21.5R

The ZBMT-21.5 Series projected capacitive, multi-touch, Zero-Bezel touch screen monitors offer the latest in LCD touch screen technology.

SKU
Tru-Vu ZBMT-21.5C

The ZBMT-21.5C projected capacitive touch technology can be activated via an exposed finger (like standard capacitive touch), and also a finger inside a surgical glove or thin cotton glove. The multi-touch capability allows simultaneous dual finger operation for selecting, zoom, flick and other functions. It is also unaffected by dirt, grease or moisture on the glass surface. The sleek all-glass, seamless, zero-bezel front face is stylish as well as functional; it is easy to clean and eliminates the potential for contamination build-up under the bezel. The thin black housing finishes off the elegant look, and is perfect for healthcare, kiosk, hospitality and other applications.

All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.

Features:

  • Projected Capacitive Touch Technology
  • Can Be Activated Via Exposed Finger, and Surgical or Thin Cotton Gloves
  • Zero-Bezel, Seamless, All-Glass Front Face
  • Sleek Design, Easy to Clean
  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • Dual Built-in Speakers (Rear)
  • Auto Re-Start After Power Loss
  • Can Be Customized To Meet Your Needs
  • 3 Year Warranty

  • Applications:

  • Healthcare
  • Kiosk
  • Hospitality
  • Other Applications
  •   ZBMT-21.5C
    LCD Panel 21.5” TFT Color LCD
    Touch Screen Type Projected Capacitive Touch
    Resolution 1920 x 1080 (1080p/60 Full HD)
    Viewing Area
    18.76” x 10.55” (476.6 x 268.1 mm)
    Pixel Pitch
    0.248mm
    Display Colors
    16.7 Million
    Aspect Ratio
    16:9
    Brightness
    250 nits
    Contrast Ratio
    5,000:1
    Viewing Angle 178° (H) x 178° (W)
    Response Time 12 msec Trf
    Control
    OSD (On-Screen Display) via Pushbuttons
    Video Input Connectors VGA, DVI
    Video Inputs VGA, DVI
    Power Requirement 12 VDC/90-260 VAC with included external power brick
    Power Consumption Max. 22W at 12 VDC/2.1A
    Enclosure ABS, Zero-Bezel Front Face
    Mounting 100 x 100 mm VESA
    Operating Temperature/Humidity 32º to 122º F / 0 to 50º C
    Dimensions 20.5” (W) x 13.55” (H) x 2.3” (D) / 520.7 (W) x 344.17 (H) x 58.42 (D) mm
