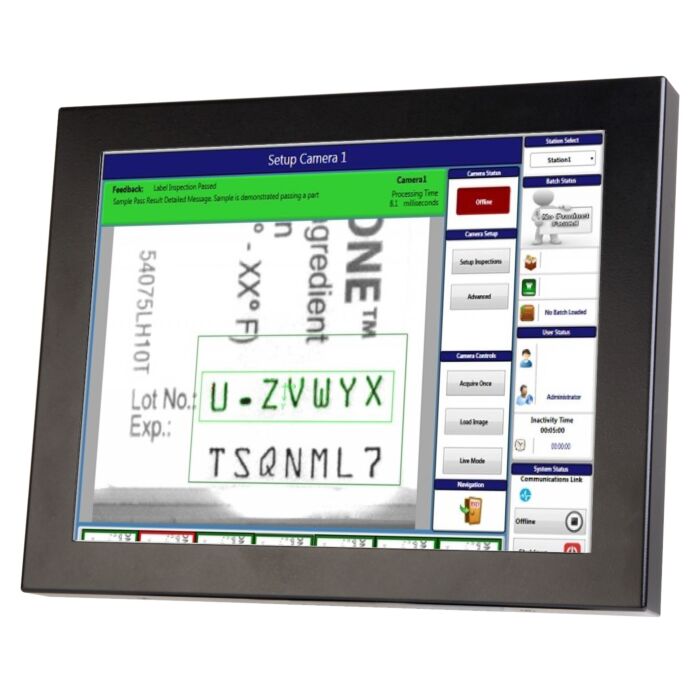

Tru-Vu VMTR-8.4V 8.4” Touch Screen LCD Monitor
The VM-8.4 Series LCD monitors offer exceptional image quality and dependable 24/7/365 operation. This monitor is ideally suited wherever you need detailed, high quality images in a rugged metal enclosure. The VM-8.4 Series monitors have been successfully used with machine vision systems, in police cars, public transportation, manufacturing plants and studios. They can also be private-labelled with your company, name, logo and model number.
All Tru-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, law enforcement, and A/V applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
|
VMTR-8.4V
|
|
| LCD Panel |
8.4” LED Backlight LCD
|
| Resolution |
800 x 600 (SVGA)
|
| Touch Screen Type |
5-Wire Resistive Touch
|
| Touch Interface |
USB
|
| Display Area |
6.70” x 5.03” / 170.4 x 127.8 mm
|
| Pixel Pitch |
0.213 mm
|
| Display Colors |
16.2m
|
| Aspect Ratio |
4:3
|
| Brightness |
450 nits
|
| Contrast Ratio |
700:1
|
| Viewing Angle |
160° (H) x 140° (V)
|
| Response Time |
30 msec
|
| Control |
OSD (On-Screen Display) via Rear Panel Pushbuttons
|
| Video Inputs |
VGA
|
| Power Requirement |
12 VDC (90-250 VAC with included power adapter)
|
| Power Consumption |
800 mA
|
| Enclosure |
Powder-Coated Steel
|
| Mounting |
75 X 75 mm VESA
|
| Operating Temperature |
-31º to +185º F / -35º to +85º C
|
| Dimensions |
8.7” (W) x 6.3” (H) x 1.6” (D) / 220.97 (W) x 160.01 (H) x 40.64 (D) mm
|
| Weight |
2.8 lbs. / 1.3 kg
|
