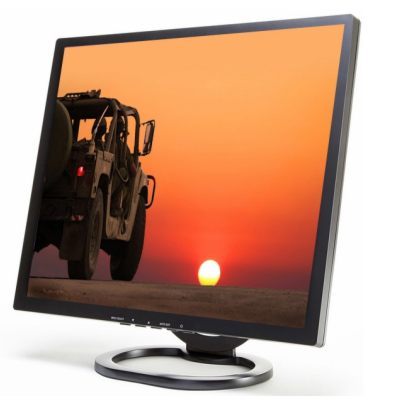

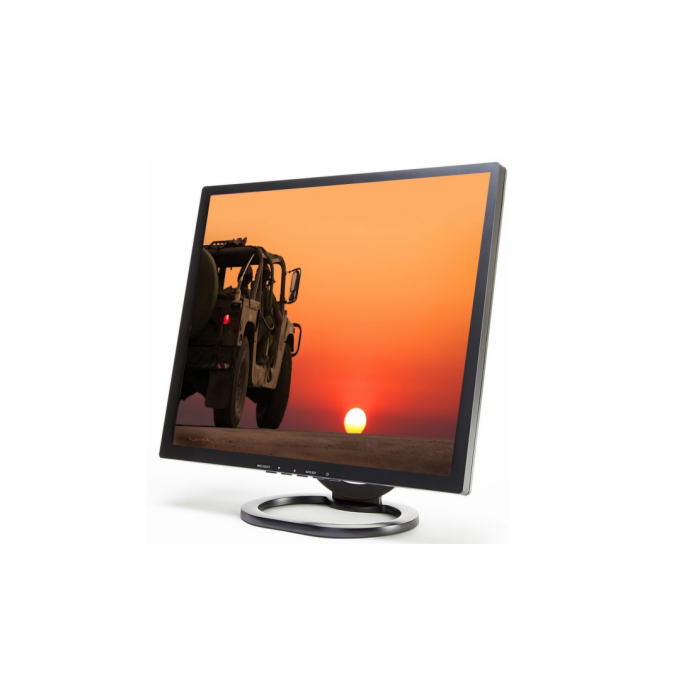

Tru-Vu VMMOB-19C-24 (VMMOB19C24) 19” Daylight Viewable Industrial-Grade Monitors

The VMMOB-19 Series are Optically-Bonded LCD monitors, designed to dramatically improve viewability in bright daylight and other high ambient light conditions.
SKU
VMMOB-19C-24
-TruVu

The optical bonding process injects an optical-grade epoxy resin between the surface of the LCD panel and the outer protective glass, eliminating the air gap between the two. The outer glass surface has an Anti-Reflective coating. The net result is a dramatic reduction in unwanted reflections, and a tremendous increase in contrast ratio, making the monitor ideal for use in outdoor daylight or brightly lit areas. Optical Bonding also provides other benefits such as increased ruggedness and durability, prevents internal condensation or fogging, and makes the outer glass shatter-proof.

The VMM0B-19 Series Daylight Viewable LCD monitors are built with industrial-grade components, and receive our exclusive TRU-TUFF treatment. The TRU-TUFF process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This ensures maximum shock and vibration resistance. These monitors are ideal for wide range of demanding applications including industrial, military, law enforcement, transportation, aviation, marine, inspection, cranes, oceanic, and entertainment.

Features:

  • 19” Optically Bonded LCD Monitors; Ideal for Use in Bright Daylight Conditions
  • Protective Anti-Reflective Glass
  • 450 Nits Brightness
  • Operating Temperature: -22˚ to +185˚F
  • TRU-Tuff Ensures Maximum Shock & Vibration Resistance
  • Auto Re-start After Power Loss
  • Lockable On-Screen Display Controls
  • Can Be Customized to Meet Your Needs
  • 3-Year Warranty

  • Applications:

  • Industrial
  • Military
  • Law Enforcement
  • Transportation
  • Aviation
  • Marine
  • Inspection
  • Cranes
  • Oceanic
  • Entertainment
  •   VMMOB-19C-24
    LCD Panel 19” Color LCD (LED Backlights)
    Resolution 1280 x 1024 (SXGA)
    Viewing Area 14.81” (W) x 11.85” (H) (376.17 x 300.98 mm)
    Pixel Pitch 0.294mm x 0.294mm
    Display Colors
    16.7 Million
    Aspect Ratio 4:3 (5:4)
    Brightness
    450 nits
    Contrast Ratio
    1,000:1
    Viewing Angle
    170° (H) x 160° (V)
    Response Time
    5 msec Trf
    Control
    OSD (On-Screen Display) via Front Panel Pushbuttons
    Video Inputs VGA, DVI-D
    Analog Video Outputs --
    Audio Dual Front Speakers
    Power Requirement 12-24 VDC
    Power Consumption 37 Watts
    Enclosure Powder-Coated Steel
    Mounting Rear 75 x 75mm Rear VESA Mount Holes (Optional Tabletop Base)
    Operating Temperature -22° to +185° F (-30° to 85° C)
    Operating Altitude To 18,000 ft.
    Humidity
    5-90% RH
    Shock 50 G (20 msec,1/2 sine)
    Vibration 1.5 G RMS 10-200Hz
    Approvals UL/cUL, FCC, CE, TUV, RoHS
    Dimensions 16.59” (W) x 13.80” (H) x 1.89” (D) (421.4 x 350.5 x 48.1 mm)
    Weight 12 lbs. / 5.44 kg
    Warranty 3 Years
