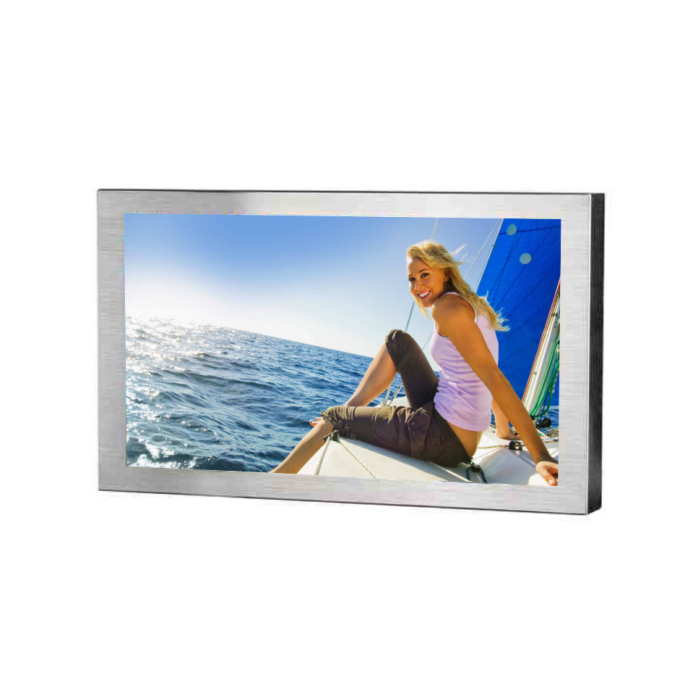

Tru-Vu SRMW-32R-SS (SRMW32RSS) 32” Outdoor Sunlight Readable LCD Monitor
*Product is discontinued, Replacement Option: SRMHW-32R
The SRMW-32R-SS is an excellent outdoor Sunlight Readable monitor. It is designed to operate in direct sunlight, or other high ambient light conditions.
This monitor produces over 1,000 nits of brightness, ensuring clear, sharp images even in direct, bright sunlight. The SRMW-32R-SS features a rugged NEMA 4X stainless steel enclosure. It is completely sealed and will withstand rain, snow, sleet, etc. (Note there are two small ventilation holes on the bottom.) These are ideal for outdoor use in a wide range of applications including military, law enforcement, stadiums, amusement parks, advertising, transportation, marine, auto racing, oil and gas, inspection and other industries where viewability outdoors in direct sunlight is crucial.
All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRMW-32R-SS
|
|
| LCD Panel | 32” Color MVA Panel; LED Backlights |
| Touch Screen Type | 1920 x 1080 (1080p/60 Full HD) |
| Touch Interface | 27.48” (W) x 15.46” (H) (698.4 x 392.85 mm) |
| Pixel Pitch | 0.364mm x 0.364mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness |
1,000 nits
|
| Contrast Ratio |
3,000:1
|
| Viewing Angle |
178° (H) x 178° (V)
|
| Response Time | 8 msec (gray to gray) |
| Control | OSD (On-Screen Display) via Rear Panel Push Buttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 90 -240 VAC |
| Power Consumption | 100 Watts |
| Enclosure | NEMA 4X Weatherproof Stainless Steel (Vent Holes On Bottom) |
| Mounting | 200 x 200 mm Rear VESA Mount Holes |
| Operating Temperature | 32° to 140°F (0° to +60°C) |
| Shock | 50 G (11 msec 1/2 sine) |
| Vibration | 1.5G RMS 10-300 Hz |
| Dimensions | 30.45” (W) x 17.89” (H) x 3.46” (D) (773.6 x 454.5 x 79.4 x 88 mm) |
| Weight | 39.2 lbs (17.78 kg) |
| Warranty | 3 Years |
