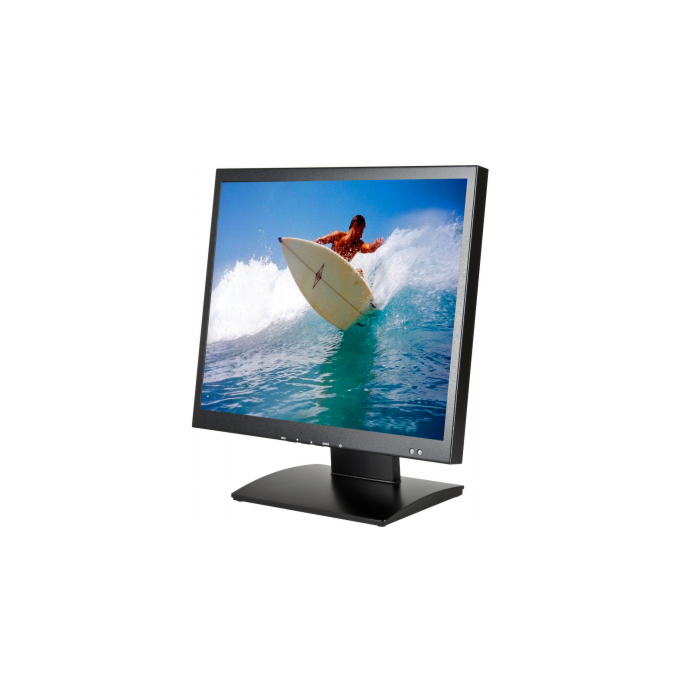

Tru-Vu SRMTR-19C (SRMTR19C) 19” Sunlight Readable Touch Screen LCD Monitor

The SRMT-19 Series Sunlight Readable Touch Screen monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions.
SKU
"SRMTR-19C -TruVu"

The SRMTR-19C utilizes state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. SRMT-19 Series Sunlight Readable Touch Screen monitors will eliminate the need for sun-shields, squinting or straining to see washed-out images. The capacitive touch screen can only be activated via a naked human finger, greatly reducing the possibility of false-triggering. The resistive touch screen can be activated via nearly any type of object.

All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.

Features:

  • Produces Clear, Sharp Images Even in Direct, Bright Sunlight
  • 1,000 nits Brightness
  • 5-Wire Resistive or Surface Capacitive Touch
  • Anti-Reflective Film
  • Auto Re-Start After Power Loss
  • Lockable OSD (On-Screen Display) Controls
  • 3 Year Warranty

  • Applications:

  • Industrial
  • Law Enforcement
  • Aviation
  • Marine
  • Military
  • Inspection
  • Advertising
  • Material Handling (Cranes)
  • Transportation Applications
  •
    SRMTC-19V
    LCD Panel 19” Color LCD; LED Backlights
    Touch Screen  Surface Capacitive
    Touch Interface USB
    Resolution 1280 x 1024 (SXGA)
    Viewing Area 14.81” (W) x 11.85” (H) (376.17 mm x 300.98 mm)
    Pixel Pitch 0.294mm x 0.294mm
    Display Colors
    16.7 Million
    Aspect Ratio 4:3 (5:4)
    Brightness
    1,000 nits
    Contrast Ratio
    1,000:1
    Viewing Angle
    170° (H) x 160° (V)
    Response Time
    5 msec Trf
    Control
    OSD (On-Screen Display) via Front Panel Pushbuttons
    Video Inputs VGA
    Power Requirement 12 VDC/ 90-240 VAC with Included Power Brick
    Power Consumption 48 Watts
    Enclosure ABS
    Mounting Included Base or 75x75mm VESA Hole Pattern
    Operating Temperature 32°-122° F (0-50° C)
    Humidity
    5-90% RH
    Shock 50 G (20 msec,1/2 sine)
    Vibration 1.5 G RMS 10-200Hz
    Approvals UL/cUL, FCC, CE, TUV, RoHS
    Dimensions 16.5” (W) x 13.75” (H) x 1.95” (D) (419.09 (W) x 349.25 (H) x 49.52 (D) mm)
    Weight 11 lbs. / 5 kg
    Included 90-240 VAC Adapter, VGA Cable, Tabletop Base
    Warranty 3 Years
