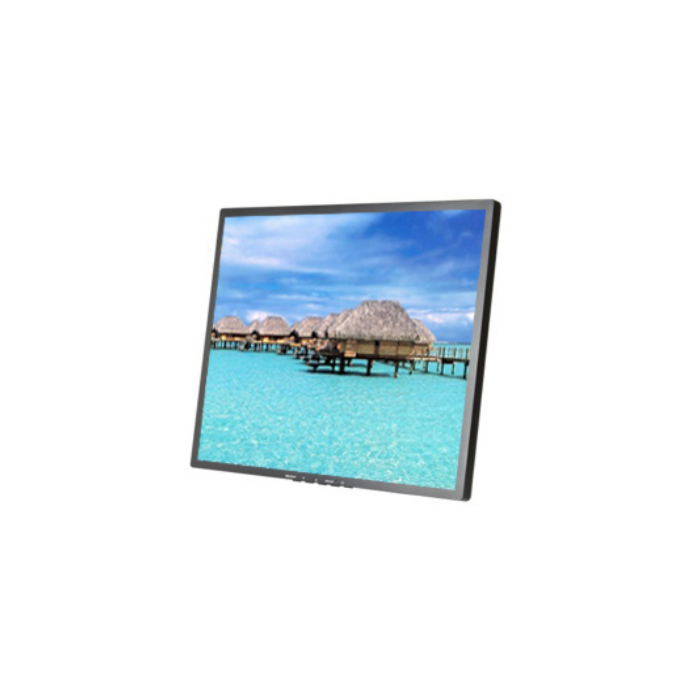

Tru-Vu SRMTC-17V (SRMTC17V) 17” Sunlight Readable Touch Screen LCD Monitor
The SRMTC-17V utilizes state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. SRMTC-17V Sunlight Readable Touch Screen monitors will eliminate the need for sun-shields, and squinting or straining to see washed-out images.
All TRU-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRMTC-17V
|
|
| LCD Panel | 17” Color LCD; LED Backlights |
| Touch Screen Type | Surface Capacitive |
| Touch Interface | USB |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 13.3” (W) x 10.64” (H) (337.9 x 270.3 mm) |
| Pixel Pitch |
0.264mm x 0.264mm
|
| Display Colors |
16.7 Million
|
| Aspect Ratio | 4:3 (5:4) |
| Brightness |
1,000 nits
|
| Contrast Ratio |
1,000:1
|
| Viewing Angle |
170° (H) x 160° (V)
|
| Response Time |
5 msec (Trf)
|
| Control |
OSD (On-Screen Display) via Front Panel Pushbuttons
|
| Video Inputs | VGA |
| Audio | Optional |
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Brick |
| Power Consumption |
48 Watts
|
| Enclosure | ABS |
| Mounting | 75x75mm VESA Rear Hole Pattern (or Included Base) |
| Operating Temperature | +32° to 122° F (0° to 50° C) |
| Humidity |
5-90% RH
|
| Shock |
50 G (20 msec, 1/2 sine)
|
| Vibration |
1.5G RMS 10-200 HZ
|
| Approvals |
UL/cUL, FCC, CE, RoHS
|
| Dimensions | 14.8” (W) x 12.4” (H) x 1.9” (D) (375.92 x 314.96 x 48.26 mm) |
| Weight | 8.22 lbs. (3.73 kg) |
| Included Accessories | 90-240 VAC Adapter; VGA, DVI and Audio Cables |
| Warranty | 3-Years |
