PixeLINK PL-D7512 Series | 12MP Camera Image #1

PixeLINK PL-D7512 (PLD7512) Series 12MP 4096x3000 Resolution Machine Vision Camera/Kits (Sony IMX253)

Tru-Vu VMOB-8.4B Image # 1

Tru-Vu VMOB-8.4B 8.4” Daylight Readable LCD Monitors

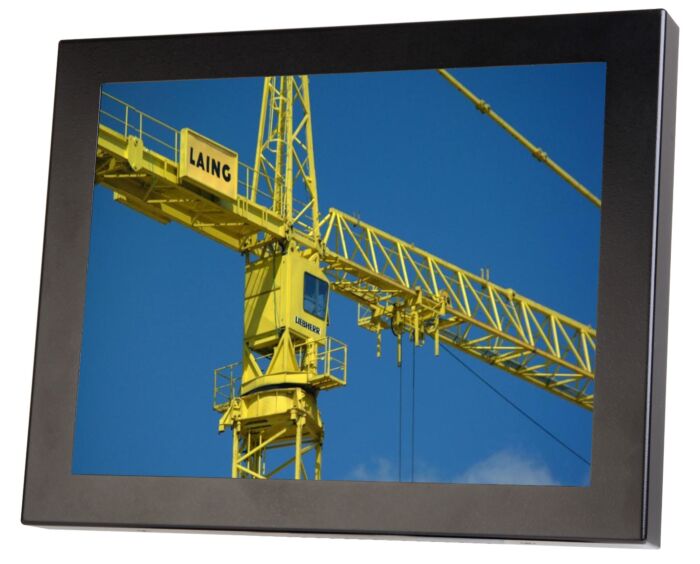

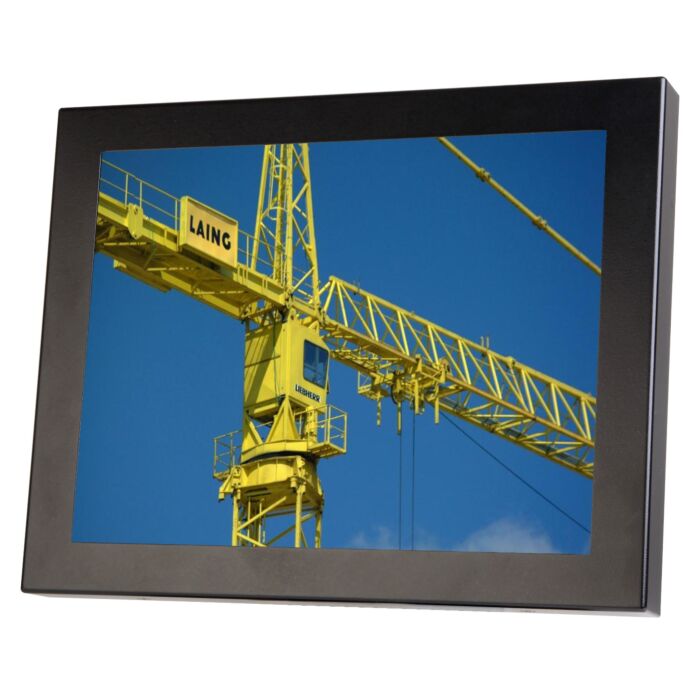

Tru-Vu SRMOB-8.4C-YUS 8.4” Sunlight Readable Optically Bonded Monitor

The SRMOB-8.4 Series Optically Bonded Sunlight Readable LCD monitors are designed for use in direct bright sunlight, or in other high ambient-light conditions.
SKU
SRMOB-8.4C-YUS-TruVu

The SRMOB-8.4 Series utilizes state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. The Optical Bonding process improves the image contrast ratio, makes the outer glass shatterproof, and increases the monitor durability.

The SRMOB-8.4 Series Optically Bonded Sunlight Readable LCD monitors are built with industrial-grade components, and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures maximum shock and vibration resistance. These monitors are ideal for a wide range of demanding applications including industrial, military, law enforcement, aviation, marine, inspection, surveying, cranes, oceanic, entertainment and transportation.

Features:

  • Produces Clear, Sharp Images Even in Direct, Bright Sunlight
  • 1,000 nits Brightness
  • Optical Bonding Improves Contrast Ratio and Increases Durability
  • LED Backlights
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Protective Anti-Reflective Glass
  • Lockable OSD (On-Screen Display) Controls
  • 3 Year Warranty

  • Applications:

  • Industrial
  • Military
  • Law Enforcement
  • Aviation
  • Marine
  • Inspection
  • Surveying
  • Cranes
  • Oceanic
  • Entertainment
  • Transportation
  •
    SRMOB-8.4C-YUS
    LCD Panel 8.4” Color LCD; LED Backlights
    Resolution 800 x 600 (SVGA)
    Viewable Area 6.71” (W) x 5.03”(H) (170.4 x 127.8 mm)
    Pixel Pitch 0.213mm
    Display Colors
    16.2 M
    Aspect Ratio
    4:3
    Brightness
    1,000 nits
    Contrast Ratio
    800:1
    Ambient Light Sensor
    Standard
    Viewing Angle 160º (H) x 140º (V)
    Response Time
    30 msec
    Control
    OSD (On-Screen Display) via Rear Panel Pushbuttons
    Video Inputs VGA, DVI
    Power Requirement 12 VDC (2.5mm barrel connector)
    Protective Glass Anti-Reflective Glass
    Power Consumption 11.2W (933 mA @ 12 VDC)
    Enclosure
    Powder-Coated Steel
    Mounting  75 x 75 mm VESA Hole Pattern
    Operating Temperature -22° to +140°F (-30° to +60° C)
    Humidity 5 - 90% RH
    Shock 50G (20 ms, Half-sine wave)
    Vibration 1.5G (10-200 Hz,P-P) 30 mins/axis (X,Y,Z)
    Dimensions 8.74”(W) x 6.30”(H) x 1.66”(D) / 222 (W) x 160 (H) x 42.20 (D) mm
    Weight 2.82 lbs. (1.29 kg)
