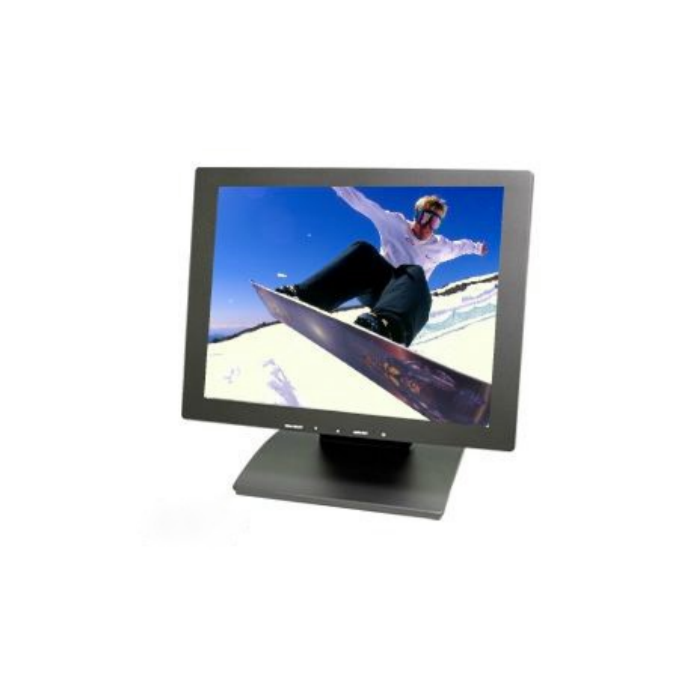

Tru-Vu SRMHXTC-12C-24 (SRMHXTC12C24) 12” Sunlight-Readable Touch Screen Monitors
The SRMHXT-12C-24 utilizes state-of-the-art LED backlights to produce over 1,500 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. The SRMHT-12 Series Sunlight Readable Touch Screen monitors are ideal for use in a wide range of industrial, law enforcement, public safety, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.
All TRU-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRMHXTC-12C-24
|
|
| LCD Panel | 12.1” Color LCD; LED Backlights |
| Display Resolution | 1024 x 768 (XGA) |
| Touch Screen Type | 5-Wire Resistive Touch |
| Touch Screen Interface | USB |
| Viewing Area | 9.68” (W) x 7.26” (H) (245.76 x 184.32 mm) |
| Pixel Pitch | 0.24 mm |
| Display Colors |
16.2 Million
|
| Aspect Ratio |
4:3
|
| Brightness | 1,500 nits |
| Contrast Ratio |
700:1
|
| Viewing Angle |
160° (H) x 160° (W)
|
| Response Time |
35 msec Trf
|
| Protective Glass |
-
|
| Control |
OSD (On-Screen Display) via Front Panel Pushbuttons
|
| Video Inputs | VGA, DVI |
| Power Requirement |
12 - 24 VDC (2.1 mm Barrel Plug)
|
| Power Consumption |
40 Watts
|
| Enclosure |
ABS
|
| Mounting | Included Tabletop Base or 75x75mm Rear VESA Mount Holes |
| Operating Temperature | -22° to +140° F (-30º to +60º C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS (10-200 HZ, sine wave) |
| Dimensions | 11.76” (W) x 9.02” (H) x 1.5” (D) (298.8 x 229.2 x 39.5 mm) |
| Weight | 3.46 lbs. (1.57 kg) |
| Warranty | 3 Years |
