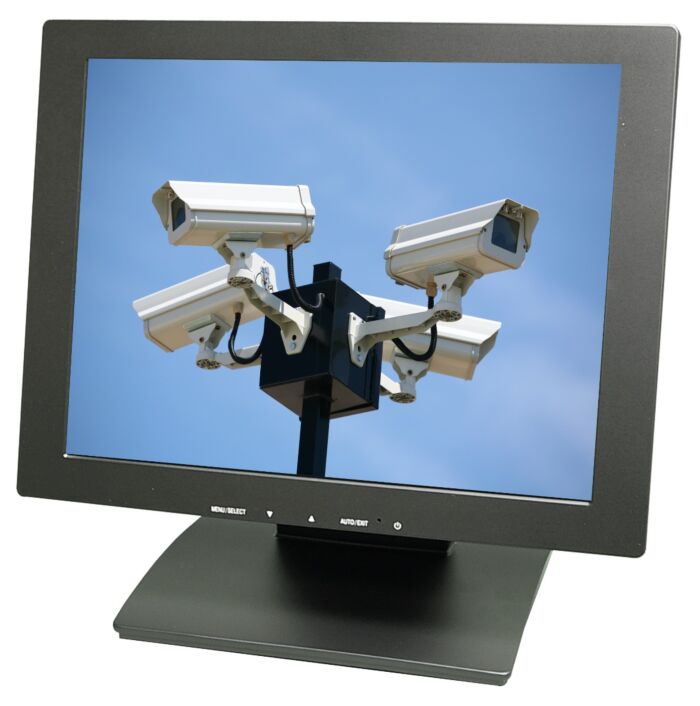

Tru-Vu SRMHTC-12V 12” Sunlight Readable Touch Screen
The SRMHT-12V utilizes state-of-the-art LED backlights to produce over 1,500 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. The SRMHT-12 Series Sunlight Readable Touch Screen monitors are ideal for use in a wide range of industrial, law enforcement, public safety, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.
All TRU-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRMHTC-12V
|
|
| LCD Panel | 12” Color TFT LCD Monitor |
| Display Resolution | 800 x 600 (SXGA) |
| Touch Screen Type | Capacitive Touch |
| Touch Screen Interface | USB |
| Viewing Area | 9.67” (W) x 7.25” (H) (245.8 (W) x 184.3 (H) mm) |
| Pixel Pitch | 0.3075mm x 0.3075mm |
| Display Colors |
16.2 Million
|
| Aspect Ratio |
4:3
|
| Brightness | 1,500 nits |
| Contrast Ratio |
700:1
|
| Viewing Angle |
160° (H) x 160° (W)
|
| Response Time |
35 msec Trf
|
| Control |
OSD (On-Screen Display) via Front Panel Pushbuttons
|
| Video Inputs | VGA |
| Audio | Rear Speakers |
| Power Requirement |
12 VDC / 90-240 VAC
|
| Power Consumption |
40 Watts
|
| Enclosure |
ABS
|
| Mounting | Included Tabletop Base or Rear 75x75mm VESA Hole Pattern |
| Operating Temperature | -22° to +185° F (-30º to +85º C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, 1/2 sine); 1.5G RMS 10-200 HZ |
| Approvals | UL/cUL, FCC, CE, TUV, RoHS |
| Dimensions | 11.7” (W) x 9.0” (H) x 1.5” (D) (297.17 (W) x 228.6 (H) x 38.09 (D) mm) |
| Weight | 5 lbs. / 2.3 kg |
