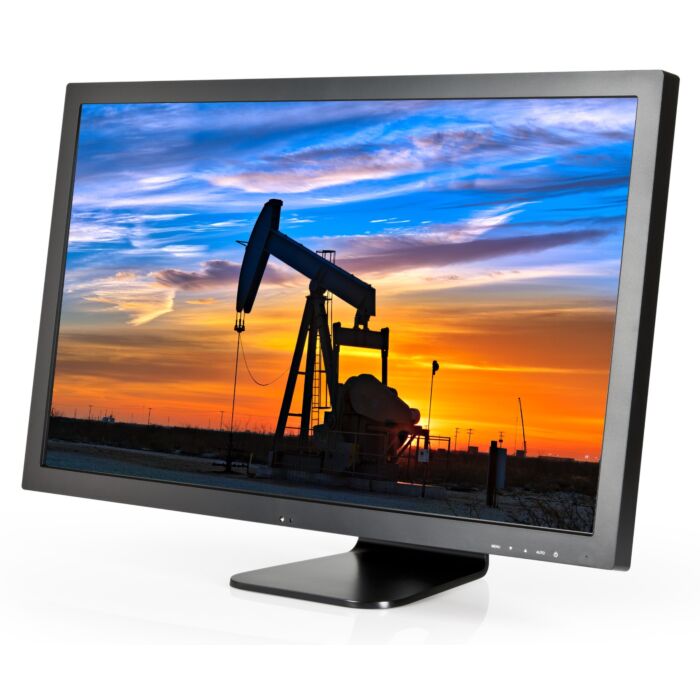

Tru-Vu SRM-27R-MV (SRM27RMV) 27” Sunlight Readable HD LCD Monitor
*Product is discontinued, Replacement Option: SRMH-32Z
The SRM-27R Sunlight Readable HD LCD monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions.
The SRM-27 Series are state-of-the-art monitors produce over 1,000 nits of brightness (vs. 150-200 nits for standard laptops). This results in amazingly bright, crystal-clear HD images, even with direct, bright sunlight on the face of the screen. The SRM-27 Series Sunlight Readable monitors are ideal for use in a wide range of industrial, law enforcement, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.
All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
Applications:
|
SRM-27R-MV
|
|
| LCD Panel | 27” Color MVA Panel; LED Backlights |
| Touch Screen Type | 1920 X 1080 |
| Touch Interface | 23.53” (W) x 13.23” (H) (597.6 x 336.15 mm) |
| Pixel Pitch | 0.311mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness |
1,000 nits
|
| Contrast Ratio |
1,000:1
|
| Viewing Angle |
178° (H) x 178° (V)
|
| Response Time | 5 ms |
| Control | OSD (On-Screen Display) via Front Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 12 VDC (2.5 mm Barrel Plug); 90-240 VAC via Included Power Brick |
| Power Consumption | 45 W |
| Plug & Play | ABS |
| Mounting | Via Included Base or 100 x 100 mm / 200 x 100 Rear VESA Mount Holes |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 5-90% RH |
| Shock | 50G Half-sine 20 msec |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 25.38” (W) x 15.25” (H) x 2.63” (D) (644.65 x 387.35 x 66.80 mm) |
| Weight | 12.08 lbs. (5.48 kg) |
| Warranty | 3 Years |
