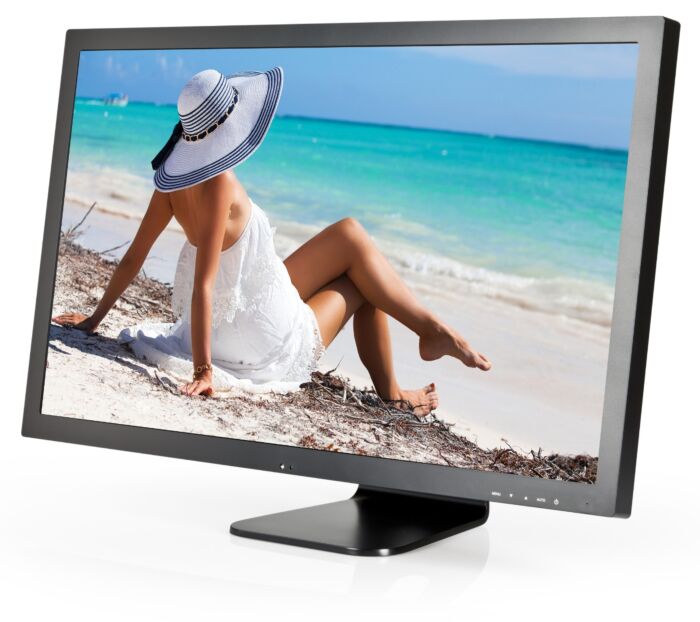

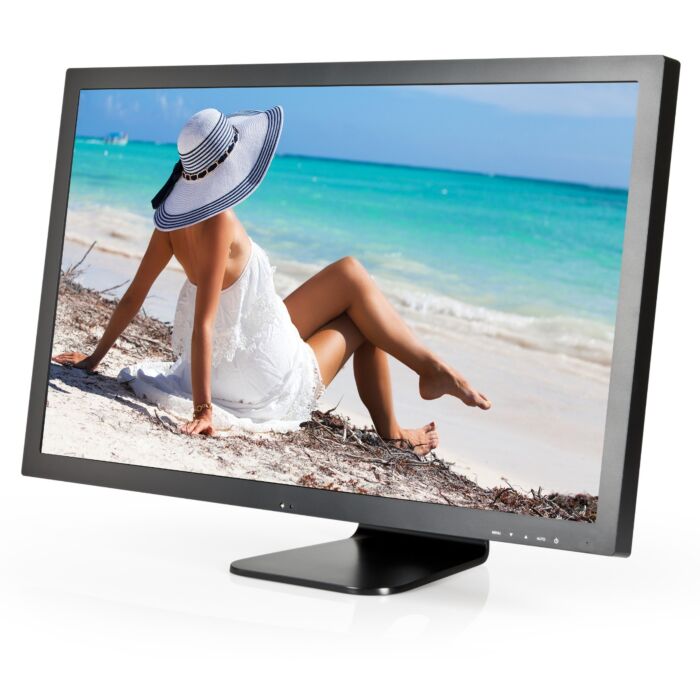

Tru-Vu SRM-24R-MV (SRM24RMV) 24” Sunlight Readable HD LCD Monitors
*Product is discontinued, Replacement Option: SRMH-24R-NB
The SRM-24R-MV Series Sunlight Readable HD LCD monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions.
The SRM-24R-MV's state-of-the-art monitors produce over 1,000 nits of brightness (vs. 150-200 nits for standard laptops). This results in amazingly bright, crystal-clear HD images, even with direct, bright sunlight on the face of the screen. The SRM-24-MV Series Sunlight Readable monitors are ideal for use in a wide range of industrial, law enforcement, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.
All Tru-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every Tru-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty ensures you of reliable worry-free operation.
Features:
- True Sunlight-Readable HD Monitor
- 1,000/1,500 Nits Brightness
- Full HD Resolution: 1920 x 1080 (1080p/60)
- Dual Speakers
- Auto Re-Start After Power Loss
- Optional Automatic Ambient Light Sensor
- Lockable On-Screen Display (OSD) Controls
- Can Be Customized To Meet Your Needs
- 3 Year Warranty
Applications:
- Industrial
- Law Enforcement
- Aviation
- Marine
- Military
- Inspection
- Advertising
- Transportation Applications
| SRM-24R-MV | |
| LCD Panel | 24” MVA Panel; LED Backlights |
| Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewing Area | 20.91” x 11.47”(H) (531.36 x 298.9 mm) |
| Pixel Pitch |
0.277 mm
|
| Display Colors |
16.7 Million
|
| Aspect Ratio |
16:9 Widescreen
|
| Brightness |
1,000 nits
|
| Contrast Ratio |
3,000:1
|
| Viewing Angle | 178° (H) x 178° (W) |
| Response Time | 25 msec Trf |
| Control | OSD (On-Screen Display) via Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 12 VDC (2.5 mm Barrel Plug); 90-240 VAC via Included Power Brick |
| Power Consumption | 45 Watts |
| Enclosure | ABS |
| Mounting | Via 100 x 100 mm / 200 x 100 Rear VESA Mount Holes (or Optional Tabletop Base) |
| Operating Temperature/Humidity | -4°F to +158°F (-20° to +70°C) ; 5 - 90% RH |
| Shock | 50G (20 msec, 1/2 sine) +/-X, +/-Y, +/-Z |
| Vibration | 1.5G RMS, 10-200 Hz, 30 mins each Axis (X, Y, Z) |
| Dimensions | 22.68”(W) x 13.55”(H) x 2.44”(D) (576.1 x 344.3 x 62.10 mm) |
| Weight | 12.75 lbs. (5.78 kg) |
| Included Accessories | VGA, DVI, & Audio Cables; VGA/DVI Adapter, Tabletop Base, AC Power Supply |
| Warranty | 3 Years |
