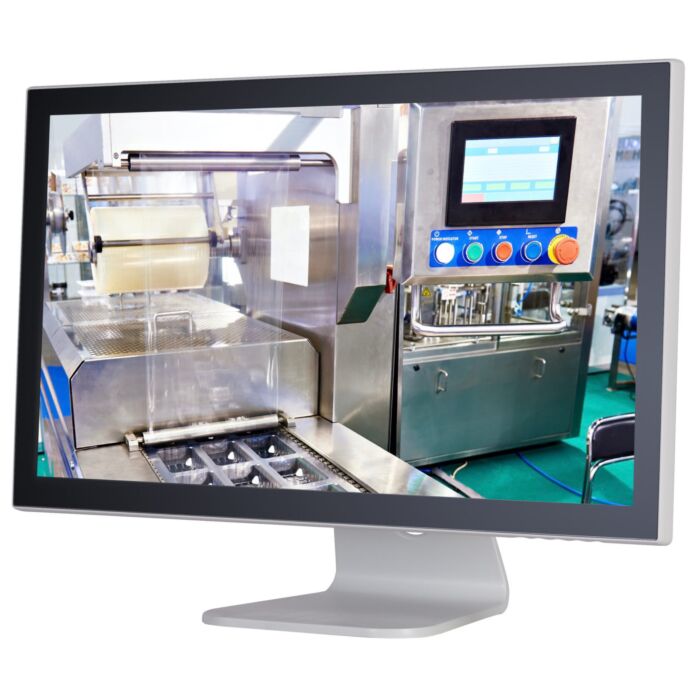

Tru-Vu MMZBTP-24R Medical-Grade Touch Screen LCD Monitor
*Product is discontinued, Replacement Option: MMZBTP-23.8G-X
The TRU-Vu MMZBTP-24 Series are 24” Medical-Grade Projected Capacitive Touch Screen monitors. They conform to UL 60601-1 3rd edition.
The TRU-Vu MMZBTP-24 Series are 24” Medical-Grade Projected Capacitive Touch Screen monitors. They conform to UL 60601-1 3rd edition. The projected capacitive touch technology enables multi-touch; it can be activated via dual fingers that are exposed, or in a surgical glove. The screen is unaffected by dirt, grease or moisture on the glass surface. The sleek edge-to-edge glass front face, without a raised edge bezel, is both stylish and functional: it is easy to clean and eliminates contamination build-up under a bezel, as with standard-type housings. The MMZBTP-24 Series monitors are ideal for hospital operating rooms, endoscopy, OEM medical systems, PACS and other medical applications.
TRU-Vu customizable LCD monitors are specifically designed for use in demanding medical, industrial and commercial applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/ consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
|
MMZBTP-24R
|
|
| LCD Panel | 24” Color LCD (MVA Type); LED Backlights |
| Touch Screen Type | Projected Capacitive |
| Touch Interface | USB |
| Display Resolution | 1920 x 1080 (Full HD) |
| Viewing Area | 20.92” x 11.77” (531.4 x 298.9 mm) |
| Pixel Pitch | 0.248 mm |
| Display Colors |
16.7 Million
|
| Aspect Ratio |
16:9 Widescreen
|
| Brightness | 300 nits |
| Contrast Ratio |
5,000:1
|
| Viewing Angle |
178° (H) x 178° (W)
|
| Response Time |
16 msec Trf
|
| Control |
OSD (On-Screen Display)
|
| Video Inputs | VGA, HDMI, DisplayPort |
| Supported Resolutions | 640 x 350 up to 1920 x 1080 |
| Audio | Dual Rear Speakers |
| Power Requirement |
100-240 VAC, 50/60 Hz (Includes Green-Dot Power Cord)
|
| Power Consumption |
75 W max (63 W typical)
|
| Plug & Play |
DDC 1/2B
|
| Enclosure |
ABS: Zero-Bezel Design
|
| Mounting | Included Tabletop Base or 100x100mm Rear VESA Mount Holes |
| Operating Temperature / Humidity | 32 to 122°F (0-50°C) |
| Humidity | 5-90% RH |
| Certifications | UL 60601-1 Ver. 3, CAN/CSA-22.2 No 601.1-M90: 2005; IEC 60950-1, EN 60601-1 |
| Dimensions | 22.6” (W) x 13.5” (H) x 2.4” (D) (576.14 x 344.34 x 62.10 mm) |
| Weight | 13.2 lbs. (5.98 kg) |
| Warranty | 3 Years |
