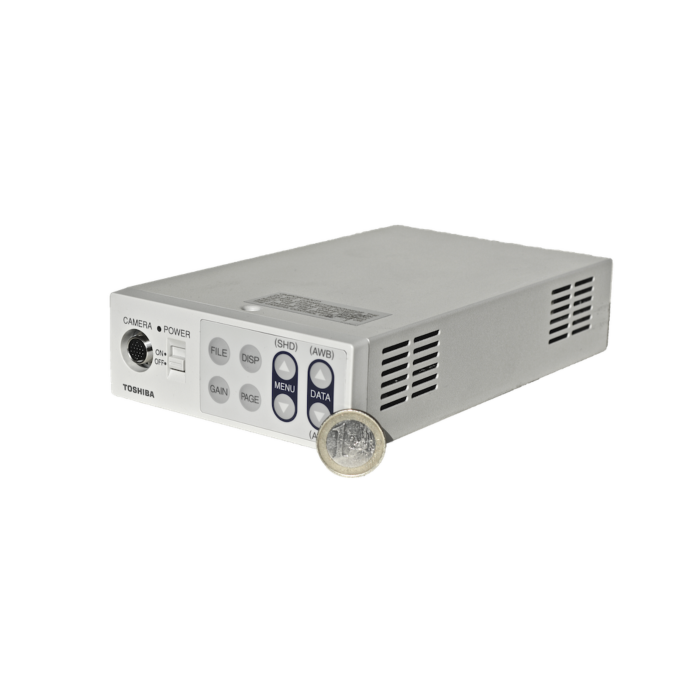

  • Toshiba IK-HD5E Control Unit Image
  • Toshiba IK-HD5

Toshiba IK-HD5E 3G-SDI DVI Camera Control Unit

Quick Overview

3G-SDI (SMPTE 424 M), HD-SDI (SMPTE 292 M) DVI-D Digital Toshiba's Camera Control Unit consists of: IK-HD5H Full HD 3-CMOS camera head IK-HD5E/IK-HD5U Camera Control Unit with 3G-SDI & DVI output.
Overview

Toshiba's new flagship camera boasts a stunning 1,000 TV line standard Full Native HD Resolution at 1920 x 1080, 16:9 format 1080i/1080p. It outputs full HD in 3G-SDI and DVI and boasts a whole range of features including a removeable IR Cut filter making it suitable for an extended range of applications.The camera is a 3-CMOS full HD IK-HD5 camera system comprises the IK-HD5H camera head designed around brand new high-sensitivity 1/3” CMOS 2.1 MP full HD sensor technology coupled with the new feature rich 3G SDI/DVI CCU IK-HD5E. The Toshiba IK-HD5H 3CMOS camera head and IK-HD5E CCU features native HD 1080 Progressive/Interlace resolution, increased sensitivity and an improved Signal/Noise ratio.

The new CCU IK-HD5E now includes an adjustable Knee and Clip functionality which greatly improves the camera's dynamic range.  Users can expect to see sharp images and colour quality in both the bright and the darker areas of the scene.Toshiba has added a 3G-SDI output (to SMPTE 242 M standards) enabling full HD 1080p as well as 1080i and DVI outputs. The IK-HD5 also includes a removable IR cut filter which can enable the camera to be used in applications such as fluorescence imaging or filming natural history documentaries under IR light.

Features:

  • 3CMOS, 1 /2.9” HD CMOS Sensor, progressive
  • 3G/HD-SDI & DVI-D Output
  • Full HD 1080p/1080i switchable
  • Enhanced IR Sensitivity /Removable IR Cut filter
  • Improved Dynamic Range/Knee & Clip Functionality
  • Genlock for 3D or multi-camera use
  • C-mount
  • Remote control via RS232

  • Applications:
  • Surgical Microscopy
  • Endoscopy
  • IR Inspection
  • Military Defense
  • Security
  • Specifications
    Power Supply
    DC 12V±10%
    Power Consumption
    Approx. 10.3W (including the camera head with the power supply voltage of 12V)
    Scanning System
    Progressive/Interlaced (Selectable)
    Scan Frequency
    H: 67.433 kHz, V:59.94 Hz: 1080p / 59.94 Hz
    H: 56.250 kHz, V:50 Hz: 1080p / 50 Hz
    H: 33.716 kHz, V: 59.94 Hz: 1080i / 59.94 Hz
    H: 28.125 kHz, V:50 Hz: 1080i / 50 Hz
    Operating Temperature
    0°C to 40°C / 32°F to 104°F
    Operating Humidity
    Less than 90% (non-condensing)
    Weight Approx. 60 g (1.32 lbs.)
    Dimensions W: 110 mm, H: 40 mm, D: 186 mm (4.33" x 1.58" x 7.32")
    Scene Files
    5 User-configurable scene files
    White Balance Auto/Manual (Selectable)
    Gain Auto (0 - 20 dB); Manual (-3 - 20 dB), OFF
    Output Signal DVI-D / 3G-SDI
    Electronic Shutter Auto / Manual / OFF 1/60 - 1/10,000
