Toshiba IK-HD2C HD-SDI Camera Control Unit

Quick Overview

1080i/30 HD-SDI and analog RGB outputs, 2:1 Interlace, 800 x 800 TV lines standard.
Overview

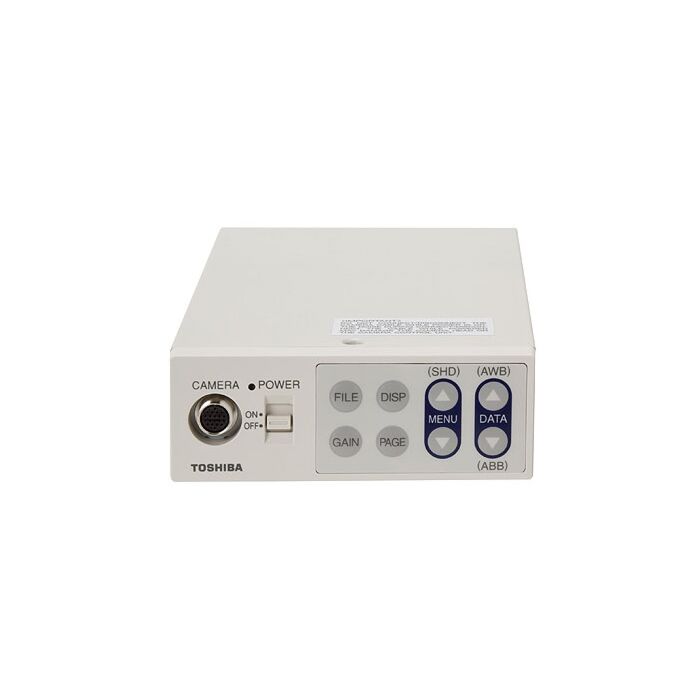

The Toshiba IK-HD2C is the camera control unit for the Toshiba IK-HD1H 3CCD HD camera head. This CCU provides both analog and digital HD video connections. Analog HD connectors are in the form of three BNC terminals (Y/G-Pa/B-Pr/R), while a single HD-SDI connector provides the interface to a digital HD monitor. Camera controls are accessed from the front of the unit.

These include a power On/Off switch, an AWB and gain switch, buttons for menu selection, and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12 VDC power input.

Features:

  • For IK-HD1H Remote Camera Head
  • Supports 1920 x 1080i Video
  • 5 User Assignable Scene Files
  • HD-SDI, Component/RGB Outputs
  • Switchable 59.94/60Hz

  • Applications:
  • 3D Imaging
  • Microscopy
  • Scientific Imaging
  • Diagnostics
  • Aerospace/Aviation
  • Broadcast
  • Specifications
    Scanning System
    2:1 Interlace
    Scan Frequencies
    59.94 Hz
    H: 33.716 kHz
    V: 59.94 Hz

    60 Hz
    H: 33.75 kHz
    V: 60 Hz
    Scan System
    Internal / External (auto switching)
    Resolution (H x V)
    800 x 800 TV lines standard
    Connectors
    HD-SDI: BNC (x1 Output)
    Component/RGB: BNCx3 (x1 Output)
    External Sync: BNCx1
    Sync Out: BNCx1
    Remote Control: 8-pin Mini-DIN, RS-232C
    Gain
    Auto / Manual / Off
    Output Signal Y/Pb/Pr: 0.7 V (p-p) standard
    RGB: 0.7 V (p-p) standard
    HD-SDI: 0.8 V (p-p) standard (SMPTE 292)
    External Sync Input
    59.94 Hz: Horizontal: 33.716 kHz ±35 ppm, Vertical: 59.94 Hz ±35 ppm
    60 Hz: Horizontal: 33.75 kHz ±35 ppm, Vertical: 60 Hz ±35 ppm
    Sync Signal Output
    59.94 Hz: Horizontal: 33.716 kHz ±35 ppm, Vertical: 59.94 Hz ±35 ppm
    60 Hz: Horizontal: 33.75 kHz ±35 ppm, Vertical: 60 Hz ±35 ppm
    Interface
    RS-232C
    Power Requirements
    12 VDC ± 10%
    Power Consumption Approx. 10.3 W
    Operating Temperature & Humidity Temperature: 32 to 104°F / 32 to 40°C
    Humidity: < 90% (non condensing)
    Dimensions (WxHxD) 4.3 x 1.6 x 7.3" / 11 x 4 x 18.6 cm
    Weight 1.6 lbs / 0.73 kg
