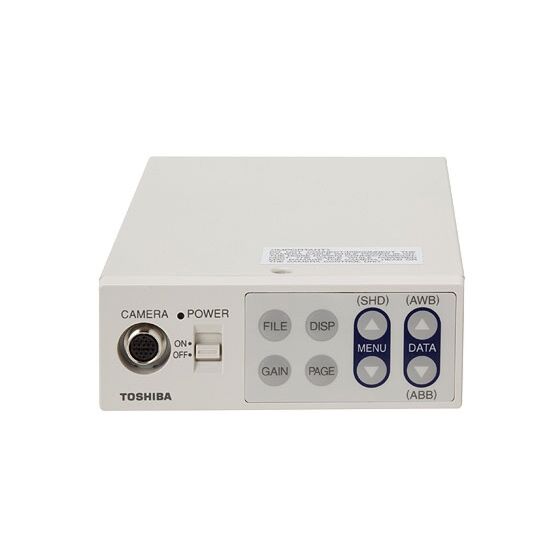

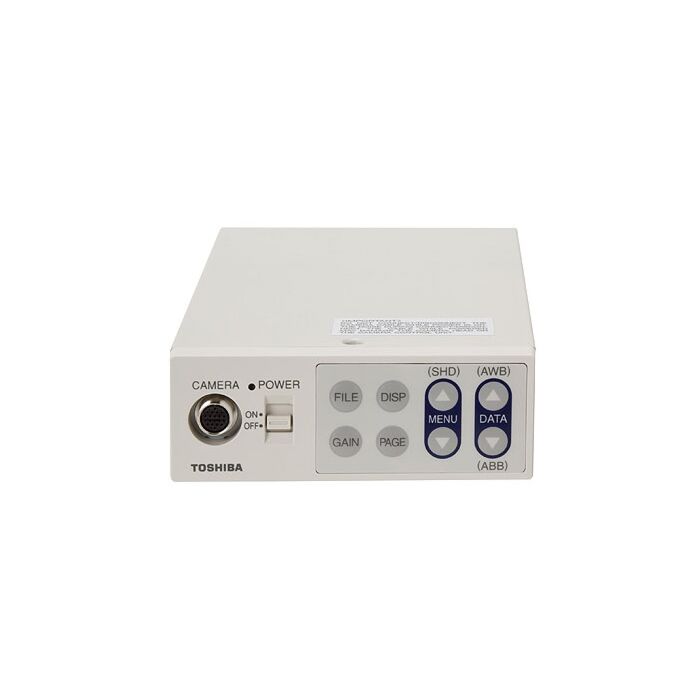

  • Toshiba IK-HD3D DVI-D Output Camera Control Unit Image

Toshiba IK-HD3D DVI-D Output Camera Control Unit

Quick Overview

1080P, DVID output, Auto (0 - 20 dB); Manual (-3 - 20 dB) OFF, 5 User-configurable scene files.Can be used with:IK-HD3H
Overview

The new IK-HD3D camera controller features innovative new capabilities such as binning mode for a 4X increase in sensitivity, image flip and mirror, and greatly expanded user controls.

Features:

  • 2.1MP, progressive, 1/3" HD CMOS sensors
  • 1920 x 1080 Digital DVI output
  • High sensitivity and wide dynamic range
  • Up to 1,000 TV lines resolution (IK-HD3H)
  • 5 User-configurable scene files to achieve exceptional color accuracy and control
  • Binning mode for 4x increase in sensitivity
  • Image flip and mirror
  • Switchable between 1080p and 1080i
  • Gen lock for 3D and multi-camera use
  • IK-HD3H and IK-HR3H Camera heads are interchangeable with controller
  • Remote control via RS232
  • C-mount lens mount

  • Applications:
  • 3D Imaging
  • Microscopy
  • Scientific Imaging
  • Diagnostics
  • Aerospace/Aviation
  • Broadcast
  • Specifications
    Power Supply
    12V DC±10%
    Power Consumption
    11.4 W
    Scanning System
    Progressive / Interlaced (Selectable)
    Scan Frequency
    H: 67.433 kHz, V: 59.94 Hz :1080p / 59.94 Hz
    H: 56.250 kHz, V: 50 Hz :1080p / 50 Hz
    H: 33.716 kHz, V: 59.94 Hz : 1080i / 59.94 Hz
    H: 28.125 kHz, V: 50 Hz : 1080i / 50 Hz
    Operating Temperature
    0°C to 40°C / 32°F to 104°F
    Operating Humidity
    Less than 90%
    Weight
    Approx. 610 g (1.34 lbs.)
    Dimensions
    W: 110 mm, H: 40 mm, D: 186 mm (4.33" x 1.58" x 7.32")
    Scene Files
    5 User-configurable scene files
    White Balance
    Auto / Manual (Selectable)
    Gain
    Auto (0 dB - 20 dB); Manual (-3 - 20 dB), OFF
    Output Signal DVI-D
    Electronic Shutter Auto / Manual / OFF 1/60 - 1/10,000
