Z3 Technology Z3Dome-4K Indoor/Outdoor 4K H.265 Dome Camera

Z3 Technology Z3Dome-4K Indoor/Outdoor 4K H.265 Dome Camera

Toshiba IK-4K UHD | 4K Ultra HD Camera Image 1

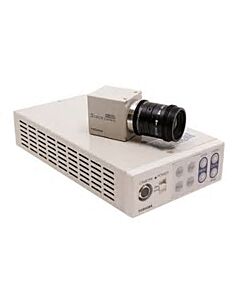

Canon Medical Systems IK-4KH (IK4KH) UHD 4K Camera with Camera Control Unit

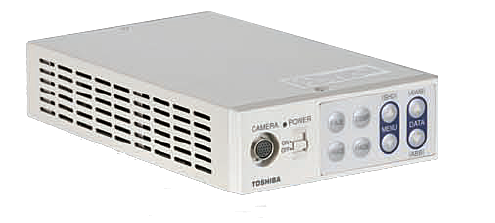

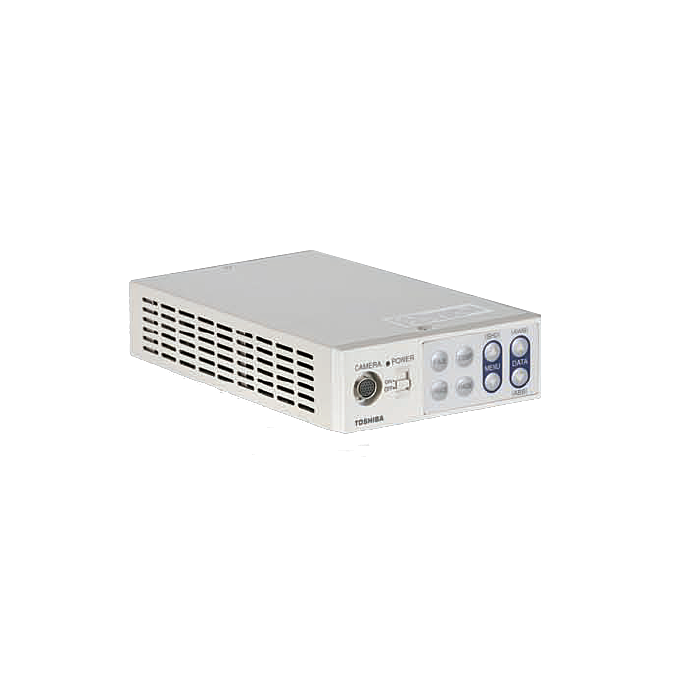

Canon Medical Systems IK-4KE (IK4KE) UHD 4K Camera Control Unit for IK-4KH camera head

3840 x 2160/1080p Control Unit, 4x 3GSDI output for IK-4KH Ultra High Definition Remote Camera Head
SKU
IK-4KE-Canon Medical

Canon Medical Systems leading innovation continues with its introduction of the world's smallest 3-chip UltraHD, 4K video camera system, the IK-4KH. The key advantage of this incredible camera is improved resolution, providing amazingly sharp details which can enhance many video applications from scientific imaging, life sciences, and defense to professional broadcast. When 4K images are desired and space is limited, the IK-4K delivers exceptional color performance with remarkable details, providing absolutely the best images possible.

Features:

  • 3840 x 2160 50/59.94 Hz UltraHD 4K output
  • Switchable formats; 4K, 1080p and 1080i
  • Amazing details up to 1600 TV lines resolution
  • Ultra-compact two piece design
  • 4x 3G/HD-SDI output for maximum signal fidelity
  • 12-channel color adjustment to achieve exceptional color accuracy and control
  • 5 User-configurable settings files to support different operating modes and conditions
  • Image flip and mirror
  • Freeze frame
  • Gen-lock for 3D and multi-camera use
  • Remote control via RS232
  • C-mount lens mount


Applications:

  • Scientific/Industrial Imaging
  • Life Sciences
  • Military Defense Projects
  • Broadcasting
Power Supply
12V DC±10%
Power Consumption
13.8 W
Scanning System
Progressive / Interlaced (Selectable)
Scan Frequency
H: 67.433 kHz, V: 59.94 Hz :1080p / 59.94 Hz 4K / 59.94 Hz 4 division output
H: 56.250 kHz, V: 50 Hz :1080p / 50 Hz 4K / 59.94 Hz 4 division output
H: 33.716 kHz, V: 59.94 Hz : 1080i / 59.94 Hz
H: 28.125 kHz, V: 50 Hz : 1080i / 50 Hz
Operating Temperature
0°C to 40°C / 32°F to 104°F
Operating Humidity
Less than 90% (non-condensing)
Weight
Approx. 800 g (1.76 lbs.)
Dimensions
W: 110 mm, H: 40 mm, D: 196 mm (4.33" x 1.58" x 7.72")
Scene Files
5 User-configurable scene files
White Balance
Auto / Manual (Selectable)
Gain
Auto (-6 dB to 24 dB); Manual (-6 dB to 24 dB), OFF
Output Signal 4x 3G/HD-SDI
Electronic Shutter Auto / Manual / OFF 1/60 - 1/10,000
