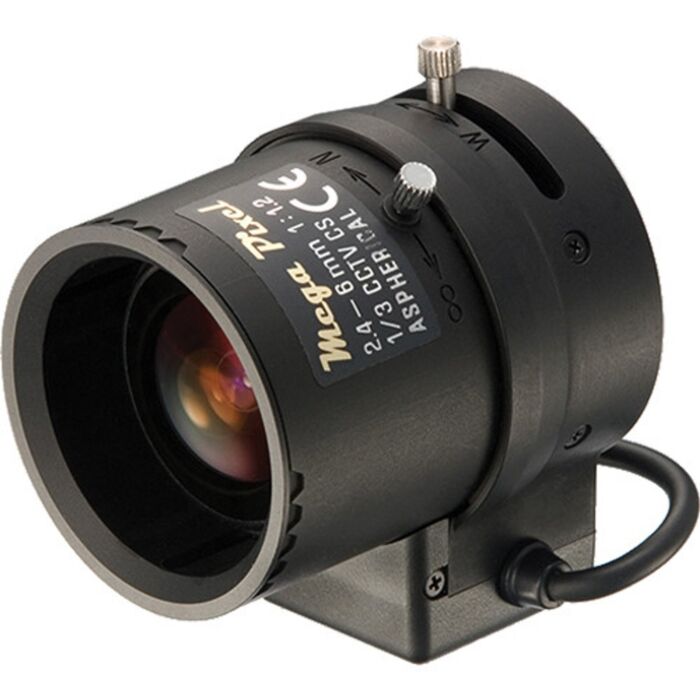

Tamron M13VG246 Wide-Angle Mega Pixel Lens
1/3", 2.4-6mm, F/1.2.
SKU
M13VG246
Tamron's ultra high defintion Megapixel compatible Vari-Focal lens series derives maximum performance from meg-pixel cameras to provide the best solution for your megapixel camera applications.
Features:
| Focal Length | 2.4-6mm |
| Iris Range | F/1.2-360 |
| Iris Operation | DC Auto Iris |
| Focus Operation | Manual w/lock |
| Zoom Operation | Manual w/lock |
| Mount | CS |
| 1/3" Angle of View (wide/telephoto) | 111.3° x 83.5°/ 47.1° x 35.4° |
| 1/4" Angle of View (wide/telephoto) | 68.2° x 50.6°/ 26.5 ° x 19.9° |
| Focusing Range | 0.3m ~ INF |
| Back Focus (in air) | 7.84mm ~ 13.72mm |
| Filter Size | --- |
| Operating Temperature | Open: 4.0V Close: 0.7V |
| Weight | 75 g |
| Operating Temperature | -20° ~ +60° C |
