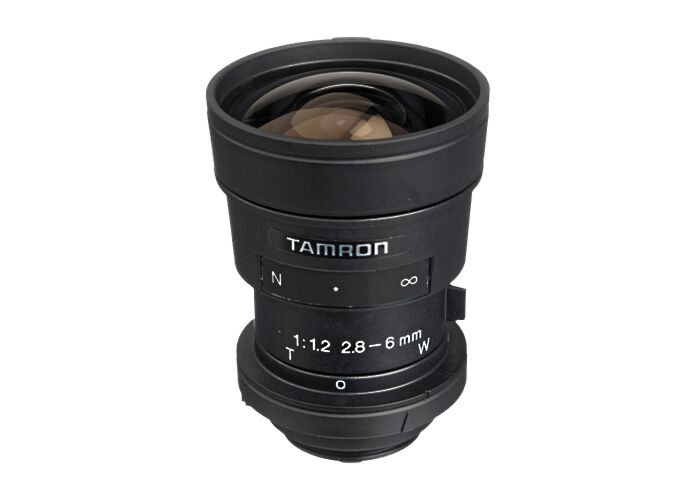

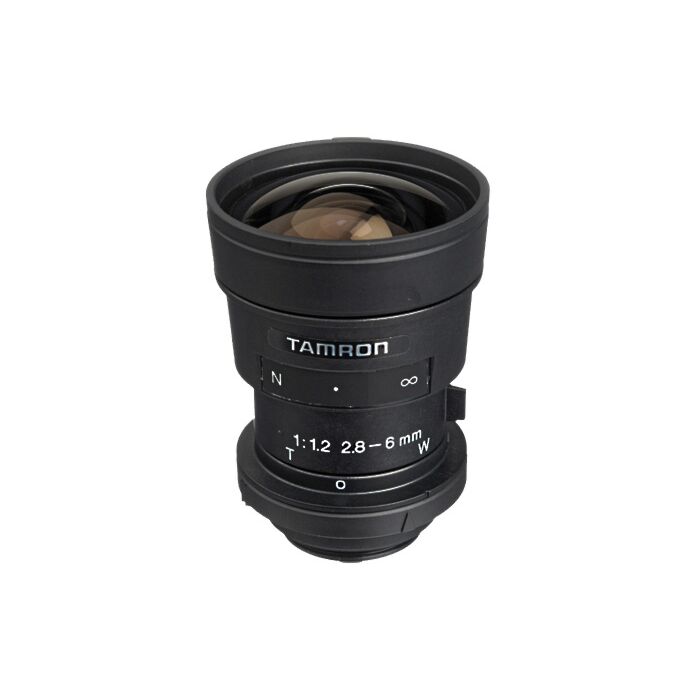

Tamron 13VM286 Manual-Iris Varifocal Industrial Lens
The Tamron 13VM286 1/3" CCD 2.8-6mm f/1.2 Manual-Iris Varifocal Industrial Lens
SKU
13VM286
The Tamron 13VM286 is a manual CS-mount lens designed for 1/3" CCD cameras. The 2.8mm focal length gives very wide 80° angle of view. Two aspherical lens elements limit distortion and provide corner to corner sharpness.
Features:
- 2.8-6.0mm F1.2-Close
- Manual Iris
- Manual Zoom w/lock
- CS-Mount
| TYPE | Manual Iris |
| CODE | 13VM286 |
| MODEL | 13VM286 |
| FORMAT | 1/3 inch CCD |
| FOCAL LENGTH | 2.8-6mm |
| IRIS RANGE | 1.2-Close |
| MOUNT | CS |
| WIDTH | 43mm |
|
LENGTH
|
56.1mm |
| WEIGHT | 83g |
| HAV 1/3" | 88.7°x69.2°/44.2°x34.0° |
| HAV 1/4" | 69.1°x52.8°/34.0°x25.9° |
| HAV 1/2" | N/A |
| HAV 2/3" | N/A |
| HAV 1" | N/A |
| FILTER | N/A/td> |
| MOD | |
| COMMENT | High Performance Large Format CS-Mount Manual lens |
| DESCRIPTION | The Tamron lens offers exceptional picture quality while maintaining a compact size. |
