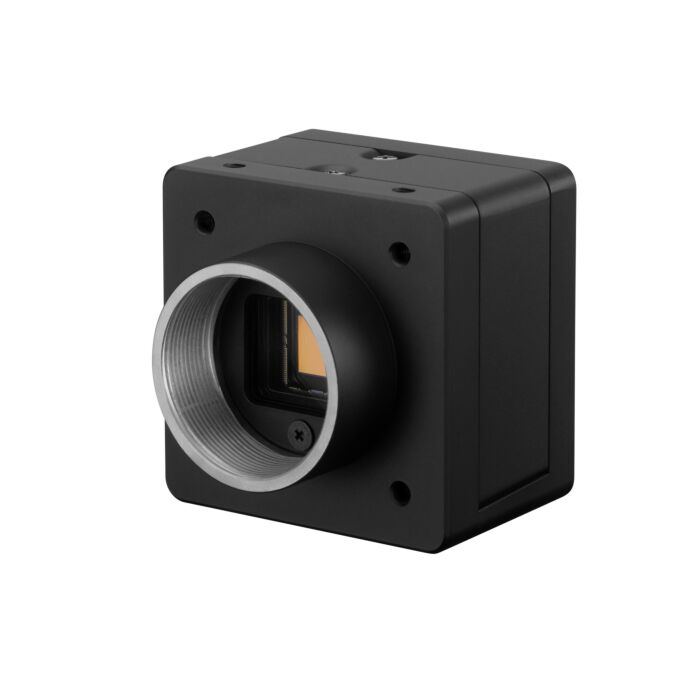

  • Sony XCL-SG510 Image 1
  • Sony XCL-SG510 Image 2

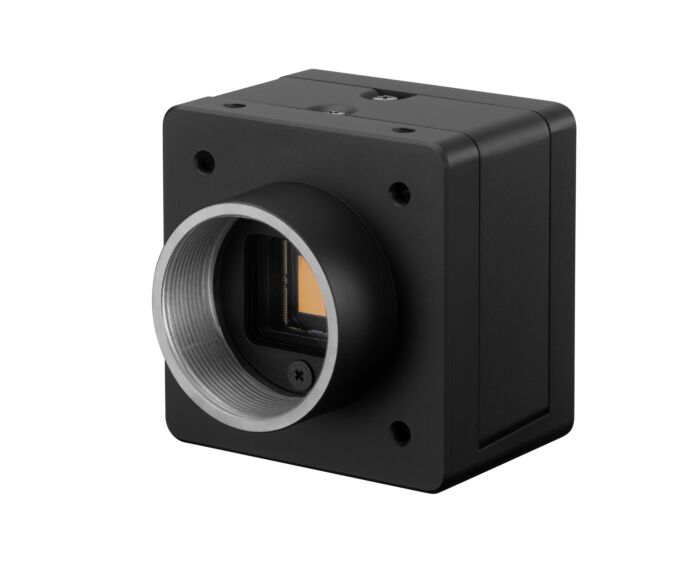

Sony XCL-SG510 (2464x2056 : IMX250 Sensor) Cameralink 2/3 type GSCMOS, 5.1 MP B/W Camera

Quick Overview

2464 x 2056 pixels, 2/3 type CMOS (PREGIUS), 154fps
Overview

The XCL-SG510 is the latest industrial cameras from Sony to incorporate Sony Pregius GSCMOS sensor technology. The XCL-SG510 combines the best of Sony technology in a convenient form factor which is optimized for use within both the Industrial Vision and non-manufacturing vision markets.

Other XCL-SG510 features include but are not limited to:
Utilizing both Sony’s IMX250 5MP global shutter sensor with 154fps and image processing know how, the XCL-SG510 camera comes equipped with unique image processing capabilities, such as:

  • Wide Dynamic Range
  • Frame Accumulation
  • Area Exposure
  • Area Gain
  • Multi ROI
  • Shading correction
  • Temperature readout
  • Defect correction
  • Trigger Mode: Free run/ Special trigger mode (Bulk trigger/Sequential trigger)
  • Readout mode: Normal/Binning (XCL-SG510)/ Partial scan
  • 3 x 3 filter
  • Readout features: Built-in test pattern/LUT (Binarization, Gamma (variable)
  • One-push WB, Manual (XCL-SG510)
  • CameraLink Ver.2.0
  • PoCL / DC 12 V support
  • Dimensions (excluding protrusions): 44 (W) x 44 (H) x 30 (D) mm
  • C-mount
  • High shock and vibration resistance

  • Applications:

  • ITS
  • Factory Automation
  • Food & Beverage Inspection
  • Pharmaceutical Applications
  • Specifications
    Image Sensor 2/3 type CMOS Image sensors with a global shutter function (PREGIUS)
    Image Sensor (Number of Effective Pixels, HxV) 2464x2056
    Cell Size (HxV) 3.45 μm x 3.45 μm
    Output Pixels (HxV) 2,448 x 2,048
    Color Filter -
    Exposure Control

    16 fps (Base 1 Tap)
    32 fps (Base 2 Tap)
    48 fps (Base 3 Tap)
    64 fps (Medium 4 Tap)
    124 fps (Full 8 Tap)
    154 fps (80 Bit 10 Tap)

    Minimum Illumination (50%) 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s)
    Sensitivity F5.6 (400 lx, Gain: 0 dB, shutter 1/30s)
    S/N Ratio More Than 50dB
    Gain 0dB to +18dB
    Shutter Speed  Auto, Manual: 60s to 1/100,000s
    White Balance -
    Camera Features
    Readout Modes Normal, Binning (2 x 1, 1 x 2, 2 x 2), Partial Scan, Multi ROI
    Readout Features Binarization, Built-in test pattern, LUT, 3x3 Filter
    Syncronization Hardware trigger, Software trigger
    Trigger Modes Edge detection, Pulse width detection, Bulk trigger, Sequential trigger
    Userset (Memory Channel) 16
    User Memory 32 kbytes +  bytes x 16ch
    Image Before -
    Other Features Wide dynamic range, Frame accumulation, Area exposure, Area gain, Defect correction, Shading correction
    Interface
    Video Data Output Digital Mono 8, 10, 12, 16-bit
    Serial Interface RS232c
    Iris Control -
    Digital Interference LVDS
    Camera Specification Cameralink Version 2.0
    Output Data Clock

    85 MHZ (1,2,3,4,8,10 tap)
    65 MHZ (1,2,3,4, 8, 10 tap)
    45 MHZ (1,2,3,4,8, 10 tap)

    Digital Input/Output ISO IN (x1), ISO OUT (x2), TTL IN/OUT (x2 selectable)
    General
    Lens Mount C Mount
    Power Requirements DC+12V (+10.5V to + 15.0V)
    Power Consumption 5.0w (max.)
    Operating Temperature -5c to+45c, 23f to 113f
    Performance Guarantee Temperature 35c to 60c, 32f to 104f
    Storage Temperature -30c to 60c, -22f to 140f
    Operating Humidity 20% to 80% (no condensation)
    Storage Humidity 20% to 95% (no condensation)
    Vibration Resistance 10G (20Hz to 200 Hz)
    Shock Resistance 70 G
    Dimensions (WxHxD) 44x44x30 (excluding protrusions) 1 3/4 x 1 3/4x 1 3/16 inches (excluding protrusions)
    Mass 96g 3.4oz
    Regulations UL60950-1, FFC Class A, CSA C 22.2-No.60950-1,1c Class A digital device, CE:EN61326 (Class A), ASEMC:EN61326 (Class A), ASEMC:En 6136-1, VCCI Class A, KCC
    MTBF Approx. 8.1 years
    Supplied Lens Cap(1), Operating Instructions(1)
