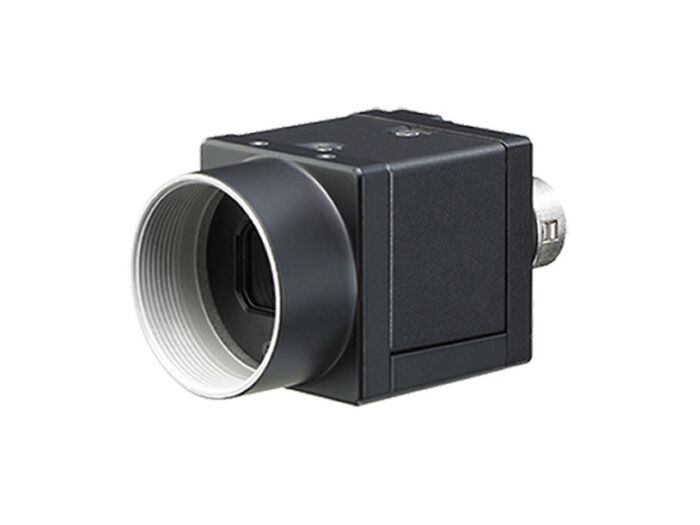

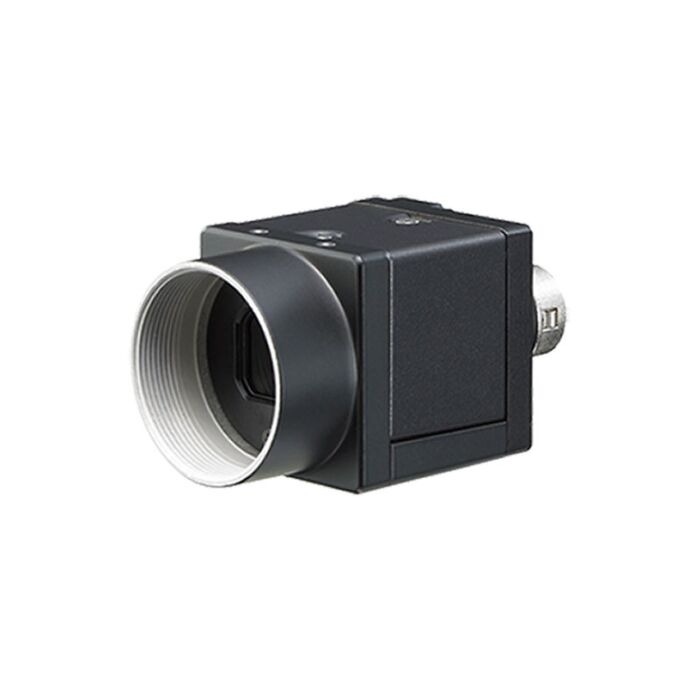

  • Sony XCL-C500 Image
  • Sony XCL-C500 Back View Image

Sony XCL-C500 Monochrome Progressive Scan CameraLink Video Camera

Quick Overview

2,456 pixels x 2,058, 2/3"-type progressive scan IT CCD Digital PoCL.
Overview

Features:

  • Near-Infrared Sensitivity: Utilizing Sony's EXview HAD CCD II technology, the XCL-C500 camera captures clear images in NIR wavelengths.
  • Shading Correction: Minimizes uneven image intensity caused by lighting conditions.
  • Defect Correction: Automatically minimizes defective pixels directly inside the camera.
  • Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration.
  • Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.
  • Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.
  • Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.
  • Specifications
    Image sensor 2/3-type progressive IT CCD
    effective pixels 2,456 x 2,058
    Cell size (H xV) 3.45 μm x 3.45 μm
    Output pixels (H xV) 2,448 x 2,048
    Output pixels
    (H xV, Full resolution)
    2,456 x 2,058
    Frame rate 15 fps
    Minimum Illumination (50%) 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter 1/15 s)
    Sensitivity F8 (400 lx, Gain:0 dB)
    S/N ratio More than 50 dB
    Gain Auto, Manual: 0 dB to +18 dB
    Shutter speed 2 s to 1/100,000 s
    Readout features Binnarization, Gamma (variable), Built-in test pattern, LUT
    Readout modes Normal, Binning (2 x 1, 1 x 2, 2 x 2), Partial scan
    Synchronization Hardware trigger, Software trigger
    Trigger modes Edge detection, Pulse width detection, Bulk Trigger, Sequential Trigger
    Memory channel (Usersets) 16 channels
    User memory 32 kbytes + 64 bytes x 16ch
    Other features Shading correction, Defect correction,Temperalure
    Video Data Output 8, 10, 12-bit, digital
    Digital interface LVDS
    Camera specification PoCL, CameraLink© Version1.2
    Digital input/output TTL IN (x3),TTL OUT (x3)
    Lens Mount C Mount
    Power requirements DC +12 V (+10.5 V to +15.0 V)
    Power consumption 3.2 W (typical)
    Operating temperature -5°C to +45°C (23°F to +113°F)
    Performance guarantee
    temperature
    0°C to 40°C (32°F to +104°F)
    Storage temperature -30°C to +60°C (-22°F to +140°F)
    Operating humidify 20% to 80% (no condensation)
    Storage humidify 20% to 95% (no condensation)
    Vibration resistance 10 G (20 Hz to 200 Hz)
    Shock resistance 70 G
