  • Sony XCL5005 Camera Link Camera

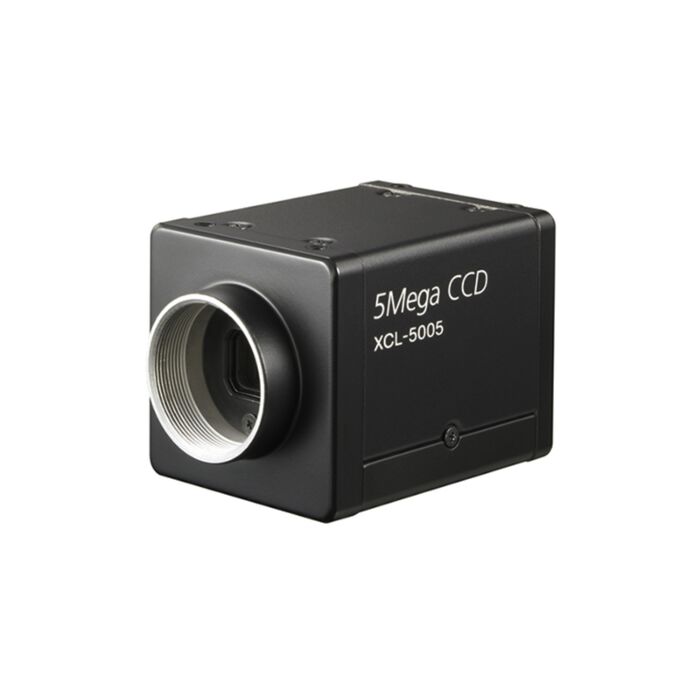

Sony XCL-5005 Camera Link Camera

Quick Overview

2448 x 2050 (5MP), 15 full fps, 2/3-type PS IT CCD PoCL Monochrome (Black & White) Camera Link Camera. Available in a Raw Color Model, XCL-5005CR.
Overview

Sony is expanding its Camera LinkTM family with the introduction of the XCL-5005 (B/W) and XCL-5005CR (Color) Digital Cameras for demanding industrial-inspection applications. Both the XCL-5005 and XCL-5005CR cameras incorporate a 2/3-type progressive scan IT CCD that produces ultra-high resolution images of over 5,000,000 effective pixels at 15 fps. In addition, these cameras employ the standard Camera Link interface,which is switchable to PoCL (Power over Camera Link) enabling users to simplify connections to various machine-vision systems. These cameras are compatible with standard C-mount lenses adding to their cost-effectiveness.

The XCL-5005 and XCL-5005CR feature a multitude of functions useful in machine-vision applications, such as vertical and horizontal partial scanning, built-in real-time hardware pre-processing, and flexible high-speed outputs. These robust cameras are highly resistant to shock and vibration which is essential for machine-vision applications. These feature-rich, ultra-high resolution digital cameras capture clear, fast moving objects or still images in low light environments. They are an ideal solution for today’s wide range of industrial machine vision applications such as semiconductors, electronic display and large part inspection, and bio-science/microscopy applications.

Features:

  • Ultra-High Resolution Image Capture
  • Supports both PoCL and Standard Camera Link
  • Vertical and Horizontal Partial Scanning
  • Hardware Pre-processing
  • C-mount Lens Interface
  • Compact and Lightweight
  • 1 3/4 (W) x 1 3/4 (H) x 2 3/8 (D) inches
  • (44 x 44 x 57.5 mm)
  • (excluding protrusions)
  • Approx. 4.6 oz (130 g)
  • External Trigger Shutter
  • 2 to 1/10,000 s
  • Binning Function (XCL-5005 only)
  • Built-in Test Pattern
  • Specifications
    Image Device 2/3-type progressive scan IT CCD
    Standard picture size (H x V) 2448 x 2050 (5,018,400 pixels)*
    Cell size 3.45 x 3.45 µm
    Resolution depth 8/10/12 bits/pixel
    Lens mount C mount
    Digital interface Standard Camera Link (Base Configuration)/PoCL (Power over Camera Link)
    Frame rate 15 fps
    Output data clock 80 MHz (1 Tap)
    40 MHz (2 Taps)
    Sensitivity 400 lx F5.6 (0dB)
    Minimum illumination 1 lx (GAIN +18dB, F1.4)
    Gain control 0 to +18 dB
    Readout modes Normal, Binning (1x2), Partial scan (by 1 line increments)
    Shutter speed 2 to 1/10,000 s
    Shutter mode External trigger shuter (Trigger start/Trigger start and exposure duration)
    Readout features Gamma : OFF/ON (Arbitrary setting)
    DTL filter (Edge detection/emphasis),
    3x3 matrix filter, Binarization
    Extended signal output DVAL/EXPOSURE/GND output (selectable)
    Power requirements DC 12V
    Power consumption Max. 3.8 W
    Dimensions 1 3/4 (W) x 1 3/4 (H) x 2 3/8 (D) inches ( 44 x 44 x 57.5 mm), (excluding protrusions
    Weight Approx. 4.6 oz (130 g)
    Operating temperature 23 to 113 °F (-5 to 45 °C)
    Storage temperature -22 to 140 °F (-30 to 60 °C)
    Operating humidity 20 to 80 % (no condensation)
    Storage humidity 20 to 95 % (no condensation)
    Vibration resistance 10 G (20 to 200 Hz)
    Shock resistance 70 G
    Supplied accessories Lens mount cap, Operating instructions
