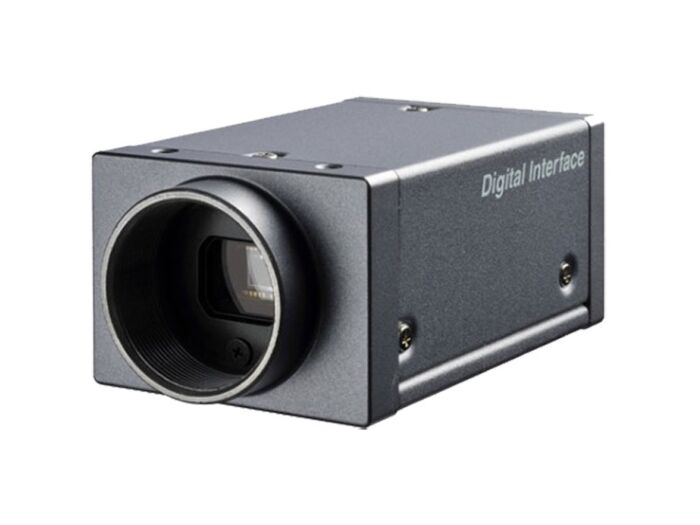

Sony XCG-SX99E GigE Camera

Quick Overview

1360 pixels x 1024 pixels, 2/3"-type PS IT CCD, 27 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)

Availability: In stock

More Views

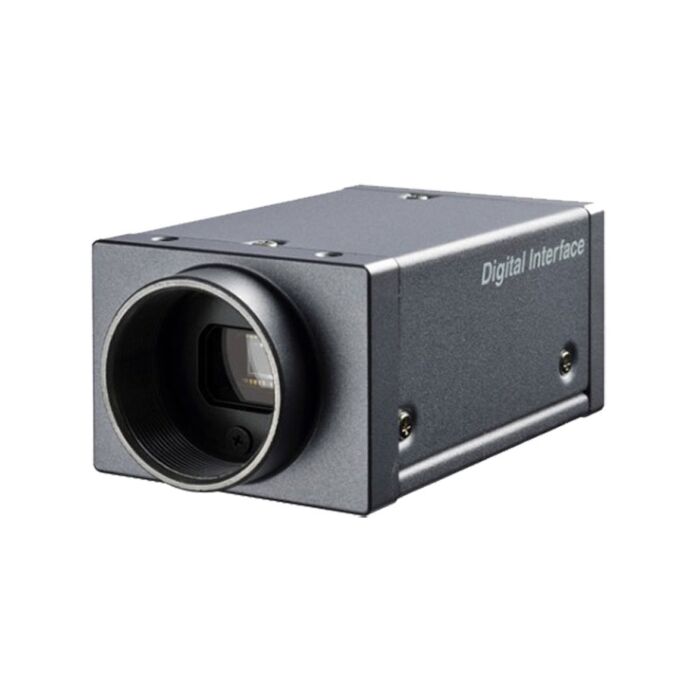

Sony XCG-SX99E GigE Camera.

  • Model: /x/c/xcg-5005cr_1_5.jpg

Additional Information

Overview

The XCG-SX99E camera is ideally suited for machine vision, security (IR wavelength coverage) and intelligent traffic applications (ALPR – automatic license plate recognition).



  • Progressive Scan Monochrome CCD
  • VGA, SXGA, UXGA and 5 MP versions
  • GigE Vision compliance (Ver 1.0)
  • Variety of trigger modes
  • Power on LED settings
  • Sony Image Filter Dedicated Driver
  • XML File (GenICam Compliance)
  • Bulk Trigger Mode and Sequential Trigger Mode
  • High Shock and Vibration Resistance
  • Two connectors: RJ-45 (locking – 20mm pitch) EIAJ -12 pin (power, trigger-in, strobe-out, isolated digital I/O)
  • Compact & Lightweight: 44 x 33 x 67.5 mm/ 145g.
Specifications

XCGSX99E
Image Device
2/3-type Progressive Scan IT CCD
Cell Size (H x V) 6.45 x 6.45 μm
Std. Picture Size (H x V) 1,360 x 1,024 pixels
Resolution depth 8/10/12 bits/pixel
Lens mount C mount
Std. Frame Rate 27 fps
Digital interface 1000 BASE-T (GigE Vision compatible)
Sensitivity - 0dB 400 lx at F8
Min. Illumination F1.4 +18dB Less than 0.4 lx (Gain +18dB, F1.4)
Gain control Manual 0 to +18dB, Auto gain
Readout mode Normal/Binning/Partial scan
Binning Vertical (1x2)
Partial scan Vertical/Horizontal
Shutter speed 2 to 1/100,000 s
External trigger shutter Pulse-edge detection mode, Pulse-width detection mode, Special trigger mode (Bulk trigger mode/Sequential trigger mode)
Memory channel 16 channels
Readout features Binnarization, Gamma correction (LUT), Built-in test pattern
Power requirements DC+10.5 to +15.0 V
Power consumption (Max.) 3.6 W
Dimensions 1 3/4 x 1 5/16 x 2 3/4 inches (44 x 33 x 67.5 mm)
Weight Less than 5 3/4 oz (145 g)
Operating temperature 23 to 113 °F (-5 to 45 °C)
Storage temperature -22 to 140 °F (-30 to 60 °C)
Operating humidity 20 to 80% (no condensation)
Storage humidity 20 to 95% (no condensation)
Vibration resistance 10 G (20 to 200Hz)
Shock resistance 70 G
Supplied accessories Lens mount cap, Operating instructions
Applications High-end Security and Factory Automation
Product Videos No
Accessories N/A
