Sony XCG-5005E 5 MP GigE Camera

Quick Overview

2448 pixels x 2048 pixels, 2/3"-type PS IT CCD, 15 fps, Gigabit Ethernet Camera. Available in Monochrome

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep

Click here to submit Product Inquiry

Availability: In stock

More Views

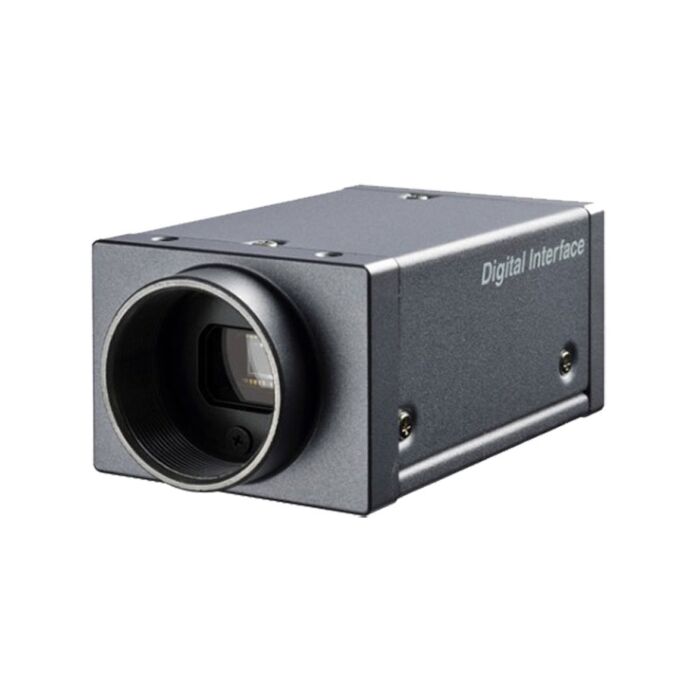

Sony XCG-5005E 5 MP GigE Camera.

  • Model: /x/c/xcg-5005e.jpg

Additional Information

Overview

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up - The XCG GigE Series. The XCG-5005E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG5005E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.



  • 2/3 type Progressive Scan IT CCD
  • 8/10/12 bits/pixel
  • GigE Vision Compliance (Ver 1.0)
  • 2448 x 2050 pixels
  • 15 fps
  • High Sensitivity - 400 lux @ F5.6 (o dB)
  • Compact & Lightweight: 44 x 33 x 67.5 mm (1 3/4 x 1 5/16 x 2 3/4 inches), 145g (less than 5 3/4 oz)
  • 2 to 1/10,000 sec
  • Partial Scanning & Binning Functions
  • High Shock and Vibration Resistance
Specifications

XCG-5005E
Image Device
2/3-type progressive scan IT CCD
Cell Size (H x V) 3.45 x 3.45 μm
Std. Picture Size (H x V) 2448 x 2048
Resolution depth 8/10/12 bits/pixel
Lens mount C mount
Std. Frame Rate 15 fps
Digital interface 1000BASE-T (GigE Vision compatible)
Sensitivity - 0dB 400 lx at F5.6
Min. Illumination F1.4 +18dB Less than 1 lx (Gain +18 dB, F1.4)
Gain control Manual 0 to +18dB, Auto gain
Readout mode Normal/Binning/Partial scan
Binning Vertical (1x2)
Partial scan Vertical/Horizontal
Shutter speed 2 to 1/100,000 s
External trigger shutter Pulse-edge detection mode, Pulse-width detection mode, Special trigger mode (Bulk trigger mode/Sequential trigger mode)
Memory channel 16 channels
Readout features Binnarization, Gamma correction (LUT), Built-in test pattern
Power requirements DC+10.5 to +15.0 V
Power consumption (Max.) 4.3 W
Dimensions 1 3/4 x 1 5/16 x 2 3/4 inches (44 x 33 x 67.5 mm)
Weight Less than 5 3/4 oz (145 g)
Operating temperature 23 to 113 °F (-5 to 45 °C)
Storage temperature -22 to 140 °F (-30 to 60 °C)
Operating humidity 20 to 80% (no condensation)
Storage humidity 20 to 95% (no condensation)
Vibration resistance 10 G (20 to 200Hz)
Shock resistance 70 G
Supplied accessories Lens mount cap, Operating instructions
Applications High-end Security and Factory Automation
Product Videos No
Accessories No

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up - The XCG GigE Series. The XCG-5005E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG5005E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.



  • 2/3 type Progressive Scan IT CCD
  • 8/10/12 bits/pixel
  • GigE Vision Compliance (Ver 1.0)
  • 2448 x 2050 pixels
  • 15 fps
  • High Sensitivity - 400 lux @ F5.6 (o dB)
  • Compact & Lightweight: 44 x 33 x 67.5 mm (1 3/4 x 1 5/16 x 2 3/4 inches), 145g (less than 5 3/4 oz)
  • 2 to 1/10,000 sec
  • Partial Scanning & Binning Functions
  • High Shock and Vibration Resistance

XCG-5005E
Image Device
2/3-type progressive scan IT CCD
Cell Size (H x V) 3.45 x 3.45 μm
Std. Picture Size (H x V) 2448 x 2048
Resolution depth 8/10/12 bits/pixel
Lens mount C mount
Std. Frame Rate 15 fps
Digital interface 1000BASE-T (GigE Vision compatible)
Sensitivity - 0dB 400 lx at F5.6
Min. Illumination F1.4 +18dB Less than 1 lx (Gain +18 dB, F1.4)
Gain control Manual 0 to +18dB, Auto gain
Readout mode Normal/Binning/Partial scan
Binning Vertical (1x2)
Partial scan Vertical/Horizontal
Shutter speed 2 to 1/100,000 s
External trigger shutter Pulse-edge detection mode, Pulse-width detection mode, Special trigger mode (Bulk trigger mode/Sequential trigger mode)
Memory channel 16 channels
Readout features Binnarization, Gamma correction (LUT), Built-in test pattern
Power requirements DC+10.5 to +15.0 V
Power consumption (Max.) 4.3 W
Dimensions 1 3/4 x 1 5/16 x 2 3/4 inches (44 x 33 x 67.5 mm)
Weight Less than 5 3/4 oz (145 g)
Operating temperature 23 to 113 °F (-5 to 45 °C)
Storage temperature -22 to 140 °F (-30 to 60 °C)
Operating humidity 20 to 80% (no condensation)
Storage humidity 20 to 95% (no condensation)
Vibration resistance 10 G (20 to 200Hz)
Shock resistance 70 G
Supplied accessories Lens mount cap, Operating instructions
Applications High-end Security and Factory Automation
