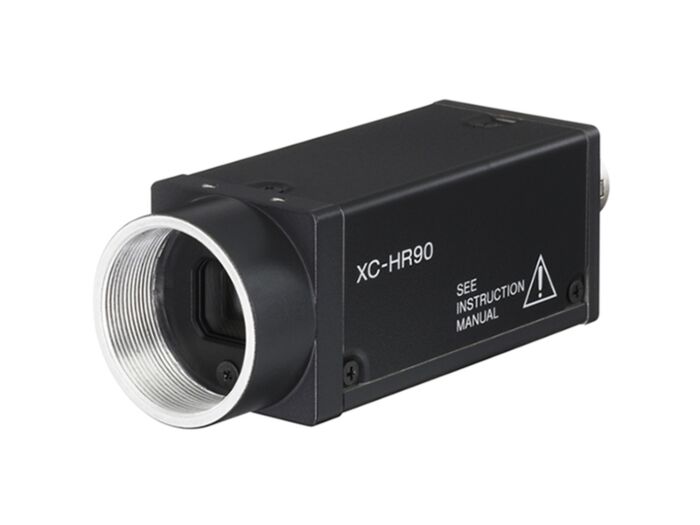

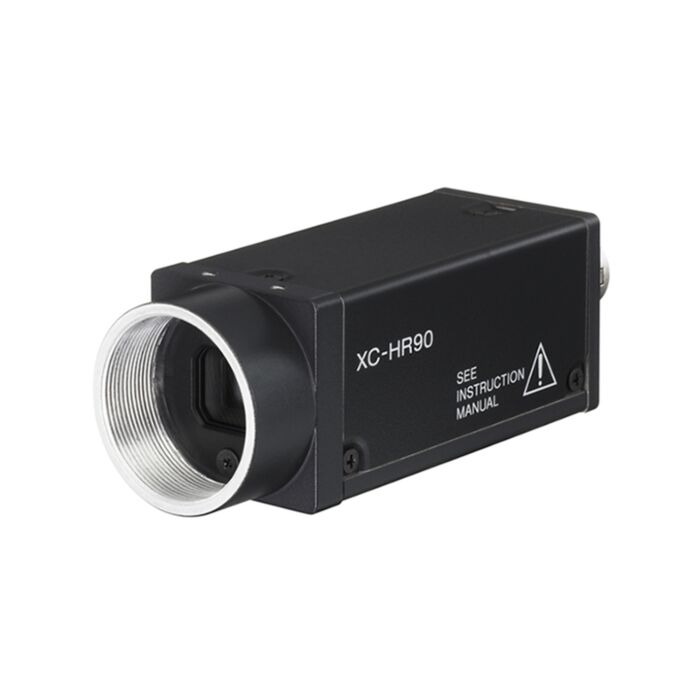

Sony XC-HR90 Analog Camera

Quick Overview

1280 x 960, Selectable full 15 or 30 fps, 1/3" PS IT CCD, Monochrome (Black & White) Analog Camera.
Overview

The XC-HR90 high speed/ high resolution camera incorporates a 1/3" Progressive Scan IT CCD with SXGA resolution of 1280 x 960 pixels with at a selectable frame rate of up to 15 or 30 full frames per second (fps). The XC-HR90 achieves high rate scanning up to 204.8 fps with 60 effective lines, selectable from 16 vertical divisions. In addition, all camera settings can be made via the camera's RS-232C interface. The XC-HR90 features a small and lightweight body with the same faceplate dimensions as the other models in the XC-HR series, enabling them to be easily interchanged for various applications and ideal for space restricted areas. The compact XC-HR90 camera possesses an unmatched combination of resolution, speed, and control, attributing to the continuous success of Sony as a market leader in the industrial environments of machine vision and beyond.

Features:

  • 1/3-type progressive scan CCD
  • SXGA resolution (1,280 x 960 pixels) image capture at a speed of 30 or 15 full fps
  • High-rate scanning
  • Readout of center 240 lines at 95.8 fps (set using dip switches)
  • Readout of 60 effective lines selectable from 16 vertical divisions at up to 204.8 fps
  • Horizontal Resolution: 960 TV Lines
  • Partial scan controlled by VD pulse length
  • Minimum illumination: 1.0lx at F 1.4
  • High S/N ratio: 56 dB
  • Electronic Shutter: 1/100 to 1/100,000sec
  • Specifications
    Image Device 1/3 type IT progressive scan CCD
    Effective Picture Elements 1296 (H) x 966 (V)
    Effective lines 1280 (H) x 960 (V) SXGA
    Cell Size 3.75 µm (H) x 3.75 µm (V)
    Scanning System/Output Signal Frequency 30.0 Hz (normal, 30 fps mode) 15.0 Hz (normal, 15 fps mode)
    4.1 Hz (binning, 30 fps mode), 30.0Hz (binning, 15 fps mode)
    Lens Mount C Mount
    Flange Mount 17.526 mm
    Sync System Internal/External (auto)
    External Sync Signal HD/VD (2.5 to 5 Vp-p 75 )
    Jitter Less then 20 ns
    Video Output 1.0 Vp-p, sync negative, 75 unbalanced
    Horizontal Resolution 960 TV Lines
    Sensitivity 400 lx F 5.6 ( = OFF, FIX, GAIN (0dB) )
    Minimum Illumination 11x (F 1.4, OFF, GAIN + 18 dB)
    S/N ration Gain Manual ( 0 to 18 dB)/FIX (0dB) adjustable on rear panel or via RS232 C)
    Gamma Off (fixed)
    White Clip Shutter 820 mV ±70 mV (F1.8, FIX GAIN (0dB))
    Normal Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/25,000, 1/50,000, 1/100,000s
    External Trigger Shutter Speed DIP switch settings 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/25,000, 1/50,000, 1/100,000 s Trigger pulse width settings ¼ to 100,000 s
    External Trigger Polarity: + Width: 2 µs to 250ms
    High Rate Scanning Input impendence: 10 K or more (H: +2.5 to 5.0V, L:0 to 0.6V) Readout of Center 480 Lines @ 56 fps, Readout of Center 240 Lines @ 95.8 fps (settable using DIP switches)
    External Trigger Mode MODE 1 - Readout of 60 effective lines selectable from 16 vertical divisions at max 204.8 fps (settable via RS-232C)
    Power Requirements DC 12 V (+10.5 V to + 15V)
    Power Consumption 2.8 W
    Dimensions 29 (W) x 29 (H) x 63.5 (D) mm , 13/16 x 13/16 x 2 ½ inches)
    Mass 80 g (28 oz)
    Operating Temperature -5 to 45 °C (23 to 113 °F)
    Storage Temperature -30 to 60 °C (-22 to 140 °F)
    Operating Humidity 20 to 80% no Condensation
    Storage Humidity Storage Humidity
    Vibration Resistance 10 G (20 Hz to 200 Hz)
    Shock Resistance 70 G
    Supplied Accessories Lens mount cap (1), Operating instructions (1)
