  • Sony XCHR70 Analog Camera

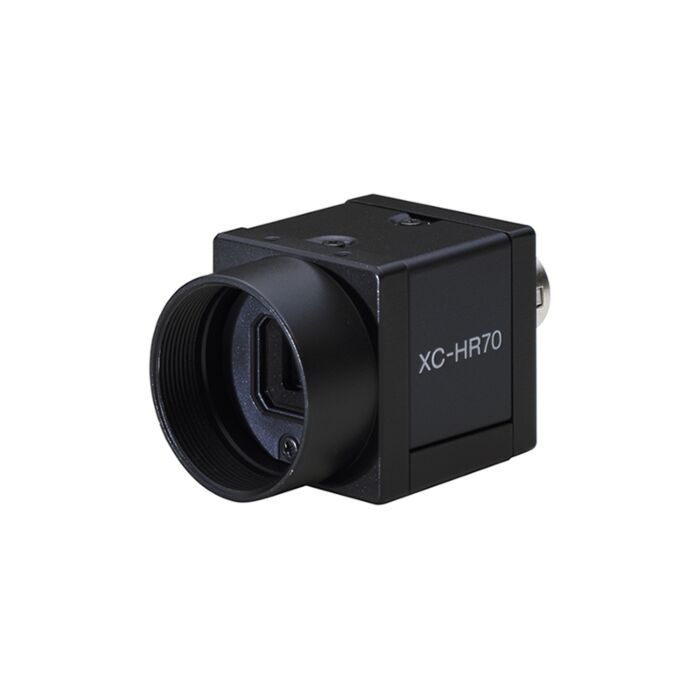

Sony XC-HR70 Analog Camera

Quick Overview

1,024 x 768, 29 full fps, 1/3 Type PS IT CCD, Monochrome (Black & White) Analog Camera.
Overview

The XC-HR70 industrial camera is an ultra-compact monochrome camera module ideal for high speed, high resolution imaging processing applications. The XC-HR70 camera incorporates a 1/3 type progressive scan CCD that can capture high quality, XGA resolution images (1024 x 768) at 29 frames/sec. In addition, the XC-HR70 features a “high scanning” function that increases the camera’s vertical scanning frequency so that images can be captured up to 120 frames/sec. .

Also, the XC-HR70’s compact and lightweight body makes it easy to install in space-restricted areas. With high-speed capturing capability offered in a compact body, the XC-HR70 is ideal for demanding inspection applications such as semiconductor production and high-speed assembly lines.

Features:

  •  High resolution image capturing
        - XGA resolution (1024 x 768 pixels) image capturing at a
          speed of 29 frames/s
        - 1/3 type progressive scanning CCD with square pixels
        - Effective picture element: 1034 (H) x 779 (V)
  •  High-rate scanning
     Up to 120 frames/s
     (Effective line: 152 lines) (at restart/reset ON, Binning OFF)
  •  Compact and lightweight
     1 3/16 x 1 3/16 x 1 3/16 inches, 1.8 oz
    (29 (W) x 29 (H) x 30 (D) mm, 50 g)
  •  External trigger shutter 1/4 to 1/100,000 s
  •  Electronic Shutter 1/100 to 1/20,000 s (8 steps with switches)
  •  Synchronization Internal/External (HD/VD)
  •  C-mount system
  •  Compliant with new EIAJ 12-pin connector pin assignments
  •  High shock and vibration tolerant – 10G/ 70G
  •  Lead-free solder board
  • Specifications
    Image Device 1/3 type IT progressive scan CCD
    Effective Picture Elements 1034 (H) x 779 (V)
    Effective lines 1024 (H) x 768 (V)
    Image size XGA size : 1024 (H) x 768 (V)
    CCD vertical drive frequency 23.23 kHz +–1 %
    CCD horizontal drive frequency 29.5 MHz
    Cell size 4.65 (H) x 4.65 (V) µm
    Lens mount C mount
    Flange back 17.526 mm
    Sync system Internal/External (auto)
    External sync signal HD/VD (2 to 5 Vp-p)
    External sync allowable frequency +–1 % (in horizontal sync frequency)
    Jitter Less than 20 ns
    Scanning system Non-interlace
    Output signal frequency 29.2 Hz (normal mode), 58.4 Hz (binning mode)
    Video output 1.0 Vp-p, sync negative, 75 ., unbalanced
    Horizontal resolution 800 TV lines
    Sensitivity 400 lx, F5.6 (with FIX GAIN)
    Minimum illumination 1 lx (F1.8, GAMMA OFF, +18 dB GAIN)
    S/N ratio 56 dB (0 dB GAIN)
    Gain Manual (0 to 18 dB)/Fix (0 dB) selectable
    Gamma OFF (fixed)
    White clip 820 mV +–70 mV (F1.8, FIX GAIN)
    Shutter Normal shutter, Restart/Reset, External trigger shutter (Mode 1/Mode 2)
    Normal shutter speed 1/100 to 1/20,000 s
    External trigger shutter speed 1/4 to 1/100,000 s
    High-rate scanning R/R mode binning off: max 120 frames/s (effective line: 152 lines) binning on: max 180 frames/s (effective line: 89 lines)
    External trigger shutter mode (MODE 1) binning off: max 120 frames/s (effective line: 153 lines) binning on: max 180 frames/s (effective line: 90 lines)
    Power requirements DC 12 V (+10.5 V to +15 V)
    Power consumption 2.0 W
    Dimensions 1 3/16 x 1 3/16 x 1 3/16 inches (29 (W) x 29 (H) x 30 (D) mm)
    Weight 1.8 oz (50 g)
    Operating temperature -5 to 40 °C (23 to 113 °F)
    Storage temperature -30 to 60 °C (-22 to 140 °F)
    Operating humidity 20 to 80 % (no condensation)
    Storage humidity 20 to 95 % (no condensation)
    Vibration resistance 10 G (20 Hz to 200 Hz)
    Shock resistance 70 G
    MTBF 88.044 hrs.
    Regulation UL 6500, FCC Class A Digital Device, CE (EN61326/97+A1/98), AS4251.1+A4252.1
    Supplied accessories Lens mount cap (1), Operating instructions (1)
