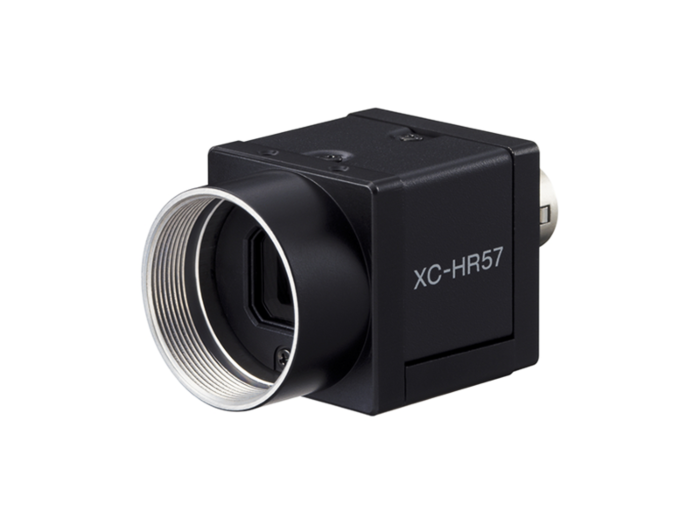

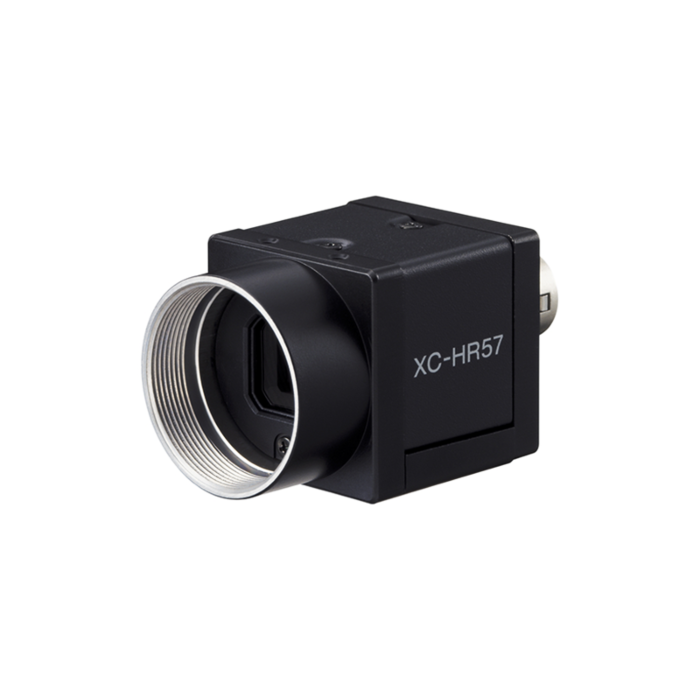

  • Sony XCHR57 Progressive Scan Analog Camera Image

Sony XC-HR57 Analog Camera

Quick Overview

659 x 494, 60 full fps, 1/2 type IT PS CCD, Monochrome (Black & White) Analog Camera.
Overview

Sony's new XC-HR57 progressive scan CCD camera is ideal for those applications that require a large format CCD to fit the optics or maintain a field of view. The XC-HR57 incorporates a 1/2" Progressive Scan CCD with VGA resolution (640x480) at 60 full frames/sec (120 binned frames/sec). This camera expands the range of products in Sony's XC-HR (high rate) series of high-speed, compact cameras. Offering excellent performance, dependability and compact design, this camera is ideally suited for high-speed inspection applications.

Features:

  •  1/2 type Progressive Scan CCD
  •  High Resolution - VGA resolution (640 x 480)
  •  High Frame Rate & High Rate Scanning - 60 full frames/second / 120  binned frames/second
  •  Partial Scan controlled by VD pulse switch
  •  Square pixels
  •  Minimum Illumination of 1 lux @ F1.4
  •  Small, lightweight one-piece body - 29 (W) x 29 (H) x 30 (D) / 50 g
  •  All controls are external for easy configuration
  •  C Mount - No IR cut off filter
  • Specifications
    Image Device 1/2 type Progressive Scan CCD
    Effective Picture Elements 659 (H) x 494 (V)
    Image Size VGA 640 (H) x 480 (V)
    Lens Mount C Mount
    Scanning System 60 Hz Non-Interlaced
    External Sync Signal HD/VD (2 to 5 Vp-p)
    Video Output

    1 Vp-p, Sync negative, 75 ohms unbalanced

    Horizontal Resolution 500 TV lines
    Minimum Illumination

    1 lx (F1.4, Manual Gain MAX)

    S/N Ratio 58 d
    Gain Manual (0 to 18 dB)/ Fixed (0 dB) selectable
    Shutter

    Normal Shutter: OFF to 1/30,000 sec with switches Restart/Reset Async External Trigger Shutter (Non-Reset, Reset) Switchers or with Trigger Pulse Width

    Gamma 1 (Fixed)
    Normal Shutter Speed  1/100 to 1/30,000 sec
    External Trigger Shutter Speed 1/4 to 1/100,000 sec
    High Rate Scanning - R/R Mode Binning Off: Max. 240 frames/sec (131 lines)
    Binning On: 360 frames/sec (87 lines)
    Vibration Resistance 10 G (20Hz to 200 Hz)
    Shock Resistance 70 G
    Operating Temperature -5° C to 45° C (23° F to 113 ° F)
    Storage Temperature  -30° C to 60° C (-22° F to 140° F)
    Operating Humidity 20 to 80% (no condensation)
    Storage Humidity 20 to 95% (no condensation)
    Power Requirements DC 12V (+10.5V to 15V)
    Power Consumption 1.8 W
    Weight  50 g (1.8 oz)
    Dimensions (W x H x D) 29 x 29 x 30 mm (1-3/16 x 1-3/16 x 1-3/16 inches)
    Regulations UL 6500 listed, FCC Class A Digital Device, CE (EN61326/97+A1/98), AS4251.1+A4252.1
