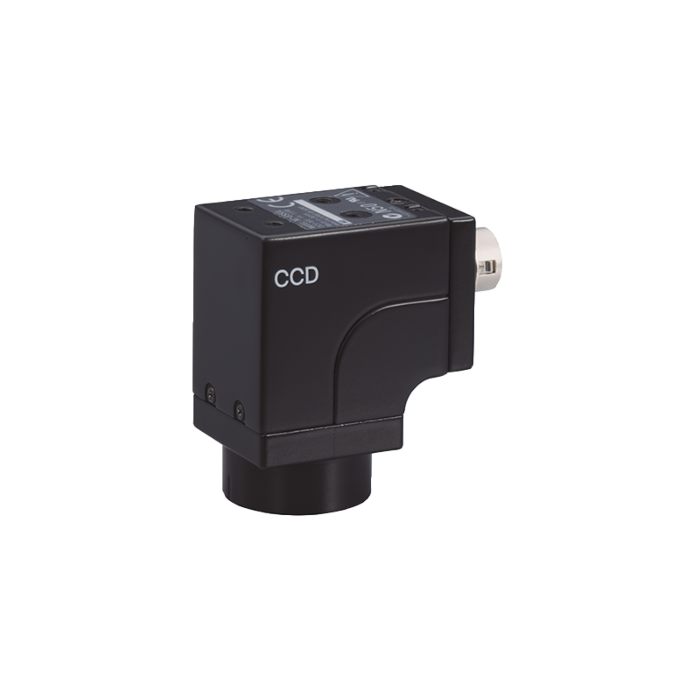

Sony XC-ES51CE (XCES51CE) CCIR Analog Camera

768 x 494, High Sensitivity 1/2 type IT CCD Monochrome (Black & White) CCIR Analog Camera. Also available in EIA Model, XC-ES51.
SKU
Sony XCES51CE Black and White Analog Camera, CCIR

The new XC-ES51CE camera incorporates Sony's NEW high sensitivity 1/2 type IT CCD. With its high sensitivity of 0.2 lux @F1.4, the XC-ES51CE camera is ideal for demanding machine vision applications. The XC-ES51CE camera features the same compact and lightweight design as the XC-ES camera series, making them easy to interchange. The XC-ES51CE cameras measure 29(W) x 29(H) x 32(D) mm and weigh only 50g.

Features:

  •  New 1/2 type IT CCD
  •  High Sensitivity - 0.2 lux @F1.4
  •  Small and lightweight
  •  C-Mount
  •  Electronic shutter function - 1/100 to 1/10,000 s
  •  All controls outside the camera
  •  Flexible trigger shutter functions
  •  Frame/Field exposure
  •  High vibration and shock characteristics (10G / 70G)
  •  Synchronization: internal/external (HD/VD, VS)
  •  Small and light weight power adaptor (DC-700CE)
  • Image device 1/2" Interline Transfer CCD
    Effective picture elements 752(H) x 582 (V)
    Signal system CCIR
    Horizontal frequency

    15.625 kHz

    Vertical frequency 50 Hz
    Cell Size 8.6 x 8.3µm
    Lens mount C mount
    Flange back 17.526 mm
    Sync system Internal / External (auto)
    External sync system

    HD / VD (2 to 5 Vp-p), VS

    External sync frequency +/- 1%
    Jitter Less than +/- 50 nsec
    Scanning system 2:1 Interlaced
    Video output 1.0 Vp-p, negative, 75 unbalanced
    Horizontal resolution 560 TV lines
    Sensitivity 400 lx F5.6
    Minimum illumination 0.2 lx
    S/N ratio 60 dB
    Gain AGC / Manual Selectable
    Gamma ON / OFF
    Normal shutter 1/120 to 1/10,000 s
    External trigger shutter 1/4 to 1/8,000 s
    Power requirements DC12 V (+9 to 16 V)
    Power consumption 1.6 W
    Dimensions 29 (W) x 29 (H) x 32 (D) mm
    (1 3/16 x 1 3/16 x 1 5/16 inches)
    Mass 50 g (2 oz)
    Operation temp./mois. 23 to 104° F ( -5 to 45°C) / 20 to 80%
    Storage temp./mois. -22 to + 140° F (-30 to +60°C) / 20 to 95%
    Vibration 10 G (20 to 200 Hz)
    Shock resistance 70 G
    Regulatory compliance UL 1492, FCC Class B Digital Device (EN61326/97 +A1/98), AS4251.1 + AS4252.2
    MTBF 126,000 hrs
