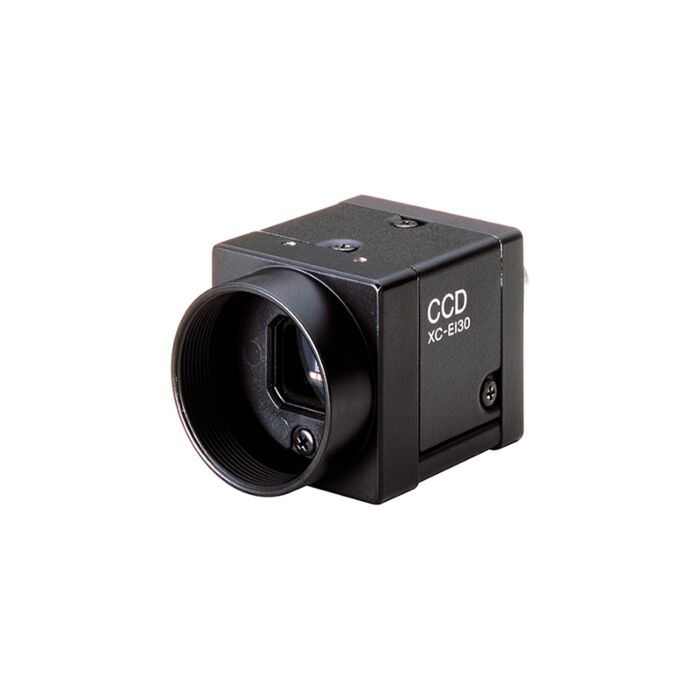

  • Sony XCEI30 Near IR EIA Analog Camera Image
  • Sony XCEI30 Near IR EIA Analog Camera Image back

Sony XC-EI30 Near Infrared EIA Analog Camera

Quick Overview

768 x 494, 1/3-type IT CCD, Near IR Monochrome (Black & White) EIA Analog Camera. Also available in CCIR Model, XC-EI30CE.
Overview

Specifically designed for image processing and machine vision professionals, Sony's XC-EI30 is the smallest and lightest one-piece 1/3-inch analog B/W video camera in the company's line to date. It features the same CCD technology and improved specifications that are incorporated in the XC-ST70/50/30 series (e.g., simplified and flexible trigger, excellent vibration and shock characteristics) but in an even smaller and lighter package. In order to achieve this extremely small size, the BNC connector has been removed from the XC-EI30 camera. This camera incorporates the latest 1/3" Interline Transfer (IT) CCD with HAD technology providing 768 (H) x 494 (V) effective picture elements and feature a C-mount type lens mount. When used with an IR LED illuminator, this camera can capture images in very low light environments and/or easily detect features that are more distinguishable in IR illumination.

Features:

  •  High sensitivity using the 1/3" CCD with HAD technology
  •  All controls outside the camera
  •  Simplified and flexible trigger
  •  Smallest and lightest, one piece analog B/W video camera offered by Sony
  •  Excellent vibration and shock characteristics (10G / 70G)
  •  Small and light weight power adaptor (DC-700/700CE)
  • Specifications
    Image Device 1/3" Interline Transfer CCD
    Signal System EIA Standard
    Effective Picture Elements 768 (H) x 494 (V)
    Horizontal Frequency 15.734 kHz
    Vertical Frequency 59.94 Hz
    Cell Size 6.35 x 7.4 µm
    Lens Mount C Mount
    Flange Back 17.526 mm
    Sync System Internal/External (auto)
    External Sync System HD / VD (2~5 Vp-p)
    External Sync Frequency + / - 1%
    Jitter Less than + / - 50 nsec
    Scanning System 2:1 Interlaced
    Video Output 1.0 Vp-p, negative, 75ohms unbalanced
    Horizontal Resolution 570 TV Lines
    Minimum Illumination 0.2 lx
    S/N Ratio 60 dB
    Gain AGC (0-18 dB) / Manual (0-18 dB) selectable
    Gamma ON / OFF
    External Trigger Shutter 1/4 ~ 1/10,000 S
    Normal Shutter 1/100 ~ 1/10,000 S
    Power Requirements DC-12V (+9 ~ 16V)
    Power Consumption 1.4 W
    Dimensions 29 (W) x 29 (H) x 32 (D) mm / 1- 3/16 x 1-3/16 x 1-5/16 inches
    Mass 50 g
    Operation Temperature/Moisture -10 ~ +50° C / 20 ~ 80%
    Storage Temperature/Moisture -20 ~ +60° C / 20 ~ 95%
    Vibration 10 G (20 ~ 200 Hz)
    Shock Resistance 70 G
    Regulations UL 1492, FCC Class A Digital Device (EN50081-2 + EN50082-2), AS4251.1 + AS4252.2
