  • Sony RM-IP500 Image 1
  • Sony RM-IP500 Image 2

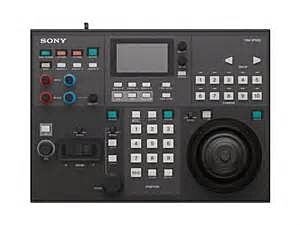

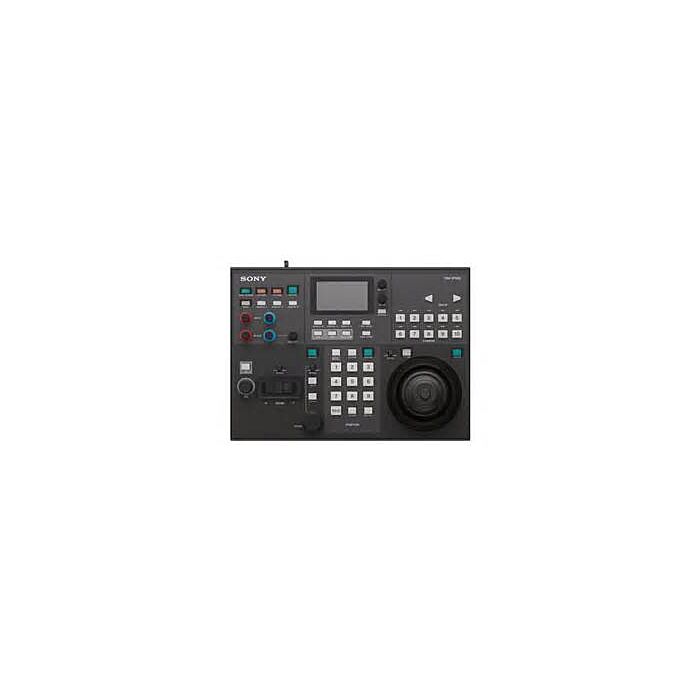

Sony RM-IP500 Remote Controller PTZ Camera

Quick Overview

VISCA RS-422 : RJ-45 x 1 Input Connections





Overview

Easy, ergonomic PTZ control of multiple remote cameras for live events production and contents creation This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently-needed camera functions.

The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications - from live events to conference halls, broadcast studios, education institutes and houses of worship. PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100* combinations of camera angles and settings can be stored as presets. Trace Memory* allows a sequence of camera moves to be stored and recalled whenever required.

Up to 100 compatible Sony BRC or SRG Series PTZ remote cameras can be controlled over a standard IP network. Set-up's simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each. Full compatibility is provided with these Sony PTZ remote camera models: BRC-X1000, BRC-H900, BRC-H800, SRG- 360SHE. The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.

Features:

  • High-quality control of PTZ functions
  • Control up to 100 BRC or SRG cameras via IP
  • Simple set-up
  • Trace Memory *
  • Store and recall camera presets
  • Tally indicator
  • Adjust camera paint functions
  • * Depends on camera specification. Version up might be required.

    Applications:

  • Live Events
  • Conference Halls
  • Broadcast Studios
  • Education Institutes
  • Houses of Worship
  • Specifications
    Control Input/Output VISCA RS-422 : RJ-45 x 1
    GPI I/O (Tally In/Contact Out) : D-Sub 15-pin (female)
    LAN : RJ45 x 1, 10BASE-T/100BASE -TX automatically detected
    Control Signal Format 9,600 bps/38,400 bps, Data : 8 bit, Stop bit : 1 (for RS-422 communication)
    VISCA over IP communication
    Power Connector JEITA type 4 (DC IN 12V), Seperate option
    Input Voltage  12V DC (10.8 to 13.2 V DC)
    Current Consumption 0.24A typ. (2.4W)
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -20°C to 60°C (-4°F to 140°F)
    Dimensions  306 mm x 159.3 mm x 224.1 mm (12 1/8 inches x 6 3/8 x 8 7/8)
    Mass Approx. 2400g

    Sony's RM-IP500 (RMIP500) PTZ Controller

    Sony RM-IP500
