  • Sony BRC-H800 Image 1
  • Sony BRC-H800 Image 2

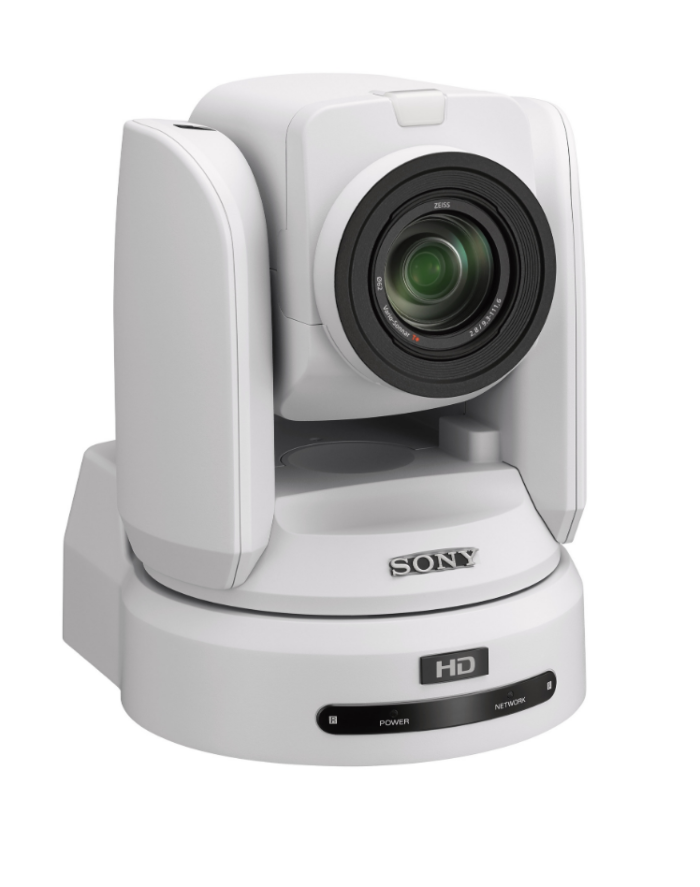

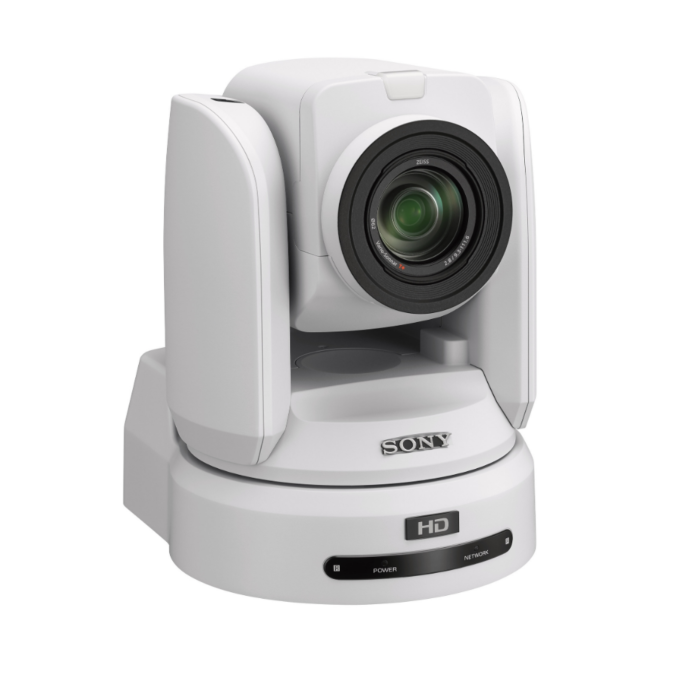

Sony BRC-H800 12x Optical Zoom (Approx. 1420 Megapixels) HD PTZ camera

Quick Overview

1-type Exmor R CMOS, Clear Image Zoom 24x(HD), 1.7 lx minimum illumination.

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention. Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.


  • Enhanced Pan/Tilt/Zoom (PTZ) operation
  • Broadcast quality Full HD 60p images
  • Cinematic 24p pictures*
  • High quality 12x optical zoom and 24x(HD) with Clear Image Zoom
  • Excellent low light sensitivity
  • Flexible installation
  • Remote operation
  • Genlock
  • Versatile video outputs
  • Front and rear tally lamps
  • Always up to date

  • Applications:

  • Live Sports/Broadcasts
  • House Of Worship
  • Professional Broadcast
  • Auditoriums
  • Courtrooms
  • Specifications
    Image Sensor
    1-type Exmor R CMOS
    Image Sensor (Number of Effective Pixels)
    Approx. 1420 Megapixels
    Signal System
    1080/59.94P,1080/59.94I,720/59,94P, 1080/50P,1080/50I, 720/50P
    Minimum Illumination
    1.7Lx (50IRE, 1/30s, Iris/Gain Auto)
    Auto/Manual (-3dB to +33dB)
    Shutter Speed
    1/10000s to 1/8 (59.94/29.97)
    1/10000s to 1/6 (50/25)
    Exposure Control
    Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), EV compensation, Back light, Spot light
    White Balance
    Auto1/Auto2/One Push/Indoor/Outdoor/Manual
    Optical Zoom
    Clear Image Zoom 2x
    Focusing System Auto/Manual
    Horizontal Viewing Angle 64.6° (Wide-end)
    Focal Length f=9.3 to 111.6mm
    F2.8(Wide) ,F4.5(Tele)
    Pan/Tilt Angle Pan: ±170°
    Tilt: +90°/-30°
    Pan/Tilt Speed Pan: 0.3° to 60°/s
    Tilt: 0.3° to 60°/s
    Preset Position 16*
    Day/Night Yes
    Flicker Cancel On/Off
    4K Video Output No
    HD Video Output 3G-SDI x2 and HDMI
    Camera Control Interface RS-422(VISCA) VISCA Over IP
    External Sync. Input Yes
    Power Requirements DC 10.8V to 13.2V, PoE+(IEEE802.3at compliant)
    Operating Temperature 0 °C to 40 °C - 32 °F to 104 °F
    Dimensions (W x H x D)*1 Approx. 198 x 260 x 238mm (without projecting object)
    Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object)
    Mass Approx. 9lb 7.7oz
    Body Color Black
    Ceiling Mount Yes
