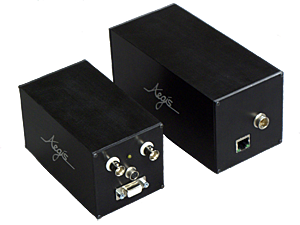

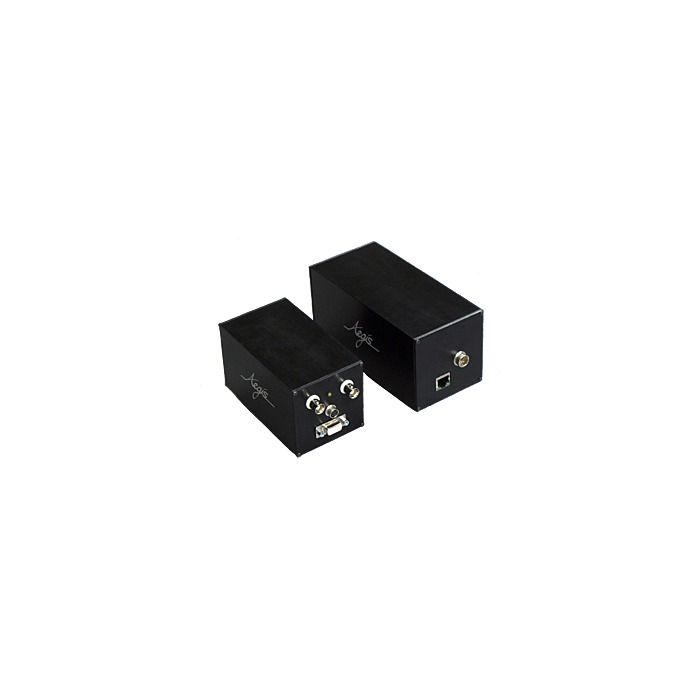

Sony AEG-6300-SDI, AEG-6300-GE, AEG-6300-HDMI* Block Camera Assemblies

Quick Overview

Incorporating Sony's latest FCB-EH6300 1080p block camera, our new complete camera assemblies offer a perfect solution for applications requiring a ruggedized housing with flexible configurations for indoor and outdoor environments.
Overview

Incorporating Sony's latest FCB-EH6300 1080p block camera, our new complete camera assemblies offer a perfect solution for applications requiring a ruggedized housing with flexible configurations for indoor and outdoor environments.

Ideally suited for Surveillance, Low Vision, Broadcasting, Medical, Law Enforcement, EOD Tactical Robotic, POV, UAV, Machine Vision and many more.

Features :

  • 1/2.8-type Exmor CMOS sensor.
  • 20X Optical Zoom (f=4.7mm (wide) to 94.0mm (tele)).
  • HDSDI or NTSC Output (Optional HDMI, HD Component and GigE also available).
  • 1.7 Lux.
  • Day/Night Mode.
  • Auto White D mode.
  • E-Flip.
  • Mirror Image.
  • 1/4-20 Standard Mounting Bracket.
  • Specifications
    Image Sensor
    1/3-type CMOS
    Number of total pixels
    2M pixels
    Lens
    20x optical zoom, F1.6 to F3.5, f=4.7 mm (wide) to 94.0 mm (tele)
    Digital Zoom
    12x (240x with optical zoom)
    Minimum object distance
    10 mm (wide end) to 1,000 mm (tele end)
    S/N ratio
    More than 50 dB
    Electronic shutter
    1/2 to 1/10,000 s
    White balance
    Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium Vapor Lamp (Fix/Auto)
    Gain control
    Auto/Manual (-3 dB to +28 dB, +2 dB step/total 16 steps
    Focusing system
    Full Auto (Normal AF/Interval AF/Zoom AF) One-push Trigger, Manual. Infinity
    Signal system
    1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50
    NTSC
    720p/59.94, 720p/50, 720p/29.97, 720p/25
    PAL
    One mode out of 12 modes can be selected
    Video Output

    HD-SDI Options: (Y/Pb/Pr, HDMI, GigE)

    VBS:1.0 Vp-p (Sync Negative)
    Sync System
    Internal
    Camera control interface
    RS232 signal level
    Storage temperature
    -40°C to +85°C
    Operating temperature
    -5°C to +60°C
    Power consumption
    12.0V DC / 5.0W
    Dimensions (w x h x d)
    HDSDI: 4.60" x 2.75" x 2.75" / GigE: 6.25" x 3.00" x 3.00"
    Accessories (included)
    1/4 - 20 standard mounting bracket
    Optional Accessories
    12V DC Power Suppy for HDSDI (ACY415A)
    12V DC Power Supply for GigE (PD12P)
    Push Button Controller - (HDSDI only)
    BNC Cables (2m, 5m, 10m)
    RS232 Cables (2m, 5m, 10m, 15m)
    Video Cables
    HDSDI Cables
    Gigbit Ethernet Cables

    * Coming soon

    ** All specification information is subject to change without notice
