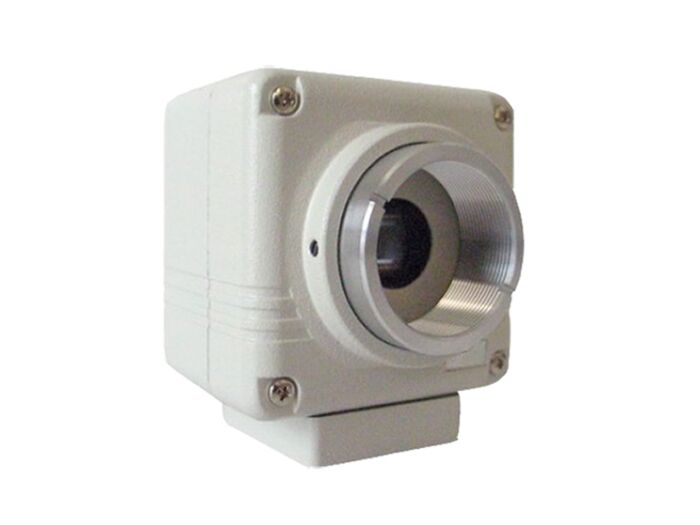

Sentech STC-TC202USB-A Machine Vision Camera Progressive Scan Color Cameras

Quick Overview

The STC-TC202USB is a compact, progressive scan, UXGA, USB cameras with a 1/1.8" color CCD, featuring 15fps (UXGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.

Availability: In stock

More Views

Additional Information

Overview

The STC-TC202USB is a compact, progressive scan, UXGA, USB cameras with a 1/1.8" color CCD, featuring 15fps (UXGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.

Specifications
 Specifications
Signal Format UXGA Color
Image Sensor: 1/1.8” CCD
Minimum Frame Rate:
Full Scan
15.32 fps
1/2 Partial Scan
30.63 fps
1/4 Partial Scan
61.27 fps
Total Picture Element: 1688(H) x 1248(V)
Effective Picture Element: 1628(H) x 1236(V)
Active Picture Element:
Full Scan
1600(H) x 1200(V)
1/2 Partial Scan
1600(H) x 548(V)
1/4 Partial Scan
1600(H) x 208(V)
Chip Size: 8.50 (H) x 6.80 (V) mm
Cell Size: 4.40 (H) x 4.40 (V) µm
Pixel Clock Frequency: 36.818MHz
Scanning Method: Full, Partial scanning (1/2, 1/4), Variable
Sync System: Internal Sync
Scanning System: Progressive
Shutter Speed: Auto / Manual (Software Selectable)
Minimum Illumination: 9.5 Lux at F1.2
Gain: Auto / Manual (Software Selectable)
Gamma: Manual (Software Selectable)
Lens Mount: C Mount
White Balance: Auto / Manual / One-shot
Video Output: USB 2.0 High Speed
Shock and Vibration: Vibration: 10G (20 to 200Hz)
Shock: 70G (3 Directions, 3 Times Each)
Power:
Input Voltage
+5 V through USB port
Consumption
< 500mA
Temperature:
Operating
0°C ~ 40°C (32F° ~ 104°F)
Storage
-30°C ~ 65°C (-29°C ~ 149°C)
Dimensions: 51 (W) x 51 (H) x 44.3 (D) mm (2” x 2” x 1.74”)
Weight:  Approximately 145g (55.114oz)
Product Videos N/A
