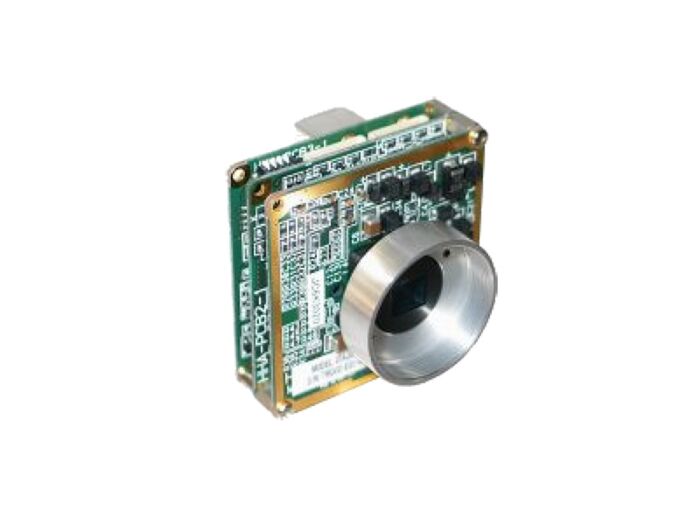

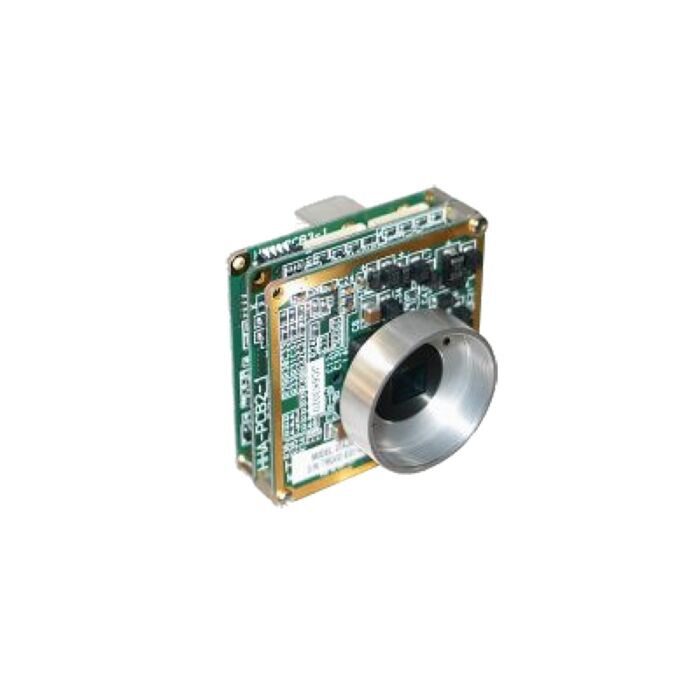

  • Sentech STC-TB33USB-B Machine Vision Camera Progressive Scan Board Cameras Image

Sentech STC-TB33USB-B Machine Vision Camera Progressive Scan Board Cameras

Quick Overview

The STC-TB33USB-B is a compact, progressive scan, VGA, USB 2.0 camera with a 1/3" monochrome CCD, featuring 59.94fps, image capture, digital zoom and a feature-rich user based menu set up and control. The STC-TB33USB-B is available with a top or straight connection and the option of CS-Mount and 5 lens options. Sentech SDK available as well as Direct X driver.
Overview

The STC-TB33USB-B is a compact, progressive scan, VGA, USB 2.0 camera with a 1/3" monochrome CCD, featuring 59.94fps, image capture, digital zoom and a feature-rich user based menu set up and control. The STC-TB33USB-B is available with a top or straight connection and the option of CS-Mount and 5 lens options. Sentech SDK available as well as Direct X driver.

Specifications
Specifications
Signal Format VGA Monochrome
Image Sensor: 1/3” CCD
Minimum Frame Rate:
Full Scan
59.94 fps
1/2 Partial Scan
120.57 fps
1/4 Partial Scan
242.07 fps
Total Picture Element: 692 (H) x 504 (V)
Effective Picture Element: 659 (H) x 494 (V)
Active Picture Element:
Full Scan
640 (H) x 480 (V)
1/2 Partial Scan
640 (H) x 224 (V)
1/4 Partial Scan
640 (H) x 80 (V)
Chip Size: 5.79 (H) x 4.89 (V) mm
Cell Size: 7.40 (H) x 7.40 (V) µm
Pixel Clock Frequency: 24.5454MHz
Scanning Method: Full, Partial scanning (1/2, 1/4)
Sync System: Internal Sync
Scanning System: Progressive
Shutter Speed: Auto / Manual (Software Selectable)
Minimum Illumination: 3.6 Lux at F1.2
Gain: Auto / Manual (Software Selectable)
Gamma: Manual (Software Selectable)
Lens Mount: CS Mount / Fixed Lens
White Balance: Auto / Manual / One-shot
Video Output: USB 2.0 High Speed
Shock and Vibration: Vibration: 10G (20 to 200Hz)
Shock: 70G (3 Directions, 3 Times Each)
Power:
Input Voltage
5 V through USB port
Consumption
< 500mA
Temperature:
Operating
0°C ~ 40°C (32F° ~ 104°F)
Storage
-30°C ~ 65°C (-29°C ~ 149°C)
Dimensions: 45 (W) x 45 (H) x Variable (D) mm
(1.771” x 1.771” x Variable)
Weight:  Approximately 145g (55.114oz)
