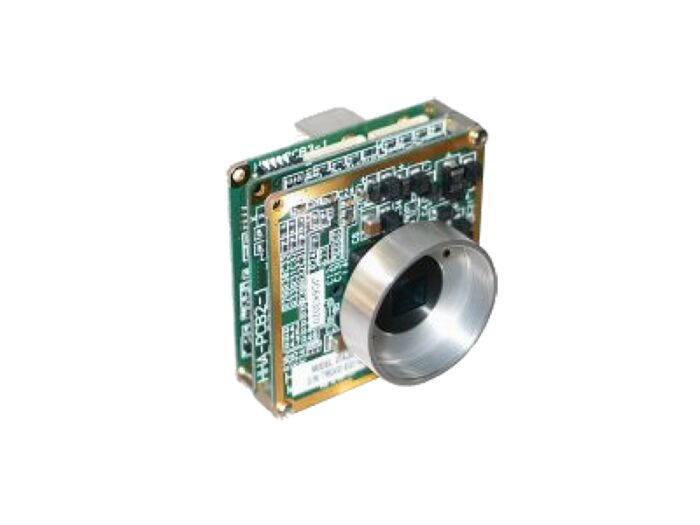

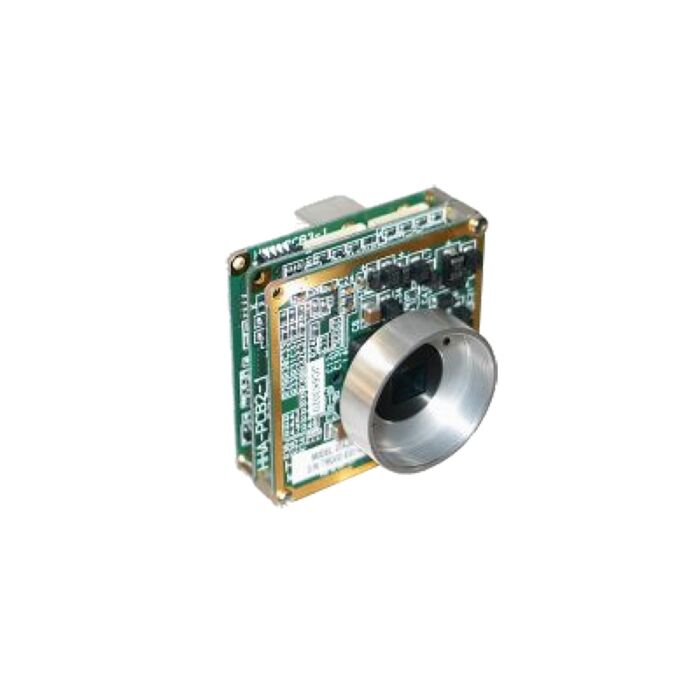

  • Sentech STC-TB152USB-B Machine Vision Camera Progressive Scan Monochrome Board Level Cameras Image

Sentech STC-TB152USB-B Machine Vision Camera Progressive Scan Monochrome Board Level Cameras

Quick Overview

The STC-TB152USB is a compact, progressive scan, SXGA, USB cameras with a 1/2" monochrome CCD, featuring 19fps (SXGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.
Overview

The STC-TB152USB is a compact, progressive scan, SXGA, USB cameras with a 1/2" monochrome CCD, featuring 19fps (SXGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.

Specifications
Specifications
Signal Format SXGA Monochrome
Image Sensor: 1/2” CCD
Minimum Frame Rate:
Full Scan
19.26 fps
1/2 Partial Scan
38.52 fps
1/4 Partial Scan
77.04 fps
Total Picture Element: 1434(H) x 1050(V)
Effective Picture Element: 1392(H) x 1040(V)
Active Picture Element:
Full Scan
1280(H) x 1024(V)
1/2 Partial Scan
1280(H) x 476(V)
1/4 Partial Scan
1280(H) x 184(V)
Chip Size: 7.60 (H) x 6.20 (V) mm
Cell Size: 4.65 (H) x 4.65 (V) µm
Pixel Clock Frequency: 36.818MHz
Scanning Method: Full, Partial scanning (1/2, 1/4), Variable
Sync System: Internal Sync
Scanning System: Progressive
Shutter Speed: Auto / Manual (Software Selectable)
Minimum Illumination: Lux at F1.2
Gain: Auto / Manual (Software Selectable)
Gamma: Manual (Software Selectable)
Lens Mount: C Mount
White Balance: Auto / Manual / One-shot
Video Output: USB 2.0 High Speed
Shock and Vibration: Vibration: 10G (20 to 200Hz)
Shock: 70G (3 Directions, 3 Times Each)
Power:
Input Voltage
+5 V through USB port
Consumption
< 500mA
Temperature:
Operating
0°C ~ 40°C (32F° ~ 104°F)
Storage
-30°C ~ 65°C (-29°C ~ 149°C)
Dimensions: 51 (W) x 51 (H) x 44.3 (D) mm (2” x 2” x 1.74”)
Weight:  Approximately 145g (55.114oz)
