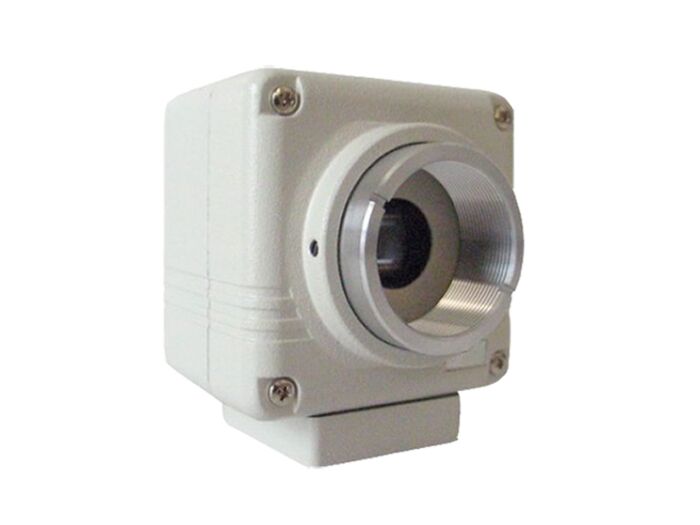

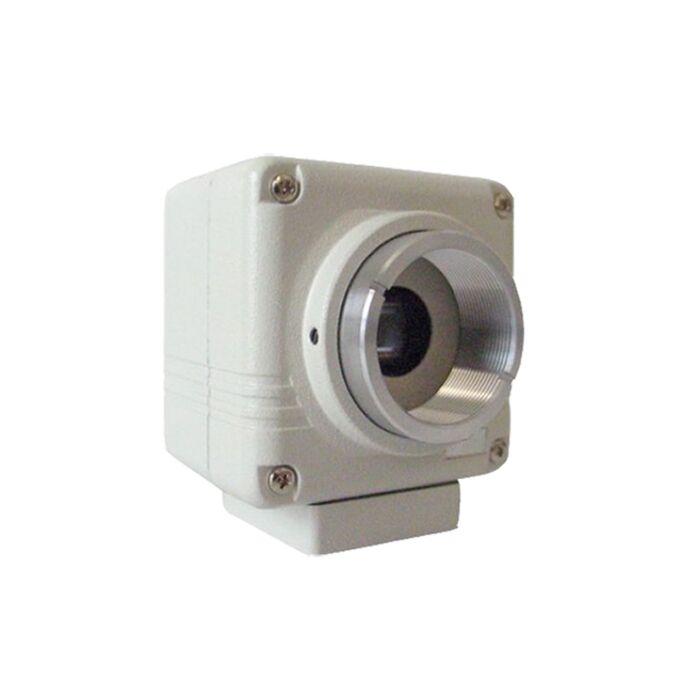

Omron STC-TB152USB-A Machine Vision Camera Progressive Scan Monochrome Cased Cameras
The STC-TB152USB is a compact, progressive scan, SXGA, USB cameras with a 1/2" Monochrome CCD, featuring 19fps (SXGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software
SKU
STC-TB152USB-A
The STC-TB152USB is a compact, progressive scan, SXGA, USB cameras with a 1/2" Monochrome CCD, featuring 19fps (SXGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software
| Specifications | ||
| Signal Format | SXGA Monochrome | |
| Image Sensor: | 1/2” CCD | |
| Minimum Frame Rate: | ||
|
Full Scan
|
19.26 fps | |
|
1/2 Partial Scan
|
38.52 fps | |
|
1/4 Partial Scan
|
77.04 fps | |
| Total Picture Element: | 1434(H) x 1050(V) | |
| Effective Picture Element: | 1392(H) x 1040(V) | |
| Active Picture Element: | ||
|
Full Scan
|
1280(H) x 1024(V) | |
|
1/2 Partial Scan
|
1280(H) x 476(V) | |
|
1/4 Partial Scan
|
1280(H) x 184(V) | |
| Chip Size: | 7.60 (H) x 6.20 (V) mm | |
| Cell Size: | 4.65 (H) x 4.65 (V) µm | |
| Pixel Clock Frequency: | 36.818MHz | |
| Scanning Method: | Full, Partial scanning (1/2, 1/4), Variable | |
| Sync System: | Internal Sync | |
| Scanning System: | Progressive | |
| Shutter Speed: | Auto / Manual (Software Selectable) | |
| Minimum Illumination: | Lux at F1.2 | |
| Gain: | Auto / Manual (Software Selectable) | |
| Gamma: | Manual (Software Selectable) | |
| Lens Mount: | C Mount | |
| White Balance: | Auto / Manual / One-shot | |
| Video Output: | USB 2.0 High Speed | |
| Shock and Vibration: | Vibration: 10G (20 to 200Hz) Shock: 70G (3 Directions, 3 Times Each) |
|
| Power: | ||
|
Input Voltage
|
+5 V through USB port | |
|
Consumption
|
< 500mA | |
| Temperature: | ||
|
Operating
|
0°C ~ 40°C (32F° ~ 104°F) | |
|
Storage
|
-30°C ~ 65°C (-29°C ~ 149°C) | |
| Dimensions: | 51 (W) x 51 (H) x 44.3 (D) mm (2” x 2” x 1.74”) | |
| Weight: | Approximately 145g (55.114oz) | |
