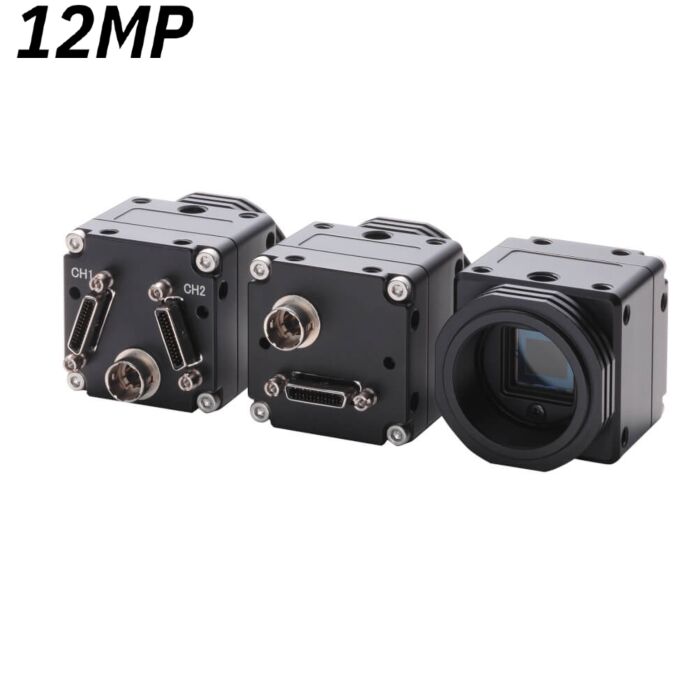

  • Sentech STC-SPC123BPCL Image # 1

Sentech STC-SPC123BPCL (4096x3000 : IMX253 Sensor) PoCL Cameralink Color Camera

Quick Overview

1.1" 12.3 Mega pixels Progressive Color CMOS, 66.99 fps, 3.45 (H) μm x 3.45 (V) μm.
Overview

The Sentech High-Speed CMOS 12M model added to Camera Link series, with the Sony Pregius sensor that delivers high quality images. The Global Shutter sensor captures motion rolling artifacts and the camera is Power-Over-Camera-Link(PoCL) compliant or via external power supply.


Features:

  • High-Speed CMOS 12M model added to Camera Link series
  • Sony Pregius sensor delivers high quality images
  • Global Shutter sensor captures motion rolling artifacts
  • Power-Over-Camera-Link (PoCL) compliant or via external power supply

  • Applications:

  • Traffic/Transportation Applications
  • Inspection
  • Security
  • Surveillance
  • Specifications
    Image Sensor 1/1" 12.3 MP Progressive Color CMOS (SONY: IMX253)
    Effective Picture Resolution

    8TAP / 4TAP / 2TAP: 4,096 (H) x 3,000 (V)
    3TAP: 4,095 (H) x 3,000 (V)
    10TAP: 4,090 (H) x 3,000 (V)

    Cell Size

    3.45 (H) μ m x 3.45 (V) μm

    Sync System Free-run (continous) / External Trigger (hardware / software)
    Maximum Frame Rate (at full resolution) *1 10TAP Output: 66.99 fps
    8TAP Output: 53.65 fps
    4TAP Outout: 26.88 fps
    3TAP Output: 15.02 fps
    2TAP Output: 13.47 fps
    ADC Bits 12 bits
    Video Output 8 / 10 / 12 bits
    Camera Link Data Output *2 Deca / Full / Medium / Base Configuration
    Camera Link TAP Configuration

    10TAP / 8TAP  / 4TAP / 3TAP / 2TAP

    Camera Link Clock Speed *3 3TAP Output: 66 / 33 MHz
    2TAP, 4TAP, 8TAP, 10TAP Output: 84.857 / 66 / 33 MHz
    Noise Level (Gain 0 dB) 8bits Output: 8TAP / 4TAP / 3TAP / 2TAP: Less than 3 LSBs / 10TAP: Less than 6 LSBs
    10bits Output: Less than 12 LSBs
    12bits Output: Less than 48 LSBs
    Sensitivity *5 8TAP / 4TAP / 3TAP / 2TAP: 1160 Lux
    10TAP: 270 Lux (F5.6, 1/30s, 5100K, Video level 100%)
    Exposure Time (All TAP common)

    1 μseconds to 16.777 seconds

    Gain
    Black Level *4 8bits Output: 0 to 63 digits
    10bits Output: 0 to 255 digits
    12bits Output: 0 to 1023 digits
    White Balance Gain -40 dB to 12 dB
    ROI
