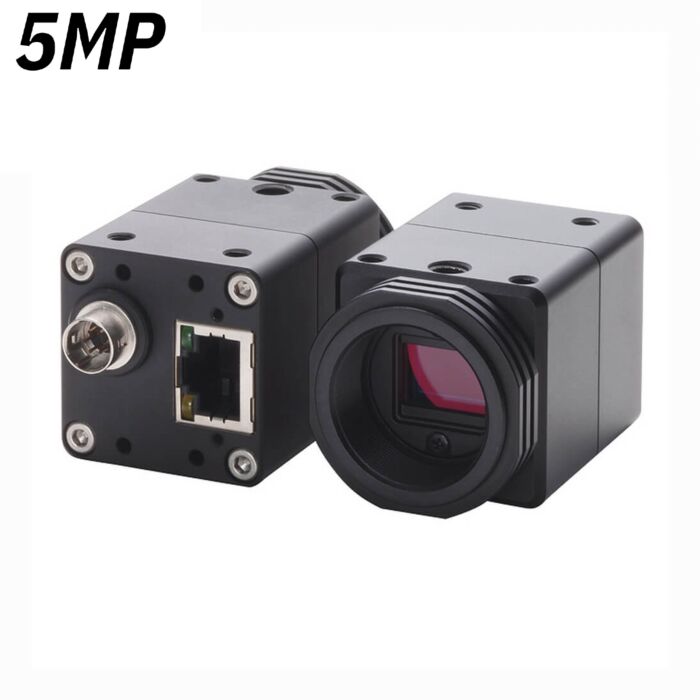

  • Sentech STC-SCS500POE Image 1

Sentech STC-SCS500POE (2448x2048 : IMX264 Sensor) GigE Vision, CMOS, 5.0 MP, Color Camera

Quick Overview

Sentech is releasing a brand new GigE Vision, 5.0 MP color GigE Vision camera. The STC-SCS500POE features IMX264 5MP global shutter sensor with 35fps. Utilizing CMOS Global Shutter, the STC-SCS500POE is capable of capturing moving objects without any motion blur. By utilizing the GigE Vision interface, speed and power have never been easier to use.
Overview

Sentech is releasing a brand new GigE Vision, 5.0 MP color GigE Vision camera. The STC-SCS500POE features IMX264 5MP global shutter sensor with 35fps. Utilizing CMOS Global Shutter, the STC-SCS500POE is capable of capturing moving objects without any motion blur. By utilizing the GigE Vision interface, speed and power have never been easier to use.

Features:

  • 2/3” Color Progressive CMOS
  • Sony CMOS Sensor
  • 5.0 MP Resolution
  • Global Shutter
  • Specifications
    Image Sensor 2/3” 5.0M color progressive CMOS (Sony: IMX264)
    Shutter Type Global
    Active Picture Element 2448 (H) x 2048 (V)
    Cell Size 3.45 (H) x 3.45 (V) µm
    Scanning System Progressive
    Scanning Mode Full Scanning (Full Resolution) / ROI
    Frame Rate 8bit:33.3 fps、10bit:16.6fps、10bitPacked:22.2fps、 12bit:16.6fps、12bitPacked:22.2fps; Maximum frame rate is 2083fps@264 x 4(8bit)
    ADC bit depth 12 bit
    Video Output Format Mono 8, Mono 10, Mono 10 Packed, Mono 12, Mono 12 Packed
    Noise Level -
    -@8Bit Output ≤ 3 Digit (Gain 0 dB)
    -@10bit Output ≤ 12 Digit (Gain 0 dB)
    -@12bit Output <= 48 Digit (Gain 0 dB)
    Sensitivity 300 Lux
    ALC Auto shutter / Auto gain (AGC) / OFF (Default: Auto shutter OFF, AGC OFF)
    Electronic Shutter 30 useconds to 16,777,215 useconds (8bit) 35 useconds to 16,777,215 useconds (10bit,12bit)
    Gain -
    -Analog (Gain) 0 to 20.8 dB (Default: 0dB)
    -Digital (Gain) 0 to 6 dB (Default: 0dB)
    ROI (AOI) Horizontal: 264 to 2048 pixels / Vertical: 4 to 1536 pixels (Default: 2048 x 1536); Adjustable steps for the image size: 8 pixels in horizontal direction and 2 lines in vertical direction; Adjustable steps for the offset: 8 pixels in horizontal direction and 2 lines in vertical direction
    Gamma Gamma 1.0 or uploadable gamma table (Default:1.0)
    Binning Not Supported
    Decimation Individual x2 Horizontal, Vertical Decimation
    Mirror Image Horizontal / Vertical / Horizontal and Vertical / OFF
    Pixel Blemish Correction Up to 64 pixels (Default: ON)
    White Balance N/A
    Operational Mode Edge preset trigger / Pulse width trigger(more than 13.3333uS(8bit), 17.77778uS(10bit,12bit))
    Communication UART Communication through Ethernet port
    Interface IEEE802.3af CLASS2 (1000BASE-T)
    Protocol GigE Vision® 1.2 and GenICam™ Standard Version 2.1 (SFNC 1.4)
    I/O One opt-isolated input and two open collector outputs
    Power -
    -Input Voltage + 10.8 ~ 26.4 VDC
    -Consumption (Max/Default) +12V: 2.9 W, 24V:3.3 PoE: 3.5 W
    Dimensions 35 (W) x 35 (H) x 53.7 (D) mm (excluding connectors)
    Optical Filter IR cut filter
    Optical Center Accuracy  Positional accuracy in Horizontal and Vertical directions:: ±0.3 mm Rotational accuracy of Horizontal and Vertical: ±2.0 deg.
    Material Aluminum Alloy(AC)
    Lens Mount C Mount
    Connections RJ45 connector Power- I/O connector: HR10A-7R-6PB (Hirose) or equivalent
    Camera Mount Screws  Two 1/4'' Tripod screw holes (one on each top and bottom plate) ; Sixteen M4 screw holes (Four on each top, bottom and both side plate)
    Weight Approx. 100g
    Operating Temperature -
    -Minimum  Environmental Temperature: 0 deg. ºC
    -Maximum Camera housing temperature (top plate) shall not exceed 60⁰C (This corresponds to an environmental temperature of approximately 43⁰C)
    Storage Temperature Environmental Temperature: -20°C to 65°C
    Storage Humidity Less than 85%
    Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each
    Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
    Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
    RoHS RoHS Compliant
