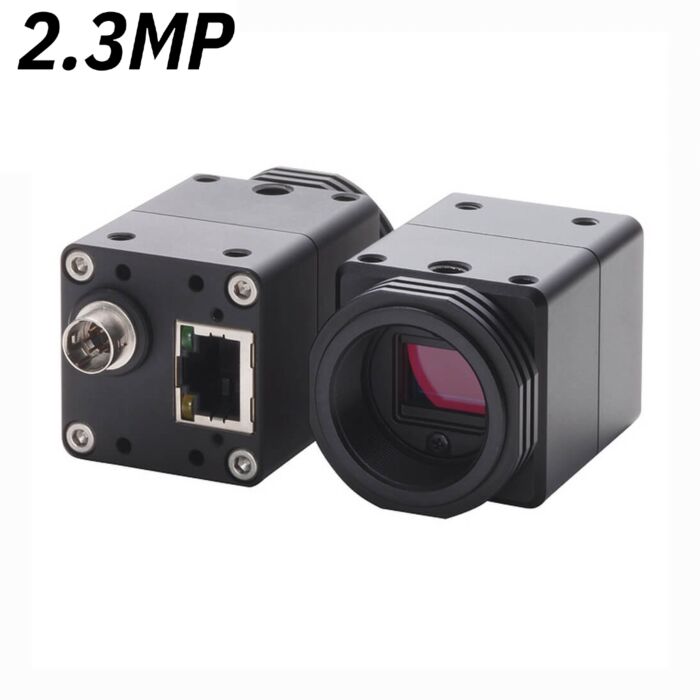

Omron STC-SCS231POE (STCSCS231POE) 2.3MP GigE, Color Camera (CMOS Sensor: Sony IMX174)

1/1.2" 2.3 MP Monochrome Progressive CMOS, 41.6 fps, 5.86 (H) x 5.86 (V) μm (CMOS Sensor: Sony IMX174)
SKU
STC-SCS231POE

Omron/Sentech is releasing a brand new GigE Vision, 2.3 MP color GigE Vision camera. The STC-SCS231POE features 41.6 FPS, and a dazzling 2.3 MP resolution. Utilizing CMOS Global Shutter, the STC-SCS231POE is capable of capturing moving objects without any motion blur. By utilizing the GigE Vision interface, speed and power have never been easier to use.

Features:

  • 1/1.2" Color Progressive CMOS
  • Sony CMOS Sensor
  • 2.3 MP Resolution
  • Global Shutter


Applications:

  • Traffic/Transportation Applications
  • Inspection
  • Security
  • Surveillance
Image Sensor 1/1.2" 2.35 MP Color Progressive CMOS (SONY: IMX174)
Active Picture Element 1920 (H) x 1200 (V)
Chip Size 5.59 (H) x 4.68 (V) mm
Scanning System Progressive
Scanning Mode Full Scanning (Full resolution) / ROI
Frame Rate 8bit,10bit : 41.6 fps (full resolution), Maximum frame rate 1322@16 x 2 12bit : 32.4 fps (full resolution), Maximum frame rate 1030@16 x 2
ADC bit depth 12bit, 10bit
Video Output Format BGR8bit, RAW8bit/10bit/12bit, BayerRG10Packed/12Packed
Noise Level -
- @ 8 Bit Output ≤ 1.5 Digit (Gain 0 dB)
- @ 10 Bit Output ≤ 6 Digit (Gain 0 dB)
- @ 12 Bit Output ≤ 24 Digit (Gain 0 dB)
Sensitivity 1120 Lux
ALC Auto shutter / Auto gain (AGC) / Manual (Default: Auto shutter OFF, AGC OFF)
Electronic Shutter 2bit: Edge preset trigger, Free run: 34 useconds to 16,777,215 useconds; Pulse width trigger: 25 useconds to 16,777,215 useconds; 8bit,10bit: Edge preset trigger, Free run: 39 useconds to 16,777,215 useconds; Pulse width trigger: 20 useconds to 16,777,215 useconds;
Gain -
- Analog 0 to 24 dB (Default: 0dB)
- Digital 0 to 6 dB (Default: 0dB)
ROI Horizontal: 16 to 1920 pixels / Vertical: 2 to 1200 pixels (Default: 1920 x 1200), Adjustable steps for the image size: 8 pixels in horizontal direction and 2 lines in vertical direction, Adjustable steps for the offset: 8 pixels in horizontal direction and 2 lines in vertical direction
Gamma Gamma 1.0 (Factory default) or uploadable gamma table
Binning Function Not supported
Decimation Function Individual x2 Horizontal, Vertical Decimation
Mirror Image Horizontal / Vertical / Horizontal and Vertical (Default: OFF)
ROI Function Variable ROI setting via the communication
White Balance Auto / Manual / Push to Set (Default: Manual)
Operational Mode Free-run / Edge-Preset Trigger / Pulse Width Trigger (Default: Free-run)
Interface IEEE802.3af CLASS2 (1000BASE-T)
Protocol GigE Vision® 1.2 and GenICam™ Standard Version 2.1 (SFNC 1.4)
I/O One opt-isolated input and two open collector outputs
Communication UART Communication through Ethernet port
Power -
- Input Voltage + 10.8 ~ 26.4 Vdc
- Consumption - Consumption (Max/Default)
Dimensions 35 (W) x 35 (H) x 53.4 (D) mm *
Optical Filter -
Optical Center Accuracy Positional Accuracy in H and V directions: +/- 0.3 mm, Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum Alloy (AC)
Lens Mount C-Mount
Connectors RJ45 connector Power- I/O connector: HR10A-7R-6PB (Hirose) or equivalent
Camera Mount Screws Two 1/2'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate)
Weight Approx. 100g
Operating Temperature -
- Minimum Environmental Temperature: -0°C
- Maximum Camera housing temperature (top plate) shall not exceed 60⁰C (This corresponds to an environmental temperature of approximately 40⁰C)
Storage Temperature Environmental Temperature: -20°C to 65°C
Storage Humidity < 85%
Vibration 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each
Shock Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each
Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
RoHS RoHS Compliant
