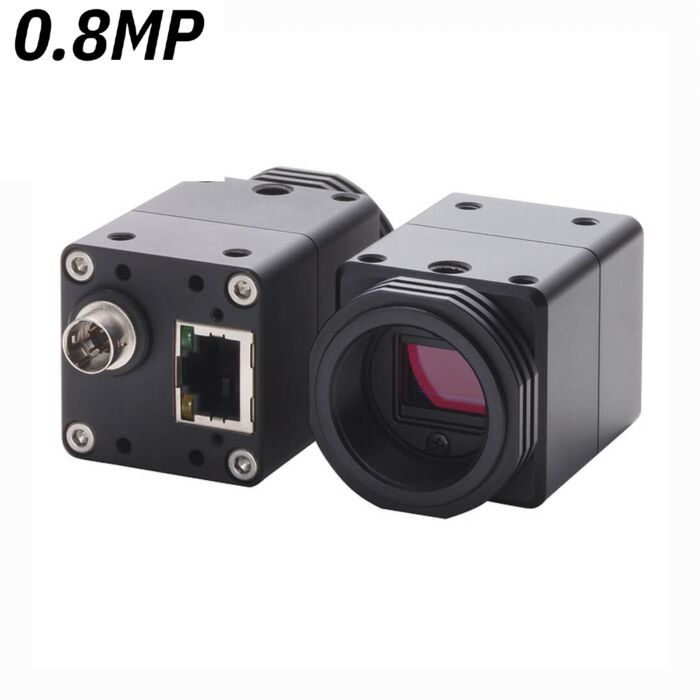

  • Sentech STC-SB83POE GigE Camera Image

Sentech STC-SB83POE GigE Camera

Quick Overview

1024 pixels x 768 pixels, 1/3" PS IT CCD, 37 fps, Power over Ethernet Gigabit Ethernet Camera. Available in Monochrome (Black & White)
Overview

The STC-SB83POE is part of Sentech's Brand New Power over Ethernet GigE camera series. It features a 1/3" monochrome XGA sensor, 36fps and communication over a 6 pin Hirose or Ethernet connector. The STC-SB83POE boasts a compact 35(w) x 35(H) x 55.9 (D) mm size, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoE series is available now at an extremely low cost.

  • User Programmable AOI
  • Power Over Ethernet
  • 0.8 Megapixel Resolution with 37 fps
Specifications
STC-SB83POE Specifications
Imager 1/3” interline XGA monochrome progressive CCD: ICX204AL
Total Picture Element 1077 (H) x 788 (V)
Active Picture Element XGA: 1024 (H) x 768 (V)
Chip Size 5.5 (H) x 4.92 (V) mm
Cell Size 4.65 (H) x 4.65 (V) um
Scanning System Progressive
Vertical Frequency (Frame Rate) 36.42113 Hz at full resolution; 0.44238 to 150.21358 Hz changeable via the communication; Maximum frame rate is dependent on the AOI setting; Maximum frame rate of the camera (150.21358 Hz) is 104 vertical resolution AOI setting.
Horizontal Frequency 28.9907 Hz
Pixel Frequency 36.818175 MHz
Noise Level
@ 8bit output
<= 3 Digit (Gain 0 dB)
@ 10bit output
<= 12 Digit (Gain 0 dB)
@ 12bit output
<= 48 Digit (gain 0 dB)
Minimum Scene Illumination 0.95 Lux at F1.2, 36.42113 Hz
Sync System Internal
Video Output Digital 8 ,10 ,12 bit Raw Data
Interface PoE: IEEE802.3af CLASS3 (1000BASE-T)
Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
Exposure Time Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited.
ALC Electronic iris and AGC (ON/OFF)
Gain 0 to 20.4 dB
Gamma Gamma 1.0 (Factory default) or downloadable gamma table
AOI Function Programmable AOI setting via the communication
Smear Reduction Selectable ON/OFF via the communication
Color Interpolation N/A
White Balance Function N/A
Trigger Mode Edge preset trigger, pulse width trigger (unlimited exposure time)
Communication UART communication through Ethernet Port
I/Os One opt isolated input and two open collector outputs
Power
Input Voltage
+10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized)
Consumption
12V: 2.4W / 2.3W, PoE: 2.6W / 2.5W
Dimensions 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors
Optical Filter No filter
Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum (AC)
Lens Mount C Mount
Connectors RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent
Camera Mount Screws Two ¼” Tripod screw holes (one each on top and bottom plate); Twelve M4 screw holes (four each on top, bottom, and two each on both side plates)
Weight Approx. 130
Operating Temperature
Minimum
Environmental Temperature: -5 deg. C
Maximum
Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C
Storage Temperature Environmental Temperature: -30 to 65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min/cycle), acceleration 10G, 3 directions 30 min. each
Shock Acceleration 38G, half amplitude 6ms, 3 directions, 3 times each
Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
RoHS RoHS compliant
