Sentech STC-R920 Series Machine Vision Camera 2:1 Interlace Board Cameras

Quick Overview

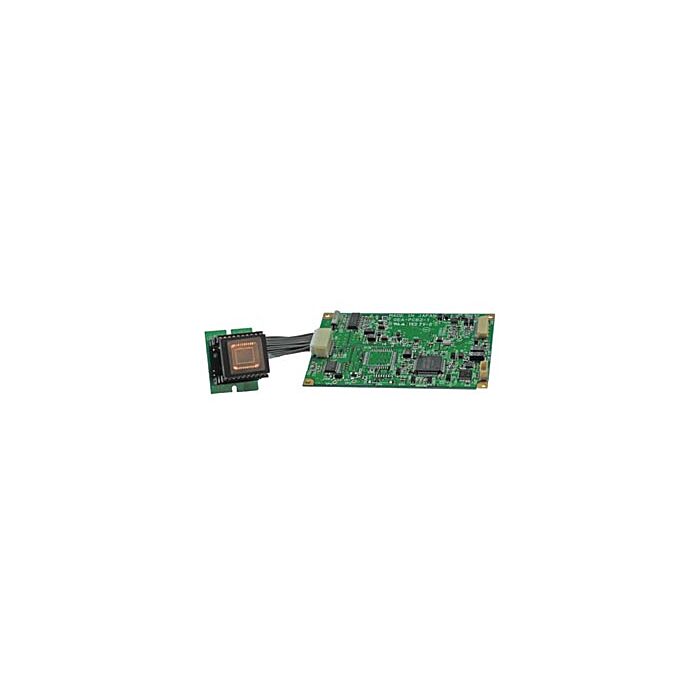

The STC-R920M is a board level monochrome DSP camera specifically developed for silicon wafer inspection. This camera features a 10 Bit DSP which is programmable by Sentech for your application. The STC-R920M is a single compact board, slightly larger than a credit card, with a remote head CCD. The CCD board is 25 (W) x 20 (H) mm with a 67mm (2.7") wire harness seperating it from the CCU board.
Overview

The STC-R920M is a board level monochrome DSP camera specifically developed for silicon wafer inspection. This camera features a 10 Bit DSP which is programmable by Sentech for your application. The STC-R920M is a single compact board, slightly larger than a credit card, with a remote head CCD. The CCD board is 25 (W) x 20 (H) mm with a 67mm (2.7") wire harness seperating it from the CCU board.

Specifications
 Specifications
 Image Sensor: 1/2" Monochrome IT CCD
 Effective Picture Element: 768 (H) x 582 (V)
 CCD Size: 7.40 (H)x 5.95 (V) mm
 Pixel Cell Size: 8.4 (H) x 9.8 (V) µm
 Scanning Area: 6.45 (H) x 4.84 (V) mm
 Pixel Clock Frequency: 14.318 MHz
 Horizontal Sync Frequency: 15.734 kHz
 Vertical Sync Frequency: 59.94 Hz
 Horizontal Resolution: 560 TV Lines
 Vertical Resolution: Field: 350 TV Lines
Frame: 485 TV Lines
 DSP (Sentech Programmable): Mirror Image
Aperture Control (horizontal and vertical)
Analog Gain COntrol (AGC) 8-22dB
Digital Gain Control (DGC) 0-14dB
AGC/Fixed Gain (Selectable)
Video Setup Level
 Scanning System: 2:1 Interlace
 Video Output: 1.0 Vp-p, 75W
 S/N Ratio: 56 dB (Gain Minimum)
 Gamma: 1.0 (Sentech Programmable)
 Electronic Shutter: 1/30 (EIA) Default Setting
 Gain: Sentech Programmable
 Minimum Illumination: 0.05 Lux @ F1.2, 50 IRE
 Operating Voltage: 12V DC
 Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
 Lens Mount: N/A
 Power Consumption: 147mA
 Connections: 10 pin wire harness (Poer, Sync, Video)
 Weight: 23g (.84 oz.)
 Dimensions: Main Board: 50 (W) x 11.2 (H) x 75 (D) mm (2" x .44" x 3")
CCD Board: 25 (W) x 20 (H) x 9 (D) mm (1" x .8" x .36")
