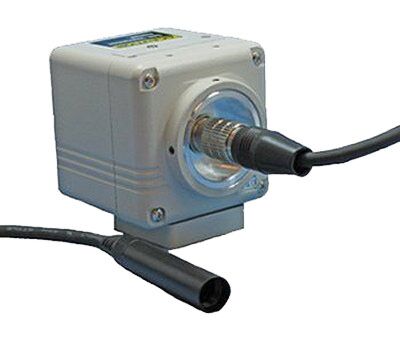

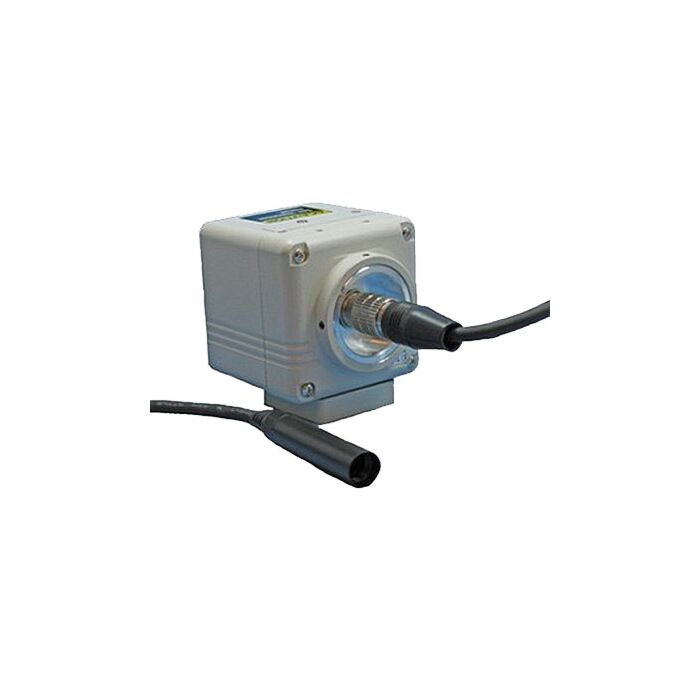

Omron STC-R640 2:1 Interlace, NTSC, housing cameras with remote head
In the STC-R640 cameras is 1/4 "NTSC-housing cameras with remote controlled head. The camera control unit (CCU) is a compact 51 (W) x 51 (H) x 55.5 (T) mm, and the CCD board has the dimensions of 22 (L) x 8 (D) mm. STC-R640 cameras are offered without a connecting cable between the CCU and the CCD board.
SKU
STC-R640 Camera Set
Features:
- NTSC, 1/4 "color CCD, 480 TVL
- Housing, composite and Y / C video output
- Configurable flexibility
|
STC-R640 Specifications |
|
|
|
STC-R640 |
| Image Sensor |
1/4" color CCD: ICX228AK |
| Horizontal Resolution |
480 TV Lines |
| Signal Format | NTSC |
| Scanning Method | 2:1 interlace |
| Refresh Rate | 30 fps |
| Effective Picture Elements | 768 (H) x 494 (V) |
| Horizontal Frequency | 15,734 kHz |
| Vertical Frequency | 59.94 Hz |
| Reinforcement | AGC / Manual |
| S/N Ratio | > 48 dB (AGC: OFF) |
| Gamma | 0:45 (default), DSP Adjustable (32 steps) |
| Sync |
Internal / External VS (CT models); HD / VD (CC models) |
| Minimum Illumination | 1.99 [email protected], 50 IRE |
| White Balance | Manual / Full Auto / Push-to-Set (CC and CT models only) |
| Serial Interface | RS-232C Controllable (for DSP) |
| Electronic Shutter | 1/60 ~ 1/10,000 (8 steps) |
| Electronic Iris | 1/60 ~ 1/10,000 |
| DSP | 10-bit, user-programmable |
| Video Output | Composite and Y/C (available on select models) |
| Video Output Level | 1.0 Vp-p 75 Ω |
| Y/C Output Level |
0.7 Vp-p 75 Ω
|
| Lens Mount | Micro and C-Mount (with Adapter) |
| Input Voltage | +12 Vdc ± 10% |
| Power Consumption (amps) | 2.64 W; 220 mA |
| Operating | -10 ~ 45 deg. C |
| Dimensions | - |
| - Case camera CCU | 51 (W) x 51 (H) x 55.5 (D) |
| - Straight Finished Head | Ø 10mm Ø (0.39" diameter) |
| Weight | Cased Camera CCU: 190g |
