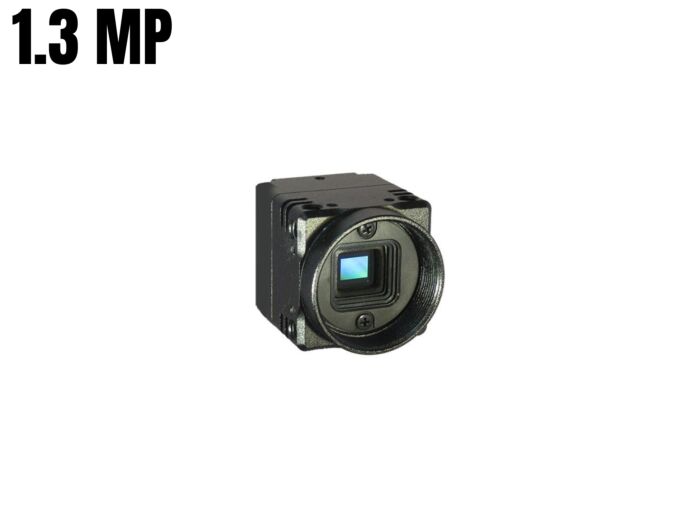

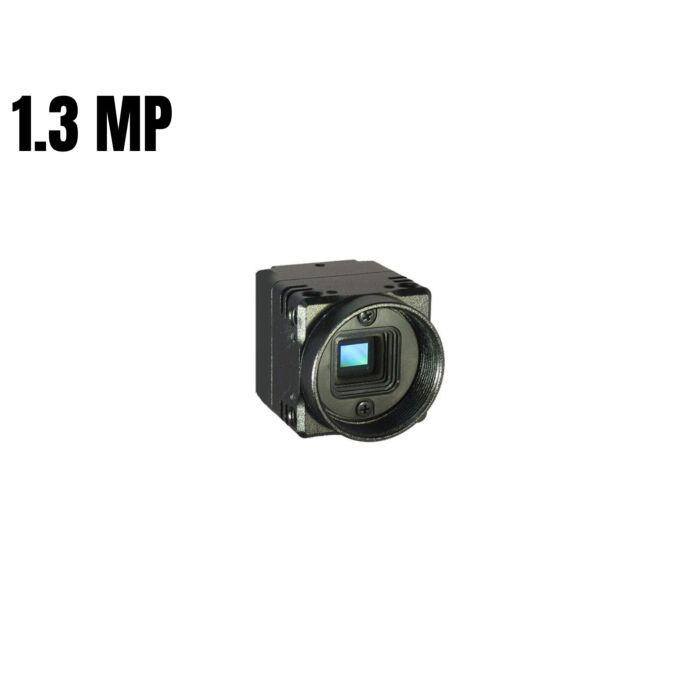

Sentech STC-MCE132U3V 1.3MP (60FPS) USB3, Color Camera

Quick Overview

The STC-MCE132U3V is a 1.3 megapixel resolution, 60 fps, color camera. The STC-MCE132U3V is compatible with all USB 3 Vision products, and features the popular e2v 1/1.8" sensor.
Overview
USB 3 Vision Compliant
1/1.8" CMOS Sensor
1.3 MP Color Resolution
Specifications

Name

Specifications

Image Sensor
1/1.8" 1.3M pixel Color CMOS  (e2V: EV76C560ACT-EQV)
Active Picture Element
1280(H) x 1024(V)
Cell Size
5.3 (H) x 5.3 (V) µm
Scanning System
Progressive
Shutter Type
Rolling Shutter / Global Shutter
Scanning Method
Full Scanning, Variable AOI (Horizontal and Vertical)
Maximum Frame Rate
1.3M: 1280 x 1024 : 60fps (Raw8/10 bit), 55fps (RGB8 only on color model) *Frame rate will drop if connected with the USB2.0 port
Sync System
Internal
Video Output
RGB8, RAWInternal8bit/10bit,
S/N Ratio
Less than 3 digit(Gain 0 dB)
Minimum Scene Illumination
28.14lux at F1.2
ALC
Auto Shutter / Auto Gain (Default: OFF)
Electronic Shutter
Preset・Free-run Mode: Exposure Time 16 usec to 0.97 sec (in full scanning mode) Preset・Trigger Mode: Exposure Time 16 usec to 0.97 sec (in full scanning mode)
- Analog
0 to 11.97dB (Default: 0dB)
- Digital
x0.00 to x7.98 (Default: x0.00)
Offset (Digital)
0 to 255 digit on 12bit(Default: 168)
AOI Function
AOI (Horizontal:32 to 1280 pixels / Vertical:32 to 1024 Line)(Default: 1280 x 1024) Adjustable Steps: 4 pixels in horizontal direction and 4 lines in vertical direction
Binning
Horizontal 1/2,   Vertical 1/2, (Default: 1/1) *Pixels in the horizontal and vertical direction can be added to increase the brightness. Available on “Horizontal and Vertical”
Skipping
Horizontal 1/2, 1/4,  Vertical 1/2, 1/4 (Default: 1/1)
Mirror Image
Horizontal / Vertical / Horizontal and Vertical(Default: OFF)
Pixel Blemish Correction
Up to 32 pixels (Default: ON
White Balance
Auto / Manual/ One-shot (Default: Manual)
Operation Mode
Free-run / Edge-preset Trigger
Frame Memory
One Frame
Interface
USB3.0 Super speed (USB3.0 Micro B)
Input / Output
Two Inputs and Two Outputs
- Input Voltage
+5V(typ.) (Conform to USB Standard)
Dimensions
28 (W) x 28 (H) x 33.8 (D) mm *excluding the connectors
Lens Mount
CS Mount
Optical Filter
IR Cut Filter
Optical Center Accuracy
Positional accuracy in H and V directions: +/- 0.5 mm Rotational accuracy of H and V: +/- 0.35 deg.
Weight
Approximately 38 g
Interface Connector
USB Connector: USB3.0 MicroB type I/O Connector: HR10A-7R-6PB (Hirose) or equivalent
Operating Temperature
0 ~ +40℃
Storage Temperature
-30 ~+65℃
Vibration
20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each
Shock
Acceleration 38G, half amplitude 6ms, 3 directions 3 times each
Standard Compliancy
EMS: EN61000-6-2, EMI: EN55011
RoHS
RoHS Compliant
