Sentech STC-MC202USB UXGA Color Camera

Quick Overview

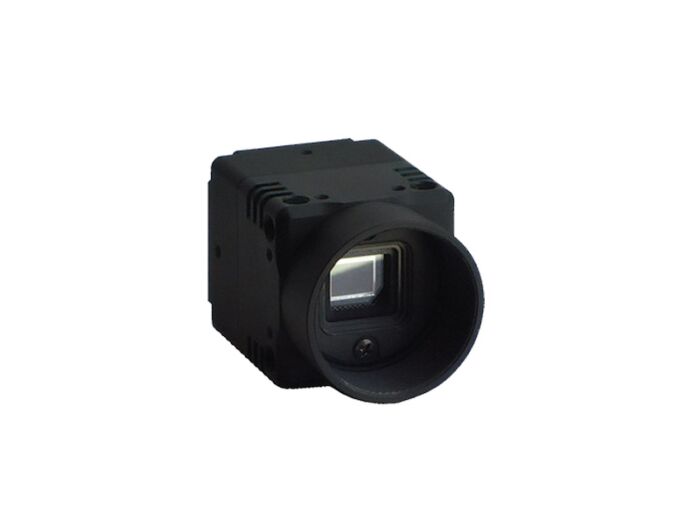

The STC-MC202USB is an ultra-compact, progressive scan, UXGA, USB camera with a 1/1.8” color CCD.

Availability: In stock

Additional Information

Overview

It features 15fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control.

1/1.8" CCD Image Sensor, UXGA (2 Megapixel)
Ultra-Compact Size
Hardware & Software Trigger
Specifications

Name

Specifications

Model No
STC-MC202USB
Image Sensor
1/1.8” Interline UXGA color progressive CCD: ICX274AQ (Sony)
Total Picture Element
1688 (H) x 1248 (V)
Effective Picture Element
1628 (H) x 1236 (V)
Chip Size
8.50 (H) x 6.80 (V) mm
Cell Size
4.40 (H) x 4.40 (V) µm
Scanning System
Progressive
Resolution
1600 (H) x 1200 (V) (Full scanning) 1600 (H) x 544 (V) (1/2 partial scanning) 1600 (H) x 208 (V) (1/4 partial scanning)
Scanning Methods
Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning
Maximum Frame Rate
-
- Full Scanning
15.32 fps (Normal) / 7.66 fps (1/2 clock) / 3.83 fps (1/4 clock)
- 1/2 Partial Scanning
30.63 fps (Normal) / 15.31 fps (1/2 clock) / 7.65 fps (1/4 clock)
- 1/4 Partial Scanning
61.27 fps (Normal) / 30.63 fps (1/2 clock) / 15.31 fps (1/4 clock)
Pixel Frequency
36.818 MHz (Normal) / 18.409 MHz (1/2 clock) / 9.20453 MHz (1/4 clock)
Video Output
8bit / 10bit / 12bit
Minimum Scene Illumination
7.7 Lux at F1.2
Sync System
Internal
Electronic Shutter
Auto / Manual (software selectable)
- Normal
1/36,818,18 to 1/15.32 seconds
- 1/2 Clock
1/18,409,091 to 1/7.66 seconds
- 1/4 Clock
1/9,204,545 to 1/3.83 seconds
Gain
Auto / Manual (software selectable)
Gamma
Manual (software selectable)
White Balance
Auto / Manual / One shot (software selectable)
Trigger Mode
Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable)
Input / Output
USB 2.0 High Speed
Power
-
- Input Voltage
+5 Vdc through USB connector (+4.4 to +5.25V)
- Consumption
< 450 mA
Dimensions
28 (W) x 28 (H) x 42 (D) mm (excluding connector)
Lens Mount
C mount
Weight
Approximately 45g
Interface Connector
USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent)
Temperature
-
- Operational
0 ~ 40 deg. C
- Storage
-30 ~ 65 deg. C
Vibration
20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
Shock
Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each
Standard Compliancy
EMS: En61000-6-2, EMI: EN61000-6-3 (Class B)
RoHS
RoHS Compliant
